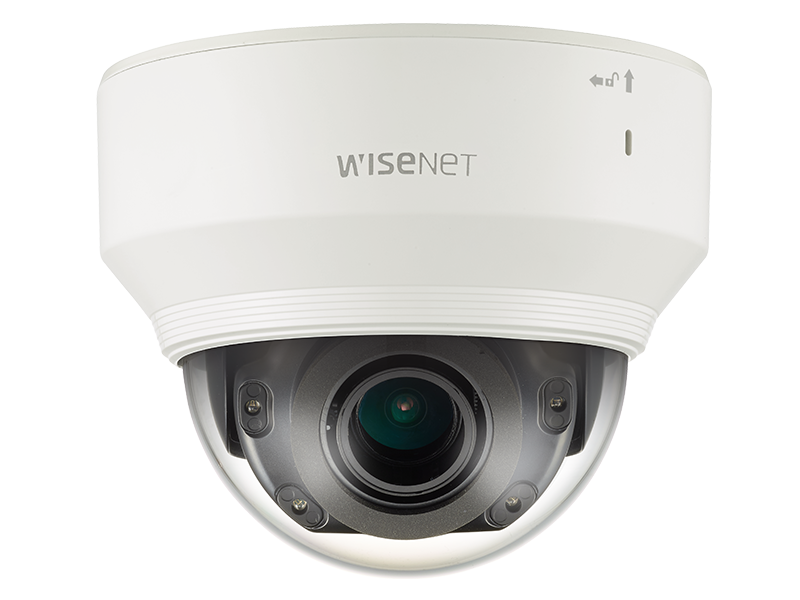

Hanwha - PND-9080R - 4K Network IR Dome Camera
Part number:
PND-9080R
Price:
The PND-9080R from Hanwha's Wisenet P Series Performance IP camera line is a 4K, 12MP indoor dome featuring Hanwha's WiseStream technology, triple codec H.265/H.264/MJPEG, motorized vari-focal 4.5~10mm lens, True D/N, True WDR (120dB), IR (30m), edge analytics, SD card slot (SD/SDHC/SDXC up to 128GB), digital auto tracking, Hallway view, IK08, supports PTZ handover function.
Features:
- Max. 12M (4000 x 3000) resolution
- Max. 20fps@12M, Max.30fps@8M
- 0.3Lux@F1.6 (Color), 0Lux (B/W : IR LED on)
- 4.5 ~ 10mm (2.2x) motorized varifocul lens
- H.265, H.264, MJPEG suppport
- Day & Night (ICR), WDR (120dB), Simple focus, P-Iris
- Motion detection, Defocus detection, Tampering
- SD/SDHC/SDXC memoty slot (Max, 128GB), NAS, Local PC support
- Hallway view (Rotate 90˚ / 270˚)
- WiseStream support, Digital auto tracking
- IK08, Bi-directional audio support
| Technical Specifications | |
| Video | |
| Imaging Device | 1/1.7” 12.4MP CMOS |
| Min. Illumination | Color: 0.3Lux(F1.6, 1/30sec), 0.01Lux(F1.6, 2sec) B/W: 0Lux(IR LED On) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 4.5~10mm(2.2x) motorized varifocal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | [4096x2160] H: 100.3˚(Wide)~45.6˚(Tele) / V: 49.7˚(Wide)~24.0˚(Tele) |
| [3840x2160] H: 92.3˚(Wide)~42.6˚(Tele) / V: 49.7˚(Wide)~24.0˚(Tele) | |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus, Manual |
| Lens Type | P iris |
| Pan / Tilt / Rotate |
| Pan / Tilt / Rotate Range | 0˚~354˚ / 0˚~67˚ / 0˚~355˚ |
| Operational |
| Camera Title | Displayed up to 60 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Defog | Support(built-in optical filter) |
| Motion Detection | 8ea, polygonal zones |
| Privacy Masking | 16ea, rectangular zones |
| - Color: Grey/Green/Red/Blue/Black/White | |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Fog detection, Motion detection, Digital auto tracking, Appear/Disappear, Enter/Exit, Tampering, Virtual line, Audio detection |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail |
| Notification via e-mail | |
| SD/SDHC/SDXC or NAS recording at event triggers | |
| Alarm output | |
| Audio In | Selectable(mic in/line in/built-in mic) |
| Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm | |
| Audio Out | Line out, Max.output level: 1Vrms |
| IR Viewable Length | 30m(98.42ft) |
| Network |
| Ethernet | RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | Manual(5ea area), WiseStreamⅠ |
| Bitrate Control | H.264/H.265: CBR or VBR |
| MJPEG: VBR | |
| Streaming | Unicast(15 users) / Multicast |
| Multiple streaming(Up to 3 profiles) | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) Login Authentication |
| Digest Login Authentication | |
| IP Address Filtering | |
| User access log | |
| 802.1X Authentication(EAP-TLS, EAP-LEAP) | |
| Application Programming Interface | ONVIF Profile S/G/Q |
| SUNAPI(HTTP API) | |
| SVNP | |
| Wisenet open platform | |
| Environmental & Electrical |
| Operating Temperature / Humidity | -30°C ~ +55°C(-22°F ~ +131°F) / Less than 90% RH |
| * Start up should be done at above -10°C (+14°F) | |
| Storage Temperature / Humidity | -40°C ~ +60°C(-40°F ~ +140°F) / Less than 90% RH |
| Certification | IK08 |
| Mechanical |
| Color / Material | Ivory / Plastic+Aluminum |
| Product dimensions / weight | Ø140.8x113.0mm(Ø5.54x4.45"), 610g(1.34 lb) |
