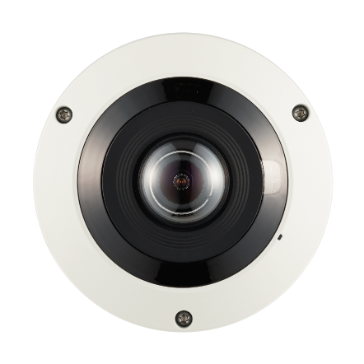

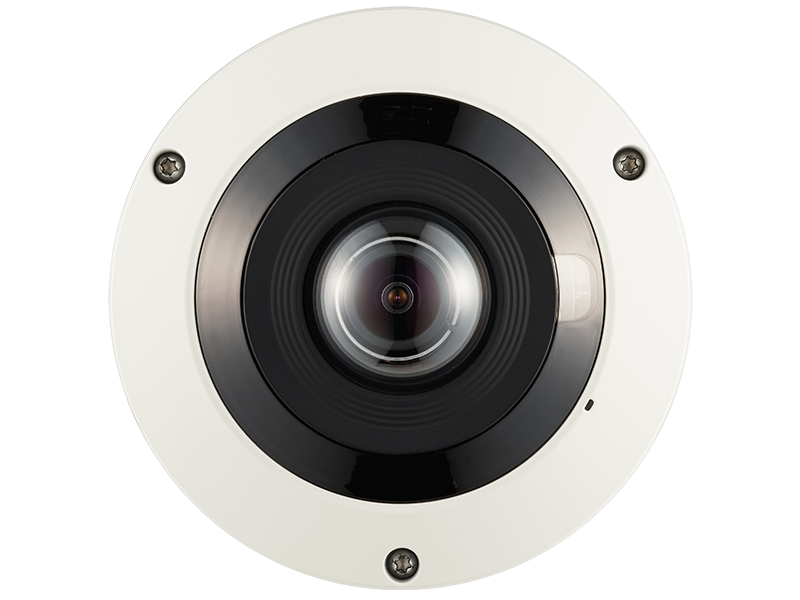

Hanwha - PNF-9010RVM - 12MP 360 Fisheye Camera
Part number:
PNF-9010RVM
Price:
The PNF-9010RVM is a 12MP/4K outdoor vandal, mobile-rated fisheye camera featuring Hanwha's WiseStream technology. Additional features include True D/N, triple codec H.265/H.264/MJPEG, people counting and heat map analytics, SD card slot (up to 128GB), 2-way audio, built-in mic, simple focus, PoE/DC dual power, IK10, IP66 and M12 connector. The PNF-9010RVM is ideal for situational awareness, and applications requiring a wide area of surveillance.
Features:
- 9MP @ 25fps
- 12MP @ 20fps
- Triple Codec H.265/H.264/MJPEG
- Simple Focus
- Wide Dynamic Range 120dB
- On-board Analytics
- IP66, IK10
- M12 Connector
| Technical Specifications | |
| Video | |
| Imaging Device | 1/1.7" 12M CMOS |
| Min. Illumination | Color: 0.3Lux(F2.2, 1/30sec) BW : 0Lux(IR LED on) |
| Video Out | CVBS : 1.0 Vp-p / 75Ω composite, 714x480(N), 702x576(P), for Installation |
| Lens | |
| Focal Length (Zoom Ratio) | 2.1mm fixed focal |
| Max. Aperture Ratio | F2.2 |
| Angular Field of View | H: 180° / V: 180° / D: 180° |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus |
| Operational |
| Camera Title | Displayed up to 60 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 8ea, polygonal zones |
| - Color: Grey/Green/Red/Blue/Black/White | |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker |
| Video Rotation | Flip, Mirror |
| Analytics | Defocus detection, Motion detection, Appear/Disappear, Enter/Exit, Tampering, Virtual line, Audio detection |
| Business Intelligence | People counting, Heatmap |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail |
| Notification via e-mail | |
| SD/SDHC/SDXC or NAS recording at event triggers | |
| Alarm output | |
| Audio In | Selectable(mic in/line in/built-in mic) |
| Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm | |
| Audio Out | Line out, Max.output level: 1Vrms |
| IR Viewable Length | 15m(49.21ft) |
| Network |
| Ethernet | M12 |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | Manual(5ea area), WiseStreamⅠ |
| Bitrate Control | H.264/H.265: CBR or VBR |
| MJPEG: VBR | |
| Streaming | Multiple streaming(Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) Login Authentication |
| Digest Login Authentication | |
| IP Address Filtering | |
| User access log | |
| 802.1X Authentication(EAP-TLS, EAP-LEAP) | |
| Application Programming Interface | ONVIF Profile S/G |
| SUNAPI(HTTP API) | |
| Wisenet open platform | |
| Environmental & Electrical |
| Operating Temperature / Humidity | -40°C ~ +55°C (-40°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| EN55011:2009+A1:2010, EN50581:2012, EN50121-3-2:2015, EN61000-4-2:2009, | |
| EN61000-4-3:2006+A2:2010, EN61000-4-4:2012, EN61000-4-5:2014, | |
| EN61000-4-6:2009 | |
| Mechanical |
| Color / Material | Ivory / Aluminum |
| Product dimensions / weight | Ø146x63.4mm(Ø5.75x2.5"), 815g(1.8 lb) |
