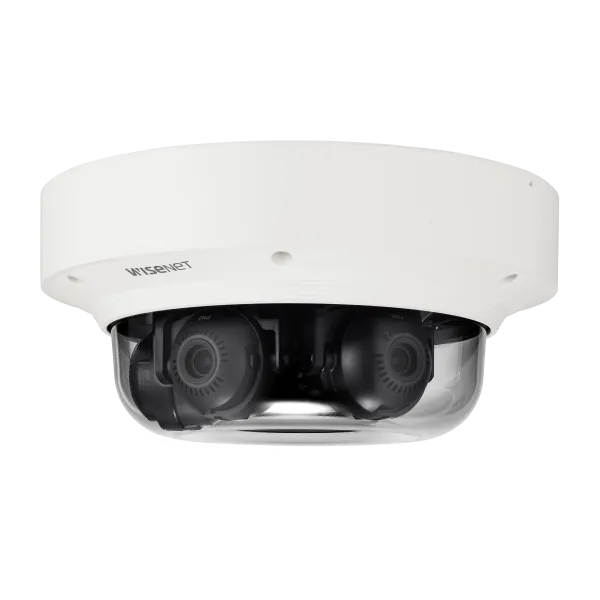

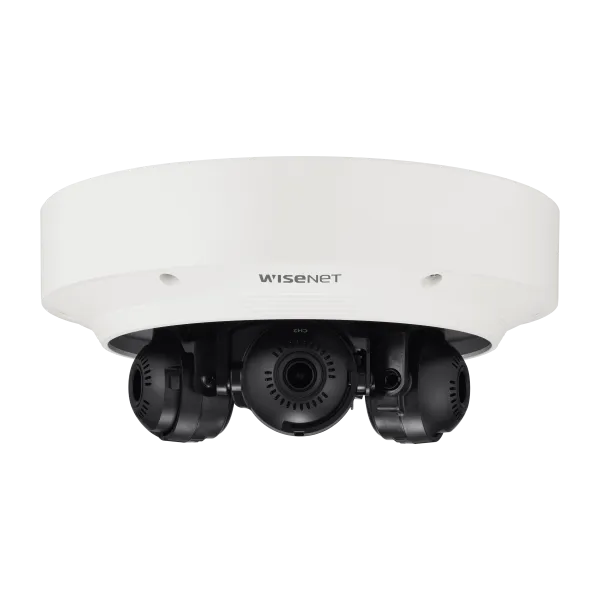

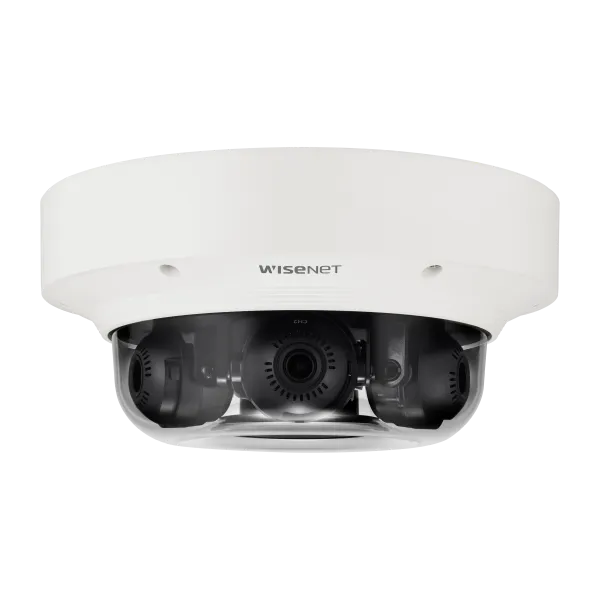

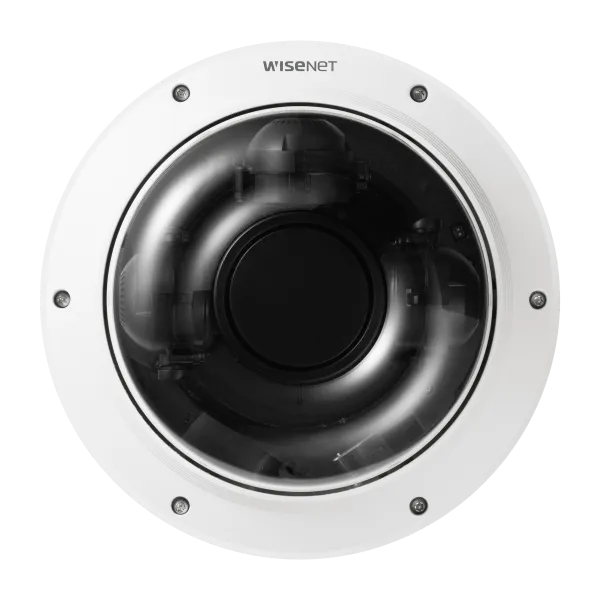

Powered by WN7, 2MP x 3CH @ 30FPS, multi directional camera, 3~6mm motorized varifocal lens, donut shape bubble, max 321º coverage, Triple codec H.264/265 MJPEG, WiseStream II, extreme WDR 150dB, defocus detection, video analytics, 2x microSD card, PoE+, IP66, IK10, NEMA4X, operating temp -40°C~+55°C
Features:
- Maximum 6MP @ 30fps, 2MP X 3 sensors using one IP address
- Motorized vari-focal 3.0~ 6mm (FOV: 107? ~ 56.3?)
- Triple codec: H.265, H.264 and MJPEG multiple streaming
- WiseStream II compression technology
- WDR 150dB @ 2MP @ 30fps
- Defocus detection, Loitering, directional detection, tampering, motion detection, object enter or exit an area
- Hallway view supported for each sensor
- 2x microSD/SDHC/SDXC Memory Card slots
- Power: PoE+ (IEEE802.3at)
- IP66, IK10, NEMA4X
- Easy Gangbox mounting installation
Video
| Imaging Device | 1/2.8" CMOS x 3CH |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Maximum Framerate | H.265/H.264: Maximum 30fps MJPEG: Maximum 30fps |
| Minimum Illumination | Color: 0.04lux(F2.2, 1/30sec) BW: 0.004lux(F2.2, 1/30sec) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720x480 for installation |
Lens
| Focal Length (Zoom Ratio) | 3~6mm(2x) motorized varifocal |
| Maximum Aperture Ratio | F2.2(Wide)-F3.1(Tele) |
| Angular Field of View | H: 107˚(Wide)~56.3˚(Tele) / V: 57˚(Wide)~31.5˚(Tele) / D: 126˚(Wide)~64.3˚(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus |
| Lens Type | DC auto iris |
Operational
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | extreme WDR(150dB) |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones - Color: Grey, Green, Red, Blue, Black, White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway View*: 90˚ / 270˚ (*Note Hallway mode applies to all sensors) |
| Analytics | Defocus detection, Directional detection,Motion detection, Enter/Exit,Tampering, Virtual line |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC at event triggers, Handover |
Network
Ethernet
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) Device Certificate(Hanwha Techwin Root CA) |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) |
General
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 2 slot (Maximum 256Gb x 2) |
Environmental & Electrical
| Operating Temperature / Humidity | -40°C~+55°C(-40°F~+131°F) / Less than 95% RH(Non condensing) *Start up should be above at -35˚C |
| Storage Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / Less than 90% RH |
| Certification | IP66, IK10, NEMA4X |
| Input Voltage | PoE+IEEE802.3at |
| Power Consumption | Typical: 8.2W, Maximum: 16.5W |
Mechanical
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product dimensions / weight | Ø251x116.5mm / 3Kg |
DORI (EN62676-4 standard)
| Detect (25PPM/ 8PPF) | Wide: 28.4m(11.18ft) / Tele: 71.8m(28.27ft) |
| Observe (63PPM/ 19PPF) | Wide: 11.4m(4.49)ft) / Tele: 28.7m(11.30ft) |
| Recognize (125PPM/ 38PPF) | Wide: 5.7m(2.24ft) / Tele: 14.4m(5.67ft) |
| Identify (250PPM/ 76PPF) | Wide: 2.8m(1.10)ft) / Tele: 7.8m(3.07ft) |
