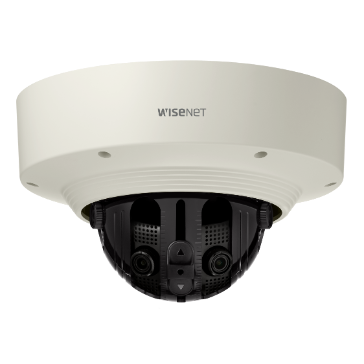

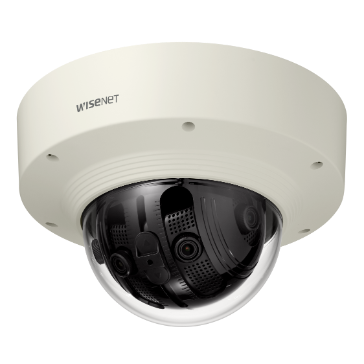

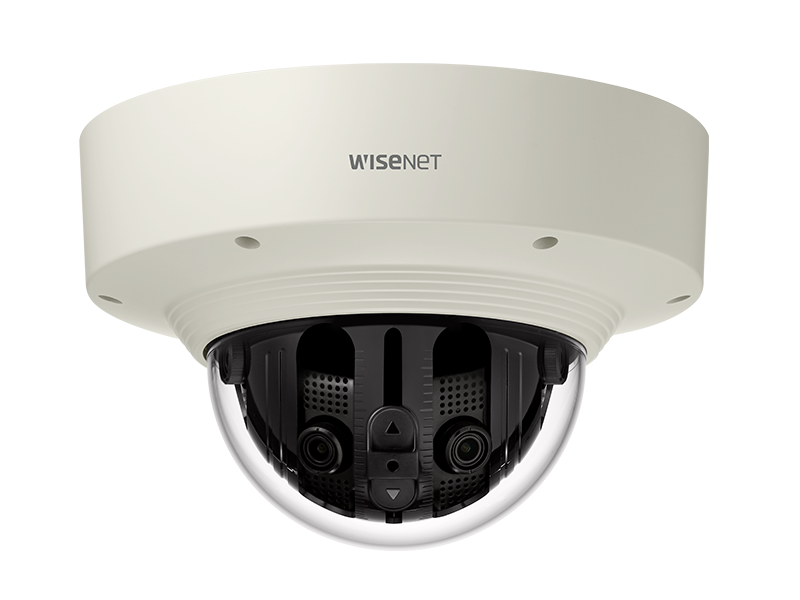

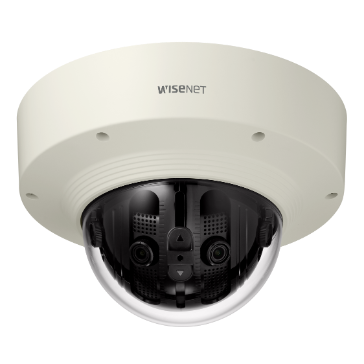

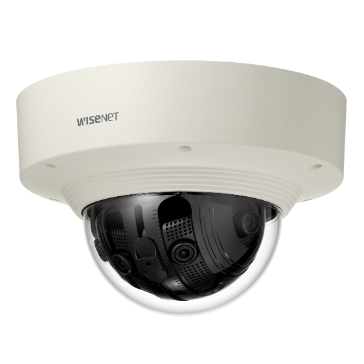

Hanwha - PNM-9030V - 15MP Panoramic Camera
Part number:
PNM-9030V
Price:
Network vandal outdoor Multi-sensor dome camera, Panoramic 180º view, (5MP X 4 sensors) 15MP @ 30fps, triple codec H.265/H.264/MJPEG with WiseStream technology, defocus detection, PTZ hand over and built in analytics, Heatmap, IP66/IK10
Features:
- 15 MP (6096x2540@180˚, 7744x1936@220˚) resolution
- 180˚/220˚ panoramic stitching image
- Panoramic stiching, original, crop view channel support
- 30fps at all resolutions (H.265/H.264 )
- H.265, H.264, MJPEG codec, WiseStream II supported
- Tampering, Loitering, Directional detection, Virtual line, Enter / Exit, (Dis)Appear, Audio detection, Motion detection, Handover, Sound classification, Heatmap
- micro SD/SDHC/SDXC 2 slots, PoE+, IP66, IK10
- USB connector for easy setup with optional Wi-Fi adapter
| Technical Specifications | |
| Video | |
| Imaging Device | 1/2.8" 5MP CMOSx4 |
| Min. Illumination | Color: 0.15Lux(F2.0, 1/30sec) B/W: 0.01Lux (F2.0, 1/30sec) |
| Video Out | USB : Micro USB Type B, 1280x720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 4mm Fixed |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | [180˚ mode] H: 180˚, V: 70˚ |
| [220˚ mode] H: 220˚, V: 52˚ | |
| Min. Object Distance | 3m(9.84ft) |
| Focus Control | Fixed |
| Pan / Tilt / Rotate |
| Pan / Tilt / Rotate Range | 0˚~355˚ / 0˚~60˚ / - |
| Operational |
| Camera Title | Displayed up to 75 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 16ea, rectangle zones |
| - Color: Grey/Green/Red/Blue/Black/White | |
| - Mosaic | |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Directional detection, Motion detection,, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification |
| Business Intelligence | Heatmap |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail |
| Notification via e-mail | |
| SD/SDHC/SDXC recording at event triggers | |
| Alarm output | |
| Network |
| Ethernet | RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR |
| MJPEG: VBR | |
| Streaming | Unicast(15 users) / Multicast |
| Multiple streaming(Up to 5 or 3 profiles) | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) Login Authentication |
| Digest Login Authentication | |
| IP Address Filtering | |
| User access log | |
| 802.1X Authentication(EAP-TLS, EAP-LEAP) | |
| Application Programming Interface | ONVIF Profile S/G |
| SUNAPI(HTTP API) | |
| Environmental & Electrical |
| Operating Temperature / Humidity | -40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -40°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| Mechanical |
| Color / Material | Ivory / Aluminum |
| Product dimensions / weight | Ø253x165mm(9.96"x6.5"), 3200g |
