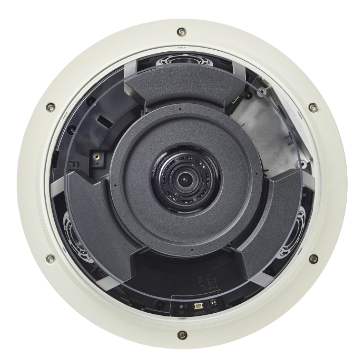

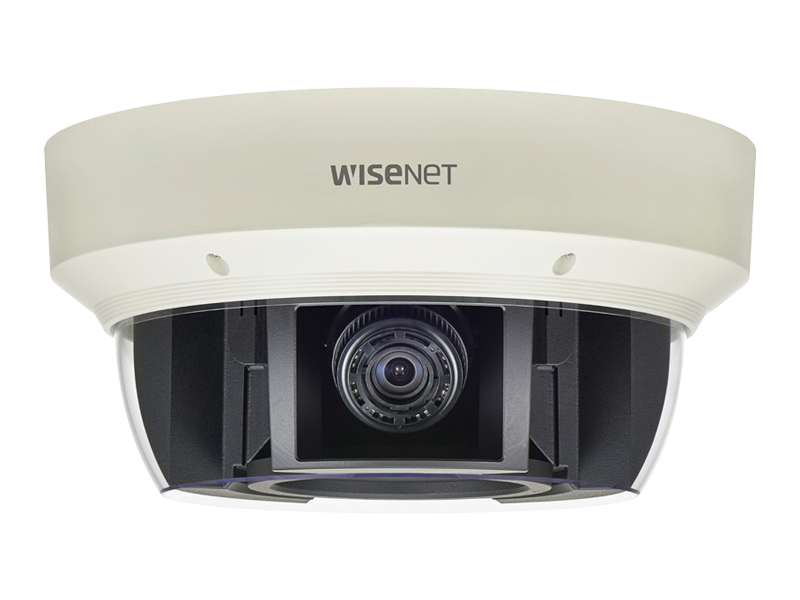

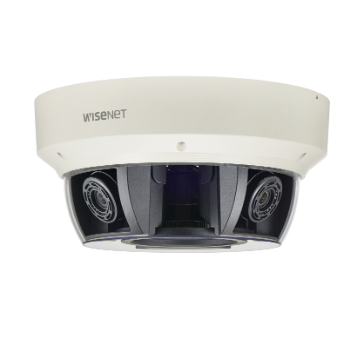

Hanwha - PNM-9081VQ - 20MP Multi-sensor, multi-directional camera
Part number:
PNM-9081VQ
Price:
Network vandal outdoor Multi-sensor Multi-Directional dome camera, (5MP X 4 sensors) 20MP @ 30fps WDR off/on, motorized vari-focal Lens 2.6x (3.6 ~ 9.4mm) (102.5˚ ~ 38.7˚), triple Codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, Defocus detection, built in analytics, true D/N, 4x SD card, hallway view, HLC, Defog detection, DIS(Gyro sensor), 12VDC/HPoE (power adaptor is included), IP66/IK10, -40°C ~ +55°C (-40°F ~ +131°F)
Features:
- Max 20MP @ 30fps, 5MP X 4 sensors using one IP address
- Motorized vari-focal 3.6 ~ 9.4mm (FOV: 102.5˚ ~ 38.7˚)
- Triple codec: H.265, H.264 and MJPEG multiple streaming
- WiseStream II compression technology
- WDR 120dB @ 20MP @30fps
- Loitering, directional detection, fog detection, tampering, motion detection, object enter or exit an area
- Hallway view
- SD cards (each channel has its own)
- Gyro sensor for digital image stabilization
- Power: HPoE (HPoE adaptor is included) or 12VDC
| Technical Specifications | |
| Video | |
| Imaging Device | 1/1.8" 6MP CMOS: each CH |
| Min. Illumination | Color: 0.07Lux(F1.2, 1/30sec)(30IRE) |
| B/W: 0.007Lux (F1.2, 1/30sec)(30IRE) | |
| Video Out | CVBS : 1.0 Vp-p / 75Ω composite, 720x480(N), 720x576(P), for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 3.6~9.4mm(2.6x) motorized varifocal |
| Max. Aperture Ratio | F1.2(Wide)~F2.4(Tele) |
| Angular Field of View | H: 102.5˚(Wide)~38.7˚(Tele), V: 74.2˚(Wide)~29.0˚(Tele), D: 135.5˚(Wide)~48.6˚(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Simple focus |
| Lens Type | DC auto iris, P iris |
| Pan / Tilt / Rotate |
| Pan / Tilt / Rotate Range | Quad mode: Pan +/-30˚, Tilt 10˚ ~ 41˚, Rotate +-90˚ |
| Center mode: Pan +/-60˚, Tilt 10˚ ~ 41˚ / 10˚ ~ 90˚(CH2/Center), Rotate +-90˚ | |
| Operational |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Digital Image Stabilization | Support(built-in gyro sensor) |
| Defog | Support |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 32ea, polygonal zones |
| - Color: Grey/Green/Red/Blue/Black/White | |
| - Mosaic | |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail |
| Notification via e-mail | |
| SD/SDHC/SDXC recording at event triggers | |
| Alarm output | |
| Network |
| Ethernet | RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Smart Codec | Manual(5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR |
| MJPEG: VBR | |
| Streaming | Unicast(20 users) / Multicast |
| Multiple streaming(Up to 10 profiles) | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) Login Authentication |
| Digest Login Authentication | |
| IP Address Filtering | |
| User access log | |
| 802.1X Authentication(EAP-TLS, EAP-LEAP) | |
| Application Programming Interface | ONVIF Profile S |
| SUNAPI(HTTP API) | |
| Environmental & Electrical |
| Operating Temperature / Humidity | -40°C ~ +55°C(-40°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP66, IK10 |
| Mechanical |
| Color / Material | Ivory / Aluminum |
| Product dimensions / weight | Ø314mmx152mm, 4890g |
