Hanwha - PNM-9084QZ1 - 2MP X 4 Sensors Network Vandal Ooutdoor Wisenet P Series Dome Camera, 3.0~6.0mm Lens

Product Overview

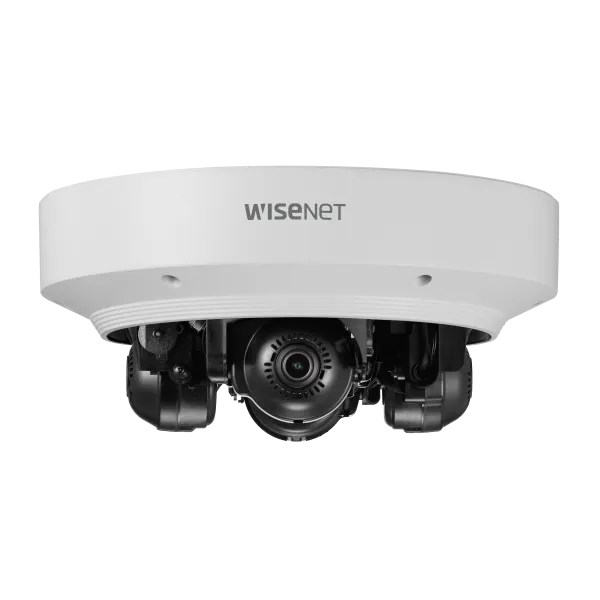

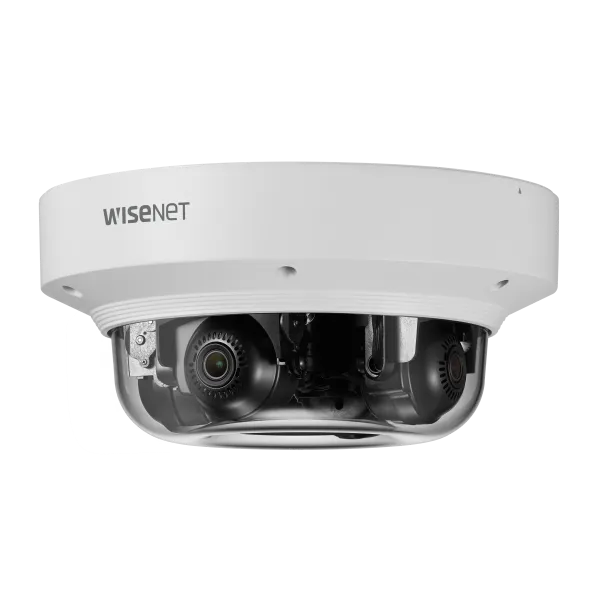

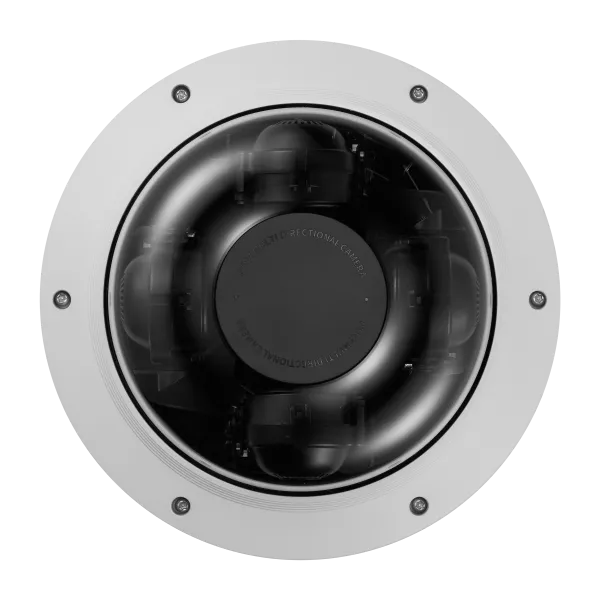

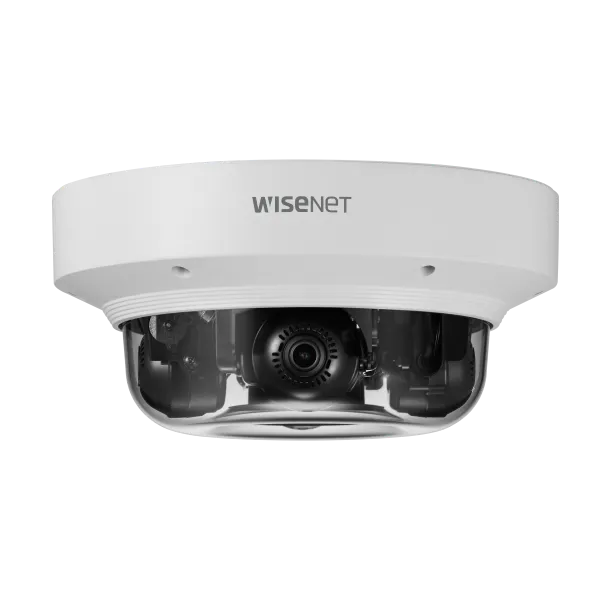

The Hanwha PNM-9084QZ1 is an outdoor vandal-resistant multi-directional dome camera featuring four 2MP CMOS sensors (8MP total) that deliver up to 60 fps per channel over a single IP address. Each sensor utilizes a 3~6mm (2x) motorized varifocal lens with remote PTRZ (Pan/Tilt/Rotate/Zoom) adjustment capability and a full 90° look-down tilt.

Key Configuration

•  Imaging device: 1/2.8" CMOS × 4CH; resolution per channel: 1920×1080 (2MP) at up to 60 fps (H.265/H.264)
•  Lens: 3~6mm motorized varifocal (2x), fixed iris, F2.2(W)–F3.1(T); horizontal FOV: 107°(W)–56.3°(T)
•  PTRZ remote adjustment: pan 0–360°, tilt 0–73°, rotate 0–90°, max 200 cycles; full 90° look-down tilt capability
•  Minimum illumination: color 0.04 lux, B/W 0.004 lux (F2.2, 1/30 sec); no IR built-in
•  Power: HPoE (IEEE 802.3bt), injector included; max 33W, typical 20W

Key Features

Featuring 120dB WDR, SSNRⅤ digital noise reduction, Digital Image Stabilization (DIS), and LDC/Defog support, this camera includes Hallway View and a robust analytics suite (including face, motion, loitering, line crossing, and audio detection). It is equipped with 5GB RAM and 1280MB Flash memory, and supports local edge storage via 4× microSD slots (256GB per channel). The unit offers bi-directional audio, a 1-input/1-output alarm interface, easy gangbox mounting, and compliance with ONVIF Profiles S and T.

Technical Context

Featuring a simple focus mechanism with a 0.5m (1.64 ft) minimum object distance, this multi-directional camera offers an electronic shutter speed of 2 to 1/12,000 sec. Per-channel configurations support 32 polygonal privacy zones (with color or mosaic fills) and 8 motion detection zones. The system streams up to 10 profiles to 20 concurrent unicast or multicast users across a full protocol suite, including PIM-SM and LLDP. Security protocols include HTTPS/SSL and digest login authentication, IP address filtering, user access logging, and 802.1X network access control. The rugged housing is certified IP66 weatherproof, NEMA4X corrosion-resistant, and IK10 vandal-proof.

Installation Notes

Measuring Ø251 × 116.5 mm and weighing 3 kg (6.6 lb). It operates within a temperature range of -40°C to +55°C (-40°F to 131°F) with a start-up threshold above -35°C under 90% RH, and stores safely down to -50°C (-58°F). The unit does not include built-in IR illumination, relies on HPoE power (IEEE 802.3bt, injector included), and provides 4× microSD slots for edge storage alongside a design optimized for easy gangbox mounting.
