Name: Hanwha - PNM-9085RQZ - 20MP (5MP x 4) Multi-Sensor, Multi-Directional PTRZ Camera
Brand: Hanwha Vision
SKU: PNM-9085RQZ

Home — Brands — Hanwha Vision — Security Cameras — Wisenet P series —

Hanwha - PNM-9085RQZ - 20MP (5MP x 4) Multi-Sensor, Multi-Directional PTRZ Camera

Part number:

PNM-9085RQZ

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

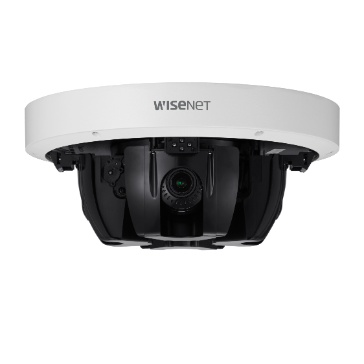

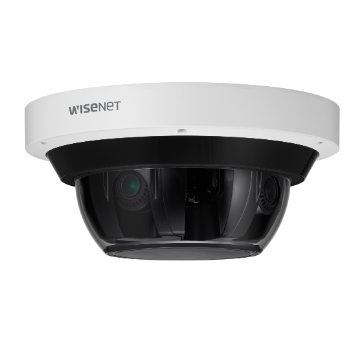

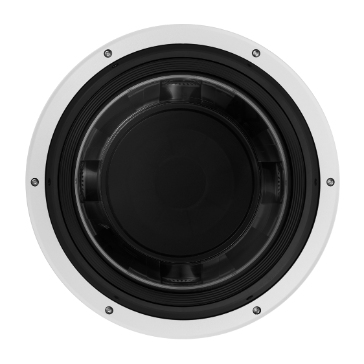

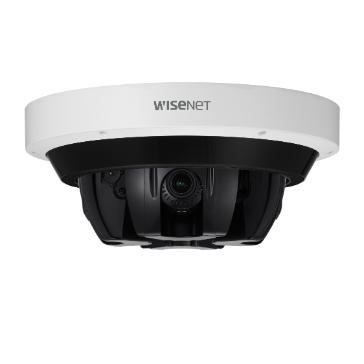

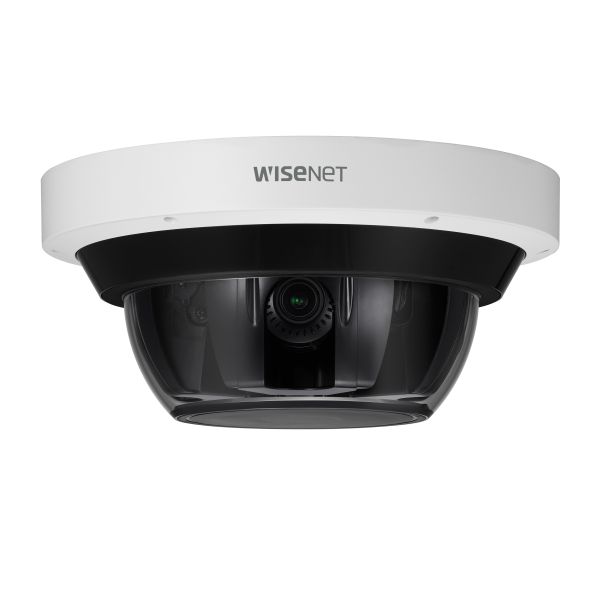

The PNM-9085RQZ Wisenet P series network vandal outdoor Multi-Sensor Multi-Directional dome camera provides 4x 5MP sensors for a total resolution of 20MP. Each camera head features 30fps, a motorized vari-focal lens 2.3x (4.13~9.4mm) (87.58°~37.34°), PTRZ (Pan/Tilt/Rotate/Zoom) remote adjustment, triple codec H.265/H.264/MJPEG with WiseStream II technology, 120dB WDR, defocus detection, built-in analytics, true D/N, 4x SD card slots, hallway view, HLC, defog detection, Bi-Directional Audio, Alarm I/O 1/1, HPoE (injector included), IP66/IK10, -40°C ~ +55°C (-40°F ~ +131°F), White camera body.

Features:

5MP x 4ch multi-directional camera, using one IP address
Motorized PTRZ for easy installation and remote adjustment of entire FoV
30fps@5MP(H.265, H.264)
4.13~9.4mm(2.3x) motorized PTRZ varifocal lens
Integrated IR that rotates with camera head, viewable length : 30m
H.265, H.264, MJPEG codec, Multi streaming
Video analytics, WiseStreamⅡ
IP66, IK10, NEMA4X
Easy Gangbox mounting installation

Technical Specifications
Video
Imaging Device	1/1.8" 5MP CMOS: each CH
Min. Illumination	Color: 0.11lux(F1.6,30 IRE) BW: 0Lux(IR LED on)
Lens

Focal Length (Zoom Ratio)	4.13~9.4mm(2.3x)motorized varifocal
Max. Aperture Ratio	F1.92(Wide)~F2.67(Tele)
Angular Field of View	H: 87.58°(Wide)~37.34°(Tele) / V: 64.58°(Wide)~28.04°(Tele) /
	D: 112.46°(Wide)~46.85°(Tele)
Min. Object Distance	1.2m
Focus Control	Simple focus
Pan / Tilt / Rotate

Pan / Tilt / Rotate Range	Remote adjustment (Max. 200cycles)
	0~360˚ / 35~80˚ / 0~90˚
Operational

Camera Title	Displayed up to 85 characters
Day & Night	Auto(ICR)
Backlight Compensation	BLC, HLC, WDR, SSDR
Wide Dynamic Range	120dB
Digital Noise Reduction	SSNRⅤ
Digital Image Stabilization	Support
Defog	Support
Motion Detection	8ea, 8point polygonal zones
Privacy Masking	32ea, polygonal zones
	- Color: Grey, Green, Red, Blue, Black, White
	- Mosaic
Gain Control	Low / Middle / High
White Balance	ATW / AWC / Manual / Indoor / Outdoor
LDC	Support
Electronic Shutter Speed	Minimum / Maximum / Anti flicker (2~1/12,000sec)
Video Rotation	Flip, Mirror, Hallway view(90˚/270˚)
Analytics	Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection
Alarm I/O	Input 1ea / Output 1ea
Alarm Triggers	Analytics, Network disconnect, Alarm input
Alarm Events	File upload via FTP and e-mail
	Notification via e-mail
	SD/SDHC/SDXC or at event triggers
	Alarm output
	Handover
Audio In	Selectable(mic in/line in)
	Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm
Audio Out	Line out, Max.output level: 1Vrms
IR Viewable Length	30m
Network

Ethernet	RJ-45(10/100/1000BASE-T)
Video Compression	H.265/H.264: Main/Baseline/High, MJPEG
Smart Codec	Manual(5ea area), WiseStreamⅡ
Bitrate Control	H.264/H.265: CBR or VBR
	MJPEG: VBR
Streaming	Unicast(20 users) / Multicast
	Multiple streaming(Up to 10 profiles)
Protocol	IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP
Security	HTTPS(SSL) Login Authentication
	Digest Login Authentication
	IP Address Filtering
	User access log
	802.1X Authentication(EAP-TLS, EAP-LEAP)
Application Programming Interface	ONVIF Profile S/T
	SUNAPI(HTTP API)
	Wisenet open platform
Environmental & Electrical

Operating Temperature / Humidity	-40°C~+55°C(-40°F~+131°F) / Less than 90% RH
Storage Temperature / Humidity	-50°C~+60°C(-58°F~+140°F) / Less than 90% RH
Certification	IP66, IK10, NEMA4X
Mechanical
