Hanwha - PNM-A13022RV - 13MP AI IR Panoramic Camera
Product Overview

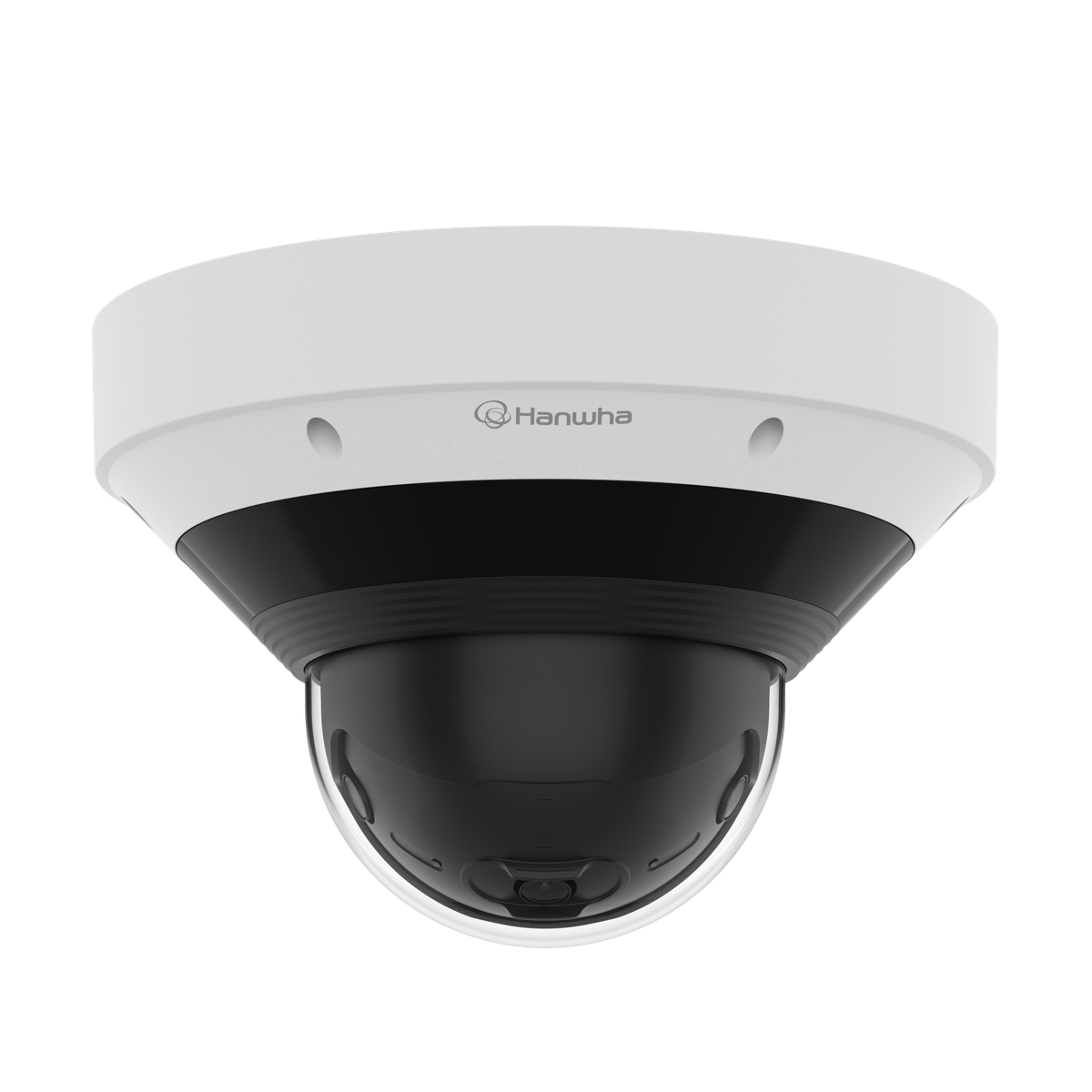

The Hanwha Vision PNM-A13022RV is a high-performance 13MP AI-powered panoramic camera designed for wide-area surveillance. Equipped with a 1/2.8" CMOS sensor and a fixed 3.06mm lens, it captures ultra-high-definition video at 5120×2592 resolution. Its expansive 194° horizontal field of view ensures comprehensive coverage, with IR illumination up to 20 meters for clear imaging in total darkness.
Configuration
- • Imaging device: 1/2.8" CMOS; max resolution: 5120×2592 (13MP)
- • Lens: 3.06mm fixed, F1.6; horizontal FOV: 194°, vertical FOV: 93°
- • IR wavelength: 850nm; IR viewable length: 20m (65.62ft) with 4 individual zones, automatic/manual level adjustment
- • Max framerate: 30 fps (H.265/H.264), 30 fps (MJPEG)
- • Edge storage: Micro SD/SDHC/SDXC ×2 slots, max 1TB per slot (total 2TB)
Features
The AI analytics automatically detect intrusions, safety incidents like slips and falls, and specific details like clothing color or vehicle type. Beyond security, it offers business tools like people counting, heatmaps, and queue management to track traffic and wait times. The camera is easy to integrate, supporting ONVIF Profiles S, G, T, and M for compatibility with most security systems.
Technical Context
It supports both Unicast and Multicast streaming, allowing up to 20 users to view the feed simultaneously across multiple profiles.
For communication, it supports modern protocols like IPv4, IPv6, and MQTT, as well as a direct cloud connection for easy remote access. The camera is highly secure, featuring encrypted firmware, secure boot, and a dedicated secure element (FIPS 140-3 Level 3) to protect your data from cyber threats.
Installation Notes
This durable white aluminum camera measures 9.96" × 6.69" and weighs 6.17 lbs. It is built for extreme environments with IP66, NEMA 4X, and IK10 ratings, ensuring protection against weather and impact. It operates reliably from -40°C to +55°C and supports PoE+ or 12VDC power with automatic failover for constant uptime. Designed for easy setup, it fits standard gang boxes and offers a 360° pan and 50° tilt for precise positioning. It also features a USB-C port for mobile video previews during installation.
| VIDEO | |
|---|---|
| Imaging Device Size | 1/2.8" |
| Imaging Device Type | CMOS |
| Resolution | 5120x2592, 4112x2080, 3240x1640, 2940x1488, 2560x1296, 2016x1016, 1600x800, 1424x720, 1280x648, 1016x512, 832x480, 832x416, 800x600, 640x480 |
| Max. Framerate H.265/H.264 | 30fps/25fps (60Hz/50Hz) |
| Max. Framerate MJPEG | 30fps |
| Min. Illumination Color (1/30sec, 30IRE) | 0.1 lux |
| Min. Illumination BW (1/30sec, 30IRE) | 0.01 lux |
| Video Out | USB Type C. Preview and installation ONLY. Requires WiFi dongle. |
| LENS | |
| Focal Length (mm) | 3.06 |
| Max Aperture Ratio (F number) Wide | 1.6 |
| Angular Field of View Horizontal | 194° |
| Angular Field of View Vertical | 93° |
| Min. Object Distance | 5m (16.4ft) |
| Focus Control | Fixed |
| PAN / TILT / ROTATE | |
| Pan Range | 0°~360° |
| Tilt Range | 0°~50° |
| OPERATIONAL | |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range (dB) | 120 |
| Digital Noise Reduction | WiseNRⅡ (Based on AI engine), SSNRⅤ |
| Motion Detection Quantity | 8ea |
| Motion Detection Shape | 8 point Polygonal zones |
| Privacy Masking Quantity | 4ea |
| Privacy Masking Shape | Polygonal zones |
| Privacy Masking Color / Option | Gray, Green, Red, Blue, Black, White |
| Gain Control | Low, Middle, High |
| White Balance | ATW, AWC, Manual, Indoor, Outdoor |
| Electronic Shutter Mode | Minimum, Maximum, Anti flicker, Prefer shutter control (Based on AI engine) |
| Electronic Shutter Speed Range | 2~1/12,000 sec |
| Video Rotation | Flip, Mirror |
| ALARM | |
| Alarm Interface In/Out | 2 configurable I/O ports |
| Alarm Interface Others | Support extra alarm I/O via optional I/O box |
| Alarm Triggers | Analytics, Network disconnect, Alarm input, Time schedule, MQTT subscription |
| Alarm Events | File upload (image): e-mail/FTP/SFTP, File upload (video clip): FTP/SFTP, Recording: SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover: PTZ preset, send message by HTTP/HTTPS/TCP, Audio clip playback, MQTT: publication |
| AUDIO | |
| Audio In | Selectable (mic in/line in) |
| Audio Out | Line out |
| LIGHT | |
| Light Type | IR LED |
| IR Viewable Length | 20m (65.62ft) 4 individual zones with Automatic/Manual level adjustment |
| IR Wavelength | 850nm |
| ANALYTICS | |
| Classified Object Type | Person, Face, Vehicle, License plate |
| Person Attributes | Upper/Lower clothes color, Gender, Bag |
| Vehicle Attributes | Type (car, bus, truck, motorcycle, bicycle), Color |
| Face Attributes | Age, Gender, Face mask, Glasses |
| Thumbnail | BestShot |
| Analytics Events (Based on AI Engine) | Object detection, Virtual line (Crossing/Direction), Virtual area (Loitering/Intrusion/Enter/Exit), Motion detection, Face mask detection, Social distancing detection, Slip & fall detection |
| Analytics Events (Normal) | Defocus detection, Tampering, Audio detection, Virtual area (Appear/Disappear) |
| Business Intelligence (Based on AI Engine) | People counting, Queue management, Heatmap, Vehicle counting, Crowd counting |
| NETWORK | |
| Ethernet | Metal shielded RJ-45 (10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law / G.726 selectable, G.726(ADPCM) 8kHz, G.711 8kHz, G.726: 16kbps, 24kbps, 32kbps, 40kbps, AAC-LC: 48kbps at 16kHz, OPUS: 48kHz (64kbps) |
| Smart Codec | Manual, WiseStream (Based on AI engine) |
| Bitrate Control | H.265/H.264: CBR or VBR, MJPEG: VBR |
| Streaming Unicast | Up to 20 users |
| Streaming Multicast | Support |
| Multiple Streaming | Up to 4 profiles, 3 virtual channel support |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SFTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT |
| Application Programming Interface ONVIF | S, G, T, M |
| Application Programming Interface Others | SUNAPI (HTTP API), Hanwha Vision Open Platform |
| Direct Cloud Connection | Support |
| SECURITY | |
| OS / Firmware Protect | Encrypted firmware, Secure boot, Signed firmware |
| User authentication | Digest authentication, Prevent brute-force attack |
| Network authentication | IEEE 802.1X (EAP-TLS, EAP-LEAP, EAP-PEAP, MSCHAPv2) |
| Secure Communication | HTTPS, WSS (WebSocket Secure), SRTP, 802.1AE (MACsec) |
| Access Control | IP-based access control, MAC-based access control, Auto logout |
| Data Protect | Encryption credentials, Encrypt compress for live recording file export |
| Audit | Access / System / Event Log management |
| Device ID | Device certificate (Hanwha Vision Root CA) |
| Secure Storage | SDcard partition encrypt (AES-256), Secure element |
| Security Certificate | Secure element (FIPS 140-3 level3, CC EAL6+), Consumer IoT Security Standard (ETSI EN 303 645) |
| GENERAL | |
| SoC Type | NT98692 |
| RAM | 8GB |
| Flash | 8GB eMMC |
| Edge Storage | Micro SD/SDHC/SDXC Max. 1TB x 2 slots (Total 2TB) |
| ENVIRONMENTAL & ELECTRICAL | |
| Operating Temperature | -40°C ~ +55°C (-40°F ~ +131°F) |
| Operating Humidity | 0~100% RH (condensing) |
| Storage Temperature | -50°C ~ +60°C (-58°F ~ +140°F) |
| Storage Humidity | 0~90% RH (non-condensing) |
| EPA (Effective Projected Area) | 0.0286 m² |
| Input Voltage | PoE+ (IEEE802.3at, Class4), 12VDC |
| Power Consumption PoE | Max 22.3W, typical 11.5W |
| Power Consumption 12VDC | Max 20.0W, typical 10.0W |
| Power Redundance Failover | Support |
| MECHANICAL | |
| Color | White |
| Material | Aluminum, Hard-coated dome |
| RAL Code | RAL9003 |
| Product Dimensions | ø253 x 170mm (9.96 x 6.69") |
| Product Weight | 2,800g (6.17lb) |
| Compatible Conduit Hole | 19.1mm (3/4") (M25) |
| Compatible Gang Box | Single, Double, 4" Octagon, Square |
| CERTIFICATIONS & STANDARDS | |
| EMC | FCC 47 CFR 15 Subpart B Class A, ICES-3(A)/NMB-3(A), CE/UKCA - EN55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3, VCCI CISPR 32 Class A, RCM AS-NZS CISPR 32 Class A, KS C 9832 Class A, KS C 9835 |
| Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1, IEC 62471 |
| Environment | IEC/EN 63000, IEC 60529 IP66, IEC 62262 IK10, NEMA 250 type 4X, IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-6, IEC 60068-2-14, IEC 60068-2-27, IEC 60068-2-78 |
| DORI (EN62676-4 STANDARD) | |
| Detect (25PPM / 8PPF) Wide | 43.8m (143.85ft) |
| Observe (63PPM / 19PPF) Wide | 17.5m (57.54ft) |
| Recognize (125PPM / 38PPF) Wide | 8.8m (28.77ft) |
| Identify (250PPM / 76PPF) Wide | 4.4m (14.39ft) |
