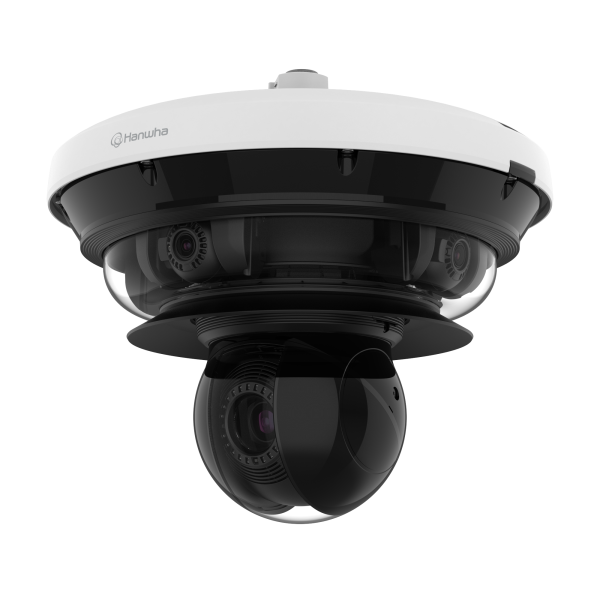

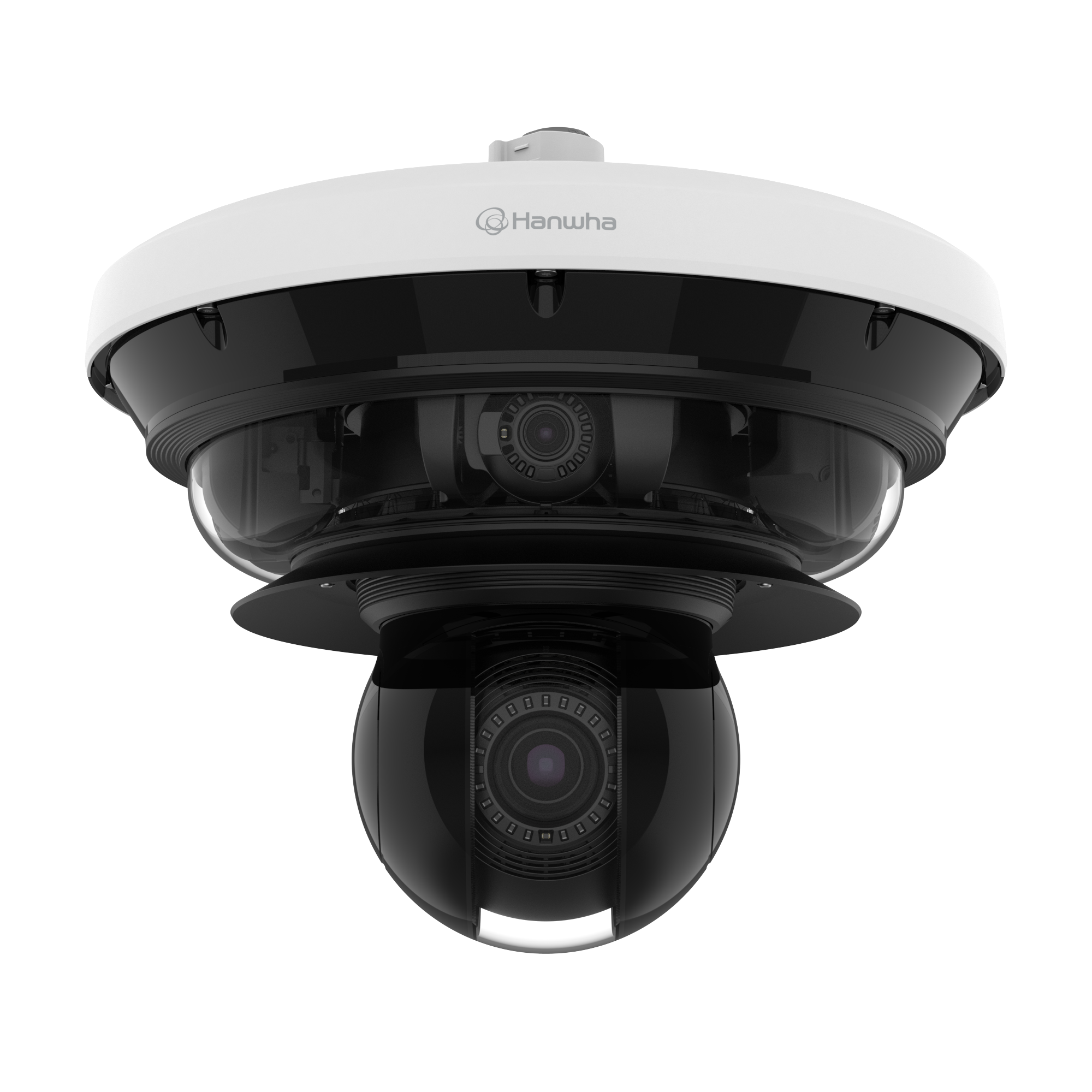

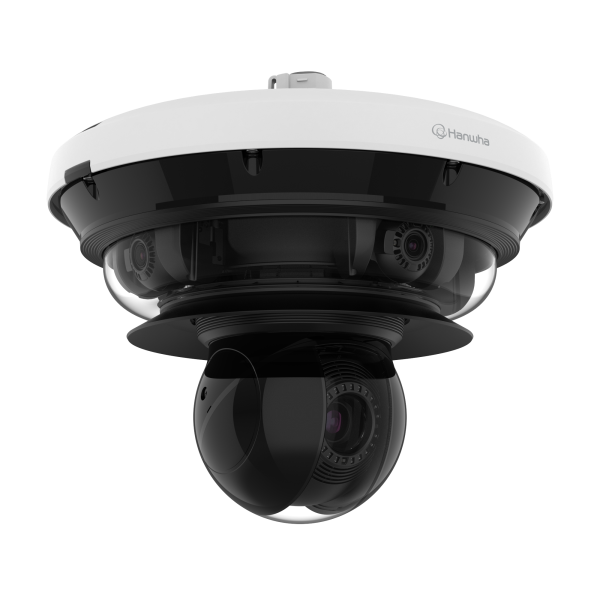

The PNM-C344004RQPZ is an innovative network vandal outdoor Multi-Directional camera that combines AI, IR, 4K lenses with PTRZ, and a 2MP 40x PTZ. This allows for full 360° coverage while being able to zoom in on events using SmartZoom, or manual operator control. Each of the quad-sensors can be remotely adjusted for installation to provide complete lifecycle adjustment of the pan, tilt, rotation, zoom, & focus.
Features:
- 120dB WDR
- 4.44~142.6mm (Optical 40x) lens
- PTZ Auto Tracking, SmartZoom to Preset / IVA Trigger
- 4-Channels @ 4K/8MP with motorized PTRZ for easy installation and remote adjustment of the entire FoV, 3.3~5.7mm (FoV H: 109°~56°, V: 55°~31°)
- 15FPS AI ON, 20FPS AI OFF
- 2MP @ 60FPS PTZ with 40x zoom
- IR viewable [4CH] length 20m (65ft) / [PTZ] WiseIR 200m (656ft)
- H.265, H.264, MJPEG triple codec
- Analytics events based on AI engine: Object detection [Person/Vehicle (Car/Bus/Truck/Motorcycle/Bicycle)], IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Appear/Disappear
- WiseNR Ⅱ (using AI engine), WiseStreamⅢ (Based on AI engine)
- I/O Box compatibility
- TPM with FIPS 140-2 level 2
- micro SD card 512GB x2
- IP66, IK10, NEMA4X
- Operating Temperature: -40°C~+50°C(-40°F~+122°F)
- HPoE (injector included)
- Hard-coated dome bubble
| Video | 4CH camera | PTZ |
| Imaging Device | 1/2.8" CMOS |
| Max. Framerate | [AI On] H.265/H.264: Max. 15fps/15fps(60Hz/50Hz) MJPEG: Max. 15fps/15fps(@8MP Max. 5fps) [AI Off] H.265/H.264: Max. 20fps/20fps(60Hz/50Hz) MJPEG: Max. 20fps/20fps(@8MP Max. 5fps) | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.1Lux(F1.5, 1/30sec, 30IRE) BW: 0.01Lux(F1.5, 1/30sec, 30IRE), 0Lux(IR LED on) | Color: 0.05Lux(F1.6, 1/30sec, 30IRE) BW: 0.005Lux(F1.6, 1/30sec, 30IRE), 0Lux(IR LED on) |
| Lens | ||
| Focal Length (Zoom Ratio) | 3.3~5.7mm(1.7x) motorized varifocal | 4.25~170mm(40x) zoom(digital 32x, total 1280x zoom) |
| Max. Aperture Ratio | F1.5(Wide)~F1.9(Tele) | F1.6(Wide)~F4.95(Tele) |
| Angular Field of View | H: 109°(Wide)~56°(Tele) V: 55°(Wide)~31°(Tele) D: 136°(Wide)~65°(Tele) | H: 65.66°(Wide)~1.88°(Tele) V: 39.40°(Wide)~1.09°(Tele) |
| Min. Object Distance | 1.3m(4.27ft) | 5m(16.4ft) |
| Focus Control | Simple focus | Oneshot AF, Focus save |
| Lens Type | Fixed iris | DC auto iris |
| Pan / Tilt / Rotate | ||
| Pan / Tilt / Rotate Range | Remote adjustment(Max. 200cycles) 0°~360° / 9°~65° / 0°~90° * Tilt angle with Shield IR: 40°~65° | |
| Pan Range | 360° Endless | |
| Pan Speed | Max: 700°/sec, Manual: 0.024°/sec~250°/sec | |
| Tilt Range | 0°~110° | |
| Tilt Speed | Max: 500°/sec, Manual: 0.024°/sec~250°/sec | |
| Sequence | Preset(300ea), Swing, Group(6ea), Trace, Tour, Auto Run, Schedule | |
| Preset Accuracy | Up to ±0.1°, Pan/Tilt correction | |
| Operational | ||
| Camera Title | Displayed up to 85 characters | |
| Direction Indicator | Support | |
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB | extremeWDR(150dB) |
| Digital Image Stabilization | Support | |
| Defog | Support | |
| Motion Detection | 8ea, 8point Polygonal zones | |
| Privacy Masking | 6ea, rectangular zones - Color: Grey/Black/White | 32ea, 4point quadrangle zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Low / Middle / High | Off / Max Gain / Manual |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor | ATW / Narrow ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium |
| LDC | Support | |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker(2~1/12,000sec) Prefer shutter control(Based on AI engine) | |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) - Each Flip, Mirror channel separately | |
| Analytics | Classified object type: Person/Face/Vehicle/License plate Attributes: Vehicle(Type: car/bus/truck/motorcycle/bicycle) Analytics events Support BestShot - Motion detection, Fog detection, Tampering, Analytics events based on AI engine Virtual
line*(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit/Appear/Disappear), Virtual line(Crossing/Direction) area*(Loitering/Intrusion/Enter/Exit) Analytics events * Support Audio detection, Sound classification
* Some of the video analytics only works with people and vehicle detection | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input(Via optional I/O box SPM-4210), App event, Schedule, MQTT subscription | |
| Alarm Events | When alarm trigger occurred
| |
| IR Viewable Length | 20m(65.62ft) WiseIR 200m(656.17ft) | |
| Water Removal | Support(Spin dry) | |
| Auto Tracking | Object auto tracking(Person/Vehicle), Target lock tracking | |
| Network | ||
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) | |
| Video Compression | H.265/H.264: Main/High, MJPEG H.265/H.264: Main/Baseline/High, MJPEG | |
| Smart Codec | Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI engine) | |
| Video Quality Adjustment | H.264/H.265: Target bitrate level control MJPEG: Target bitrate level control | |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR | |
| Streaming | Unicast(10 users) / Multicast Unicast(20 users) / Multicast Multiple streaming(Up to 3 profiles) Multiple streaming(Up to 10 profiles) | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP(TCP, UDP Unicast), MQTT | |
| Application Programming Interface | ONVIF Profile S/T SUNAPI(HTTP API) Wisenet open platform | |
| Security | ||
| OS / Firmware Protect | Secure boot, Signed firmware, Firmware encryption | |
| User authentication | Digest Authentication, Privent brute-force attack | |
| Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) | |
| Secure Communication | HTTPS, SRTP, WSS(Websocket secure) | |
| Access Control | IP address filtering | |
| Data Protect | Authentication information encryption, ZIP compression encryption | |
| Audit | User Access/System/Event log | |
| Device ID | Device Certificate(Hanwha Private Root CA) | |
| Secure Storage | TPM 2.0 with FIPS 140-2 level2 | |
| General | ||
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | |
| Edge Storage | Micro SD/SDHC/SDXC 2slot 1TB(512GBx2) | |
| Memory | 8GB RAM, 1GB Flash | 4GB RAM, 512MB Flash |
| Environmental & Electrical | ||
| Operating Temperature / Humidity | -40°C~+50°C(-40°F~+122°F) +74°C(+165°F)(MAX) based on NEMA-TS 2(2.2.7) * Start up should be done at above -30°C 0~95% RH(non-condensing) | |
| Storage Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / 0~95% RH | |
| Certification | IP66, NEMA4X, IK10 | |
| Input Voltage | HPoE(IEEE802.3bt type 4, Class 8) | |
| Power Consumption | HPoE: Max 64.00W, typical 45.00W | |
| Mechanical | ||
| Color / Material | White / Aluminum Bubble : Hard-coated dome (PTZ only) | |
| RAL Code | RAL9003 | |
| Product Dimensions / Weight | ø379.78x301.92mm(ø14.95x11.89"), 7.9kg(17.42 lb) | |
