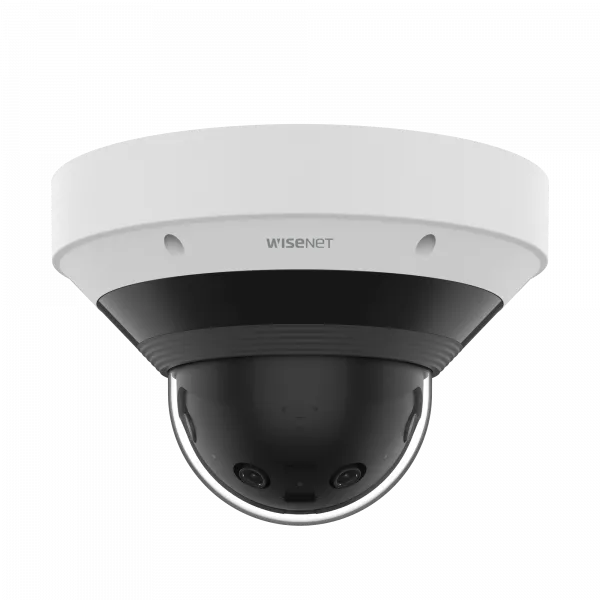

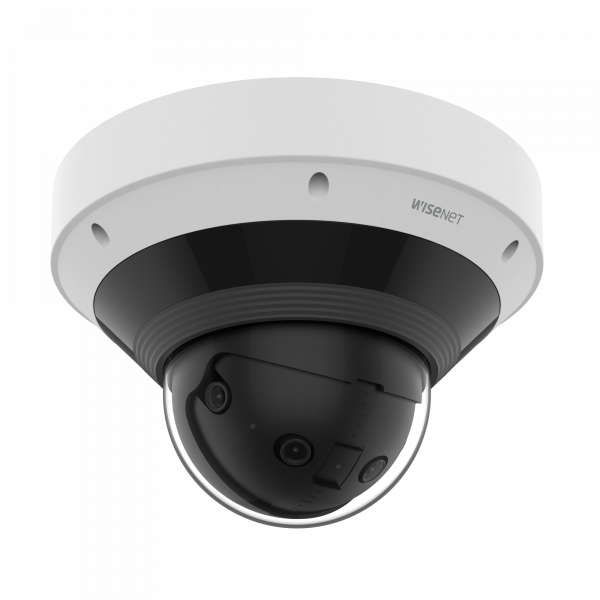

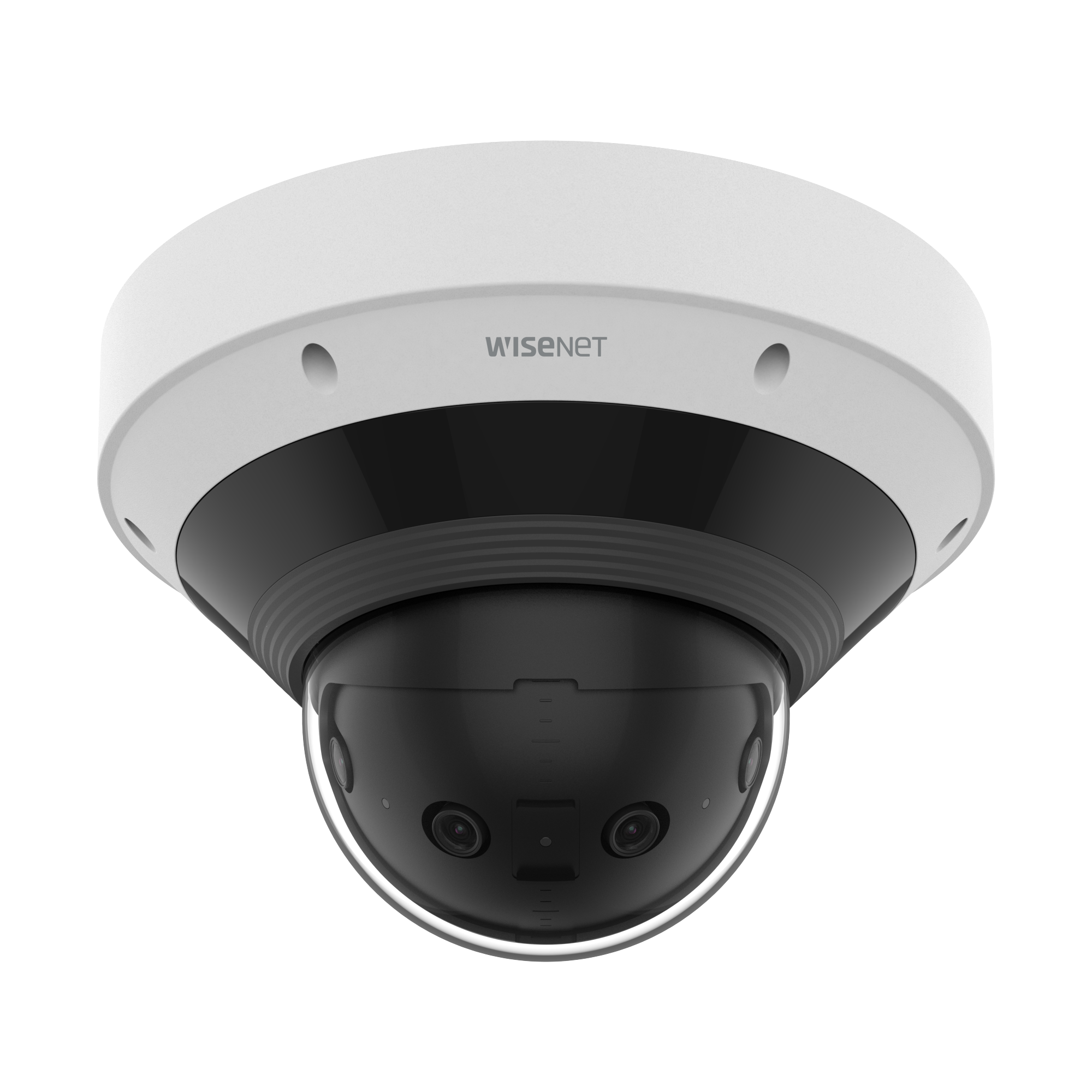

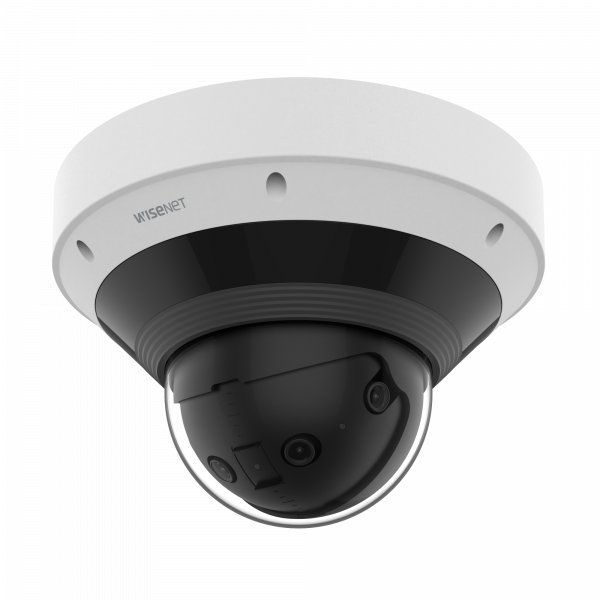

8MP AI IR Panoramic Camera
Features:
- 8MP 5120X1568 resolution
- 209⁰ panoramic stitching image
- IR viewable length Maximum 20m (65.6ft), WiseIR
- 20fps at all resolutions (H.265/H.264/MJPEG)
- H.265, H.264, MJPEG codec, WiseStream III supported
- WiseNRⅡ(Based on AI engine)
- Analytics events based on AI engine : Object classification (Person/Vehicle), Virtual line (Crossing/Direction), Virtual area (Loitering/Intrusion/Enter/Exit)
- Standard analytic events: Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Virtual area(Appear/Disappear)
- micro SD/SDHC/SDXC 2 slots, PoE+/12v DC, IP66, IK10
- Hard-coated dome bubble
- TPM 2.0 with FIPS 140-2, Secure OS/Boot/Storage, Verify firmware forgery
- USB connector for easy setup with optional Wi-Fi adapter
| Video | |
| Imaging Device | 1/2.8" CMOS (x4) |
| Resolution | 5120X1568, 3648X1152, 2560X784, 1280X392 |
| Max. Framerate | H.265/H.264: Max. 20fps(60Hz/50Hz) MJPEG: Max. 20fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.1Lux(F2.0, 1/30sec) BW: 0.01Lux(F2.0, 1/30sec), 0Lux(IR LED on) |
| Video Out | USB: Micro USB Type B, 1280x720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8mm fixed focal (x4) |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 209°, V: 60° |
| Min. Object Distance | 5m(16.4ft) |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~360° / 0°~65° / - |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Motion Detection | 8ea, 8point Polygonal zones |
| Privacy Masking | 10ea, Rectangular zones - Color : Gray, Green, Red, Blue, Black, White |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Prefer / Anti flicker (2~1/12,000sec) Auto prefer shutter control(Based on AI engine) |
| Video Rotation | Flip, Mirror |
| Analytics | Classified object type : Person/Vehicle Attributes : Not support Support BestShot Analytics events based on AI engine
Analytics events
|
| Alarm I/O | 2 configurable I/O ports |
| Alarm Events | When alarm trigger occurred
|
| Audio Out | Line out, Max.output level: 1Vrms |
| IR Viewable Length | WiseIR 20m(65.62ft) 4 individual zones with Automatic/Manual level adjustment |
| Network | |
| Ethernet | Metal shielded RJ-45(10/100/1000BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
| Smart Codec | Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI engine) |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 3 profiles, 2 virtual channel support) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast) |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) Device Certificate(Hanwha Techwin Root CA, pre-installed) Secure by default certificate Secure OS/Boot/Storage, Verify firmware forgery TPM 2.0 with FIPS 140-2 level2 |
| Application Programming Interface | ONVIF Profile S/G/T/M SUNAPI(HTTP API) Wisenet open platform |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian |
| Edge Storage | Micro SD/SDHC/SDXC 2slot Max. 1TB (512GB * 2) |
| Memory | 4GB RAM, 512MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C ~ +55°C(-40°F ~ +131°F) / 0 ~ 95% RH(non-condensing) |
| Storage Temperature / Humidity | -30°C ~ +60°C(-22°F ~ +140°F)/ 0~90% RH |
| Input Voltage | PoE+(IEEE802.3at, Class4), 12VDC |
| Power Consumption | PoE+: Max 24.5W, typical 11.3W 12VDC: Max 22.0W, typical 10.4W Power redundancy failover |
| Mechanical | |
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | Ø253x170mm(9.96"x6.69"), 2900g(6.39lb) |
| Compatible Conduit hole / Gangbox | 3/4"(M25) / Single, Double, 4"Octagon, Square |
| Hanging Mount (Dome) | SBP-276HMW |
| Certifications & Standards | |
| EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA - EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835 |
| Environment | IEC/EN 63000 IEC/EN 60529 IP66, IEC/EN 62262 IK10 NEMA 250 type 4X |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 52.2m(171.25ft) |
| Observe (63PPM/ 19PPF) | 20.9m(68.50ft) |
| Recognize (125PPM/ 38PPF) | 10.4m(34.25ft) |
| Identify (250PPM/ 76PPF) | 5.2m(17.13ft) |
