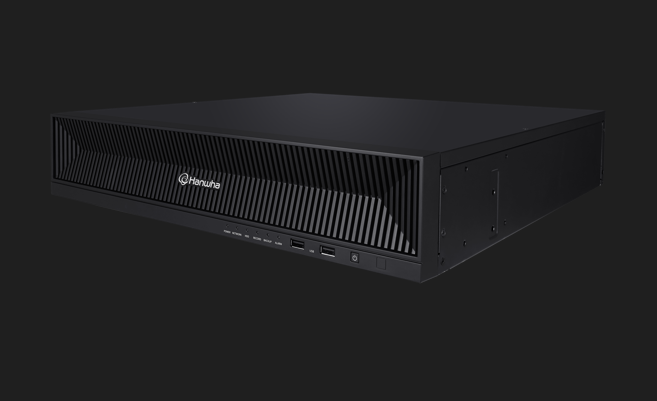

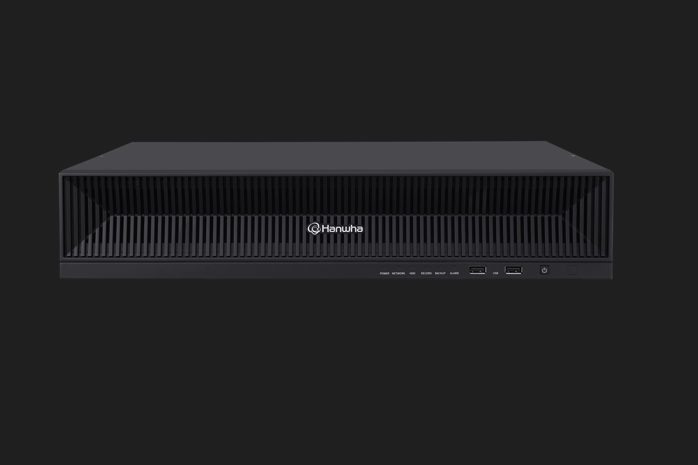

Hanwha - PRN-1600B2-48TB - 16CH 8K 256Mbps H.265 AI NVR 48TB
Part number:
PRN-1600B2-48TB
Price:
16CH 8K 256Mbps H.265 AI NVR
Features:
- 8K NVR, up to 16 channels, License-free recording
- Supports H.265, H.264, & MJPEG CODECs, up to 32MP
- Up to 8 fixed internal SATA HDDs (10TB max per HDD), RAID 5 & 6 recording
- ARB (Automatic Recovery Backup)
- 250 Mbps recording / up to 64 Mbps playback
- Dual stream recording, WiseStream technology
- HDMI/VGA dual display with local 4K display resolution (HDMI1: 3840x2160(30Hz), HDMI2: 1920x1080(60Hz), max. resolution of 32MP recording/display
- Add AI search capabilities to select P, X and Q series Hanwha Cameras
- AI search including Best Shot, Attribute), object detection and classification, License plate detection and search (Wisenet AI cameras only)
- web UI 2.0 (no plugins required), fisheye dewarping, dynamic Layout and Dynamic Event
- Easy connection using P2P service (QR code connect) with Wisenet Mobile APP (for Android and IOS) and the free-of-charge Wisenet Viewer
- NDAA & FCC Compliant
| Display | ||
| Network camera | Inputs | Max. 16CH |
| Resolution | 32MP ~ CIF | |
| Protocols | SUNAPI, ONVIF | |
| Decoding | Local Display | [Dual Display] HDMI 1: 3840 x 2160 (30Hz) HDMI2: 1920x1080 (60Hz) |
| Multi Screen Display | [Local Monitor]
| |
| Resolution | 32M(15fps, H.265Only), 12M(30fps, H.265Only), 8.3M(120fps), 1080p(480fps), 720P(960fps), D1(1920fps) | |
| Performance | ||
| Operating System | Embedded | Linux |
| Record | Compression | H.265, H.264,MJPEG |
| Recording Bandwidth | Distributed mode : Up to 250 Mbps Normal mode : Up to 150 Mbps RAIDmode : Up to 250 Mbps | |
| Resolution | 32MP ~ CIF | |
| Mode | Normal, DualStream, Schedule(Continuous/Event), Event(Pre/Post), Bookmark | |
| Event Trigger | Alarm Input,Video Loss, CameraEvent(Sensor, MD, VideoAnalytics, Defocus, Audio),Dynamic Event, UserEvent | |
| Event Action | e-Mail, EventPush, PTZ Preset,Alarm Out, Buzzer,Monitor Out, FTP,SUNAPI Command, Shotdown | |
| Search & Play | Playback Bandwidth | RAID Mode: Max. 64Mbps Non-RAID Mode : Max. 32Mbps |
| User | Max. 4 Users (Local1, Remote 3) | |
| Simultaneous playback | Max. 64CH(Local 16CH, Remote16CH per user) | |
| Fisheye Dewarping | Support (Local1CH), CMS | |
| Mode | Date &Time(Calendar), Event list,Text Search, SmartSearch | |
| Resolution | CIF ~ 32MP (Upto H.264 9MP,H.265 32MP) | |
| Playback Control | Fast/Slow Forward/ Backward, Moveone step Up / Down | |
| Storage | Supported HDD | Up to 10TB |
| HDD Slot | SATA 8ea(Max. 80TB, Non-RAID mode) | |
| External | iSCSI storage | |
| RAID | RAID-5/6(Single, 1 Array) | |
| Backup | File backup | BU/Exe/AVI(GUI), JPG/AVI(Network) |
| Function | Multi channel(Up to 16CH) Play,Date-Time/Title display | |
| Network | ||
| Protocol | IPv4, IPv6,TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP,NTP, HTTP, DHCP(Server, Client), SMTP,ICMP, IGMP, ARP,DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Hanwha DDNS | |
| Transmission Bandwidth | Max. 250Mbps | |
| Audio | Input/Output | 16 CH(network) |
| Compression | G.711, G.726, AAC(16/48KHz) |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), LiveUnicast(10), Multicast(20) | |
| Security | IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha TechwinRoot CA), Signedfirmware | |
| Web viewer | Supported OS | Windows 10, macOS 10.13 |
| Supported browser | Google Chrome,Microsoft Edge, Mac Safari | |
| Viewer Software | WAVE, SSM,Webviewer, Smart Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd partyVMS | |
| Functions | ||
| Camera Setup | Register | Auto, Manual |
| Item | IP address, Add profile edit,Bitrate, Compression, GOP,Quality, Camera MD setup (4, 8 pointpolygon) Camera videosetup (Simple focus,Brightness/Contrast, Flip/Mirror, IRIS,WDR, D&N, SSNR,Shutter, SSDR, DIS),Fisheye Dewarping Mode, Hallway View Setup, CameraWebpage | |
| PTZ | Control | Via GUI, Webviewer, SPC-2000 |
| Preset | 300 Presets | |
| Smart phone | Support Model | iOS, Android |
| Protocol Support | RTP, RTSP, HTTP,CGI(SUNAPI) | |
| Control | Live 16CH(Multi-Profile Support), Playback 4CH | |
| Max. Remote Users | Search(3), LiveUnicast(10) | |
| Redundancy | Failover | N+1 |
| ARB | Support | |
| Easy configuration | P2P(QR code) | |
| Interface | ||
| Front | Indicator | HDD, Alarm, Power, Record,Backup, Network, RAID |
| Storage | OK | |
| Reset | OK | |
| HDD Key Lock | OK | |
| HDMI | 2EA ( Playback/Setup → HDMI1) HDMI1 : 3840x2160 30Hz HDMI2 : 1920x1080 60Hz | |
| Audio | Out 1EA(3.5mm Audio Jack) | |
| Ethernet | RJ-45 3EA (LAN/WAN, 1Gbps) | |
| Alarm | In 8EA, Out 4EA | |
| USB | 4EA(Front 2 x USB 2.0, Rear2 x USB 3.0) | |
| Power inlet | AC 1EA | |
| System | ||
| Log | Log List | Max. 100,000(System Log, EventLog each) |
| System Control | Mouse, Keyboard, Web, Controller (SPC-2000) | |
| Language | English, French,German, Italian, Spanish,Russian, Turkish, Polish,Dutch, Czech, Portuguese, Danish, Rumanian, Serbian,Croatian, Hungarian, Greek,Norwegian, Finnish, Korean, Chinese, Japanese, Thai,Vietnamese | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Electrical | ||
| Power Input | 100 ~ 240 VAC±10%; 50/60 Hz,2.1A | |
| Power Consumption | Max. 205W (With 10TB HDDs 8EA) | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 438 x 86 x 434.9 mm | |
| Weight | Approx. 9.1Kg(20.1 lb, HDD not included) |
