Hanwha - PRN-1600B2 - 16 Channel AI Network Video Record
Product Overview
The Hanwha PRN-1600B2 is a 16-channel 8K network video recorder supporting up to 32MP cameras with 250 Mbps recording and 64 Mbps playback. It uses H.265/H.264/MJPEG compression with WiseStream for efficient storage and bandwidth use. Key features include AI search (Best Shot/Attribute), license plate search, RAID 5/6 storage protection, and ARB automatic recovery backup, supporting both AI and select non-AI Hanwha cameras.
Key Configuration
• Channels: up to 16 IP camera inputs; supports resolution up to 32MP
• Recording bandwidth: 250 Mbps (distributed/RAID mode), playback bandwidth: up to 64 Mbps (RAID mode)
• HDD bays: 8 fixed internal SATA, up to 10TB per HDD (max 80TB); RAID 5/6 support (single array)
• Network: 3 × RJ-45 1Gbps (LAN/WAN)
Key Features
8K 16-channel NVR with embedded Linux, supporting up to 32MP recording and multiple recording modes (continuous, event, dual stream, pre/post). It includes advanced event handling such as alarm I/O (8 in / 4 out), video loss, analytics triggers, and actions like PTZ control, FTP, email, and shutdown. Playback supports up to 64 channels, with fisheye dewarping locally and via CMS. AI search features include best shot, attributes, object/plate detection, and expanded support for select non-AI Hanwha cameras. Hardware includes dual HDMI outputs (4K + 1080p), USB 2.0/3.0 ports, plugin-free Web UI 2.0, P2P QR mobile access, and redundancy via ARB and N+1 failover. It is NDAA and FCC compliant.
Technical Context
Supports IPv4/IPv6 and standard network protocols including RTSP, HTTPS, SNMP, ONVIF Profile S, and SUNAPI for integration. Security features include IP filtering, 802.1X authentication, encrypted communications, signed firmware, and device certificates (Hanwha root CA). Audio supports 16-channel network input with G.711/G.726/AAC compression, and external storage via iSCSI is supported. PTZ control is available through GUI, web viewer, or SPC-2000 controller with up to 300 presets. Compatible with Windows 10 and macOS (Chrome, Edge, Safari) via plugin-free web viewer.
Installation Notes

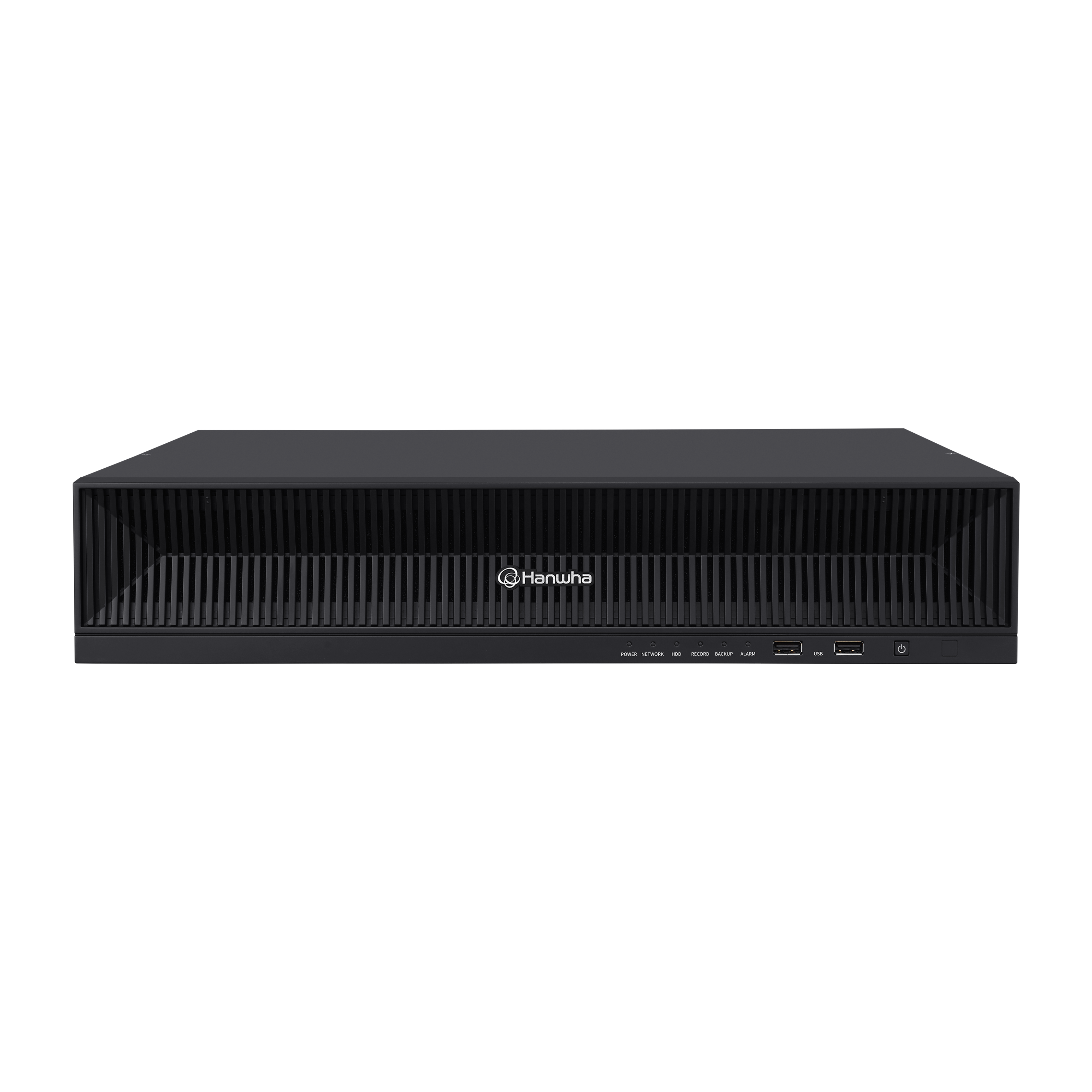

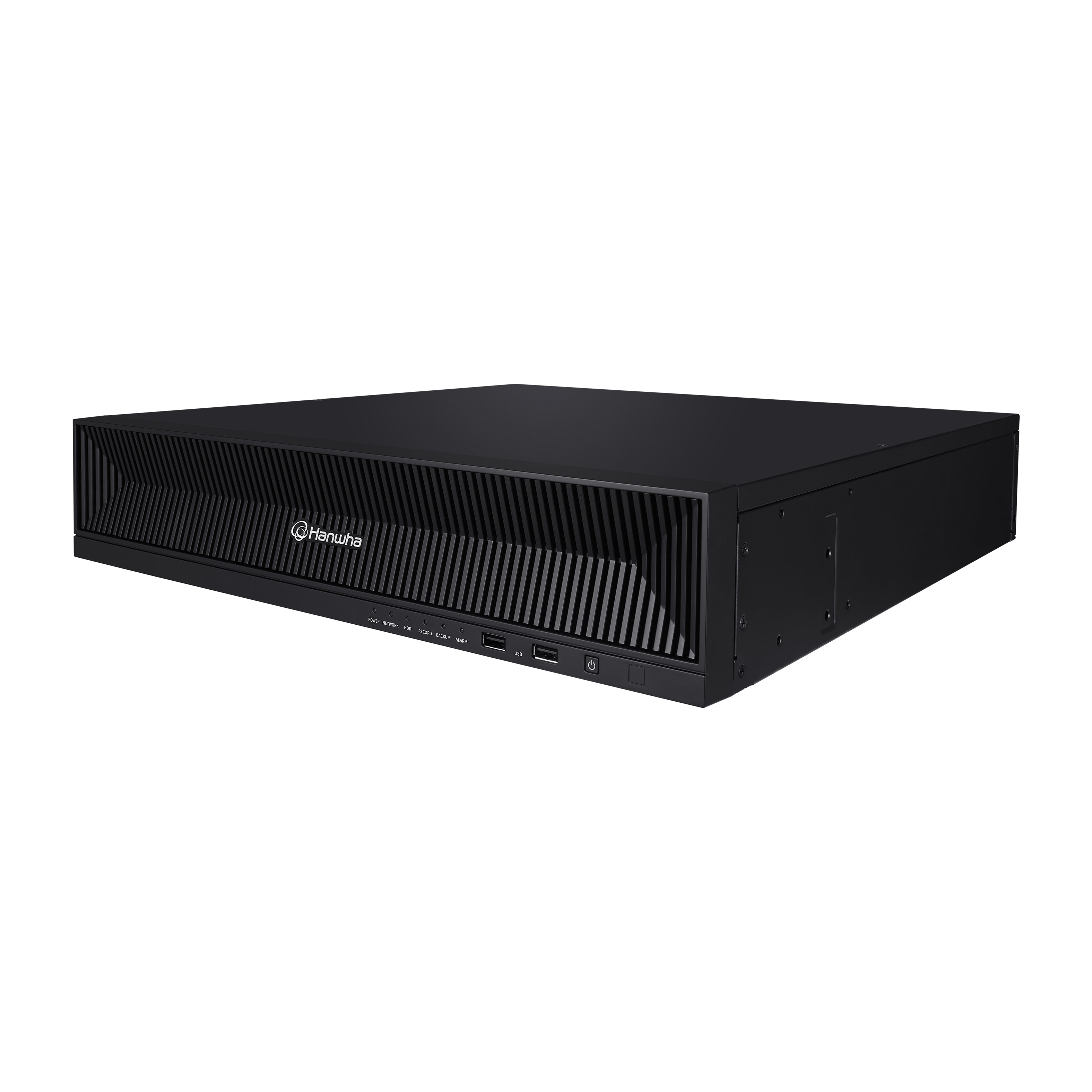

Black metal 16-channel NVR (438 × 86 × 434.9 mm, ~9.1 kg without HDDs) designed for rack installation. It operates from 0°C to 40°C with 20–85% humidity support. Power input is 100–240 VAC, with up to 205W consumption (with 8×10TB HDDs). The front panel includes status LEDs (HDD, alarm, power, record, backup, network, RAID), plus HDD key lock and reset button. No built-in PoE ports are included, so external PoE switches are required for camera connectivity.
| Display | |
|---|---|
| Network Camera Inputs | Max. 16CH |
| Network Camera Resolution | 32MP ~ CIF |
| Network Camera Protocols | SUNAPI, ONVIF |
| Performance | |
| Operating System | Embedded Linux |
| Record | |
| Compression | H.265, H.264, MJPEG |
| Recording Bandwidth | Distributed mode: Up to 250 Mbps Normal mode: Up to 150 Mbps RAID mode: Up to 250 Mbps |
| Recording Resolution | 32MP ~ CIF |
| Recording Mode | Normal, Dual Stream, Schedule (Continuous/Event), Event (Pre/Post), Bookmark |
| Event Trigger | Alarm Input, Video Loss, Camera Event (Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown |
| Search & Play | |
| Playback Bandwidth | RAID Mode: Max. 64Mbps Non-RAID Mode: Max. 32Mbps |
| Max. Users | Max. 4 Users (Local 1, Remote 3) |
| Simultaneous Playback | Max. 64CH (Local 16CH, Remote 16CH per user) |
| Search Mode | Date & Time (Calendar), Event list, Text Search, Smart Search |
| Playback Resolution | CIF ~ 32MP (Up to H.264 9MP, H.265 32MP) |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down |
| Storage | |
| Supported HDD Capacity | Up to 10TB per HDD |
| HDD Slots | SATA 8ea (Max. 80TB, Non-RAID mode) |
| External Storage | iSCSI storage |
| RAID | RAID-5/6 (Single, 1 Array) |
| Backup | |
| File Backup Format | BU/Exe/AVI (GUI), JPG/AVI (Network) |
| Backup Function | Multi-channel (Up to 16CH) Play, Date-Time/Title display |
| Network | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI (Server, Client) |
| DDNS | Hanwha DDNS |
| Transmission Bandwidth | Max. 250Mbps |
| Audio | |
| Input / Output | 16CH (network) |
| Compression | G.711, G.726, AAC (16/48KHz) |
| Max. Remote Users | Search (3), Live Unicast (10), Multicast (20) |
| Security | |
| Security Features | IP address filtering, User access Log, 802.1x, Encryption Device certificate (Hanwha Techwin Root CA), Signed firmware |
| Web Viewer | |
| Supported OS | Windows 10, macOS 10.13 |
| Supported Browser | Google Chrome, Microsoft Edge, and Mac Safari |
| Viewer Software | |
| Supported Software | WAVE, SSM, Webviewer, Smart Viewer, Wisenet mobile Support CGI (SUNAPI) for integration with 3rd-party VMS |
| Functions | |
| Camera Registration | Auto, Manual |
| Camera Setup Items | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage |
| PTZ | |
| Control | Via GUI, Webviewer, SPC-2000 |
| Preset | 300 Presets |
| Smartphone | |
| Support Model | iOS, Android |
| Protocol Support | RTP, RTSP, HTTP, CGI (SUNAPI) |
| Control | Live 16CH (Multi-Profile Support), Playback 4CH |
| Max. Remote Users | Search (3), Live Unicast (10) |
| Redundancy | |
| Failover | N+1 |
| ARB | Support |
| Easy Configuration | |
| Easy Configuration | P2P (QR code) |
| Interface | |
| Front Indicators | HDD, Alarm, Power, Record, Backup, Network, RAID |
| Front Storage | OK |
| Front Reset | OK |
| Front HDD Key Lock | OK |
| HDMI | 2EA (Playback/Setup → HDMI1) HDMI1: 3840x2160 30Hz HDMI2: 1920x1080 60Hz |
| Audio | Out 1EA (3.5mm Audio Jack) |
| Ethernet | RJ-45 3EA (LAN/WAN, 1Gbps) |
| Alarm | In 8EA, Out 4EA |
| USB | 4EA (Front 2 x USB 2.0, Rear 2 x USB 3.0) |
| Power Inlet | AC 1EA |
| System | |
| Log List | Max. 100,000 (System Log, Event Log each) |
| System Control | Mouse, Keyboard, Web, Controller (SPC-2000) |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Romanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese |
| Environmental | |
| Operating Temperature | 0°C to +40°C (32°F to 104°F) |
| Operating Humidity | 20% ~ 85% RH |
| Electrical | |
| Power Input | 100 ~ 240 VAC ±10%; 50/60 Hz, 2.1A |
| Power Consumption | Max. 205W (With 10TB HDDs 8EA) |
| Mechanical | |
| Color / Material | Black / Metal |
| Dimension (W x H x D) | 438 x 86 x 434.9 mm |
| Weight | Approx. 9.1kg (20.1 lb, HDD not included) |
