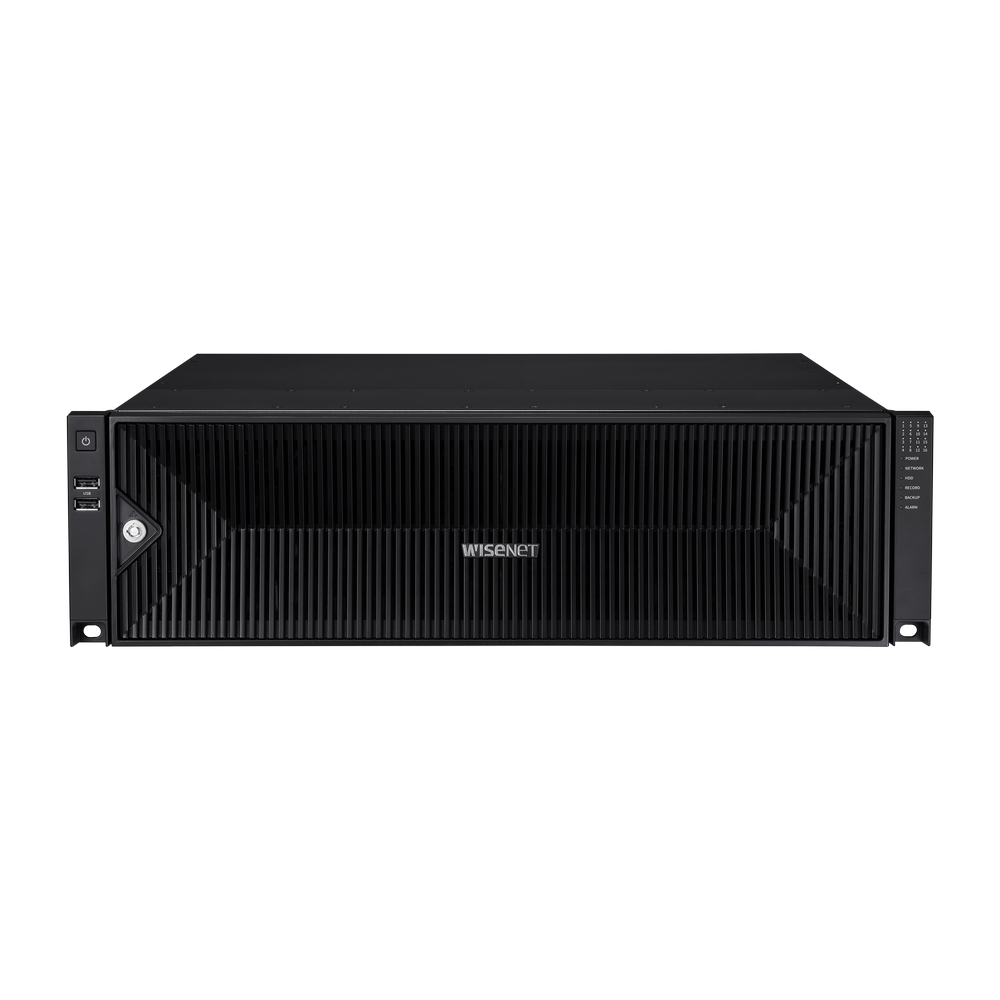

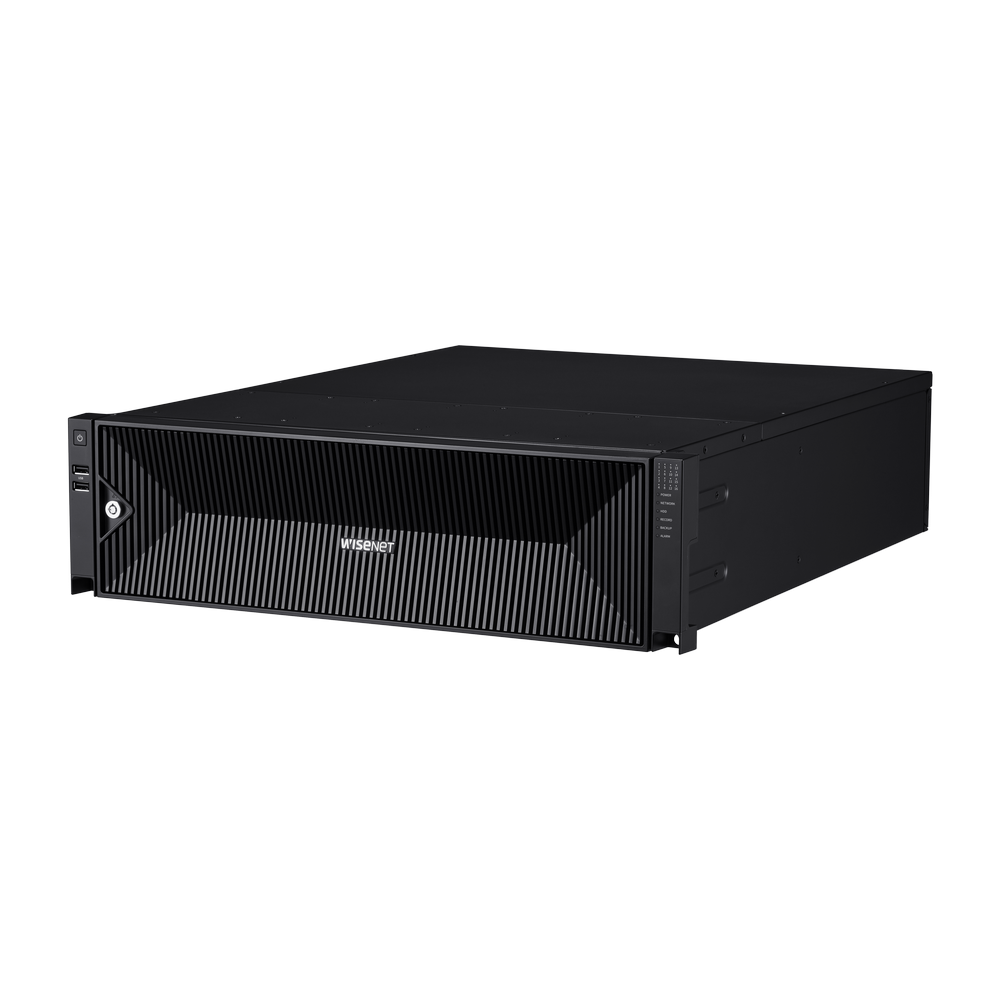

Hanwha - PRN-3200B4-12TB - 8K NVR (Intel based), 12TB RAW, 32 channels, H.265, H.264, MJPEG, 16 fixed internal SATA HDDs (10TB max per HDD), RAID 5 & 6, ARB (Automatic Recovery Backup), 400 Mbps recording / up to 32 Mbps playback, Dual stream recordi

Hanwha - PRN-3200B4-12TB - 8K NVR (Intel based), 12TB RAW, 32 channels, H.265, H.264, MJPEG, 16 fixed internal SATA HDDs (10TB max per HDD), RAID 5 & 6, ARB (Automatic Recovery Backup), 400 Mbps recording / up to 32 Mbps playback, Dual stream recordi

Name: Hanwha - PRN-3200B4-12TB - 8K NVR (Intel based), 12TB RAW, 32 channels, H.265, H.264, MJPEG, 16 fixed internal SATA HDDs (10TB max per HDD), RAID 5 & 6, ARB (Automatic Recovery Backup), 400 Mbps recording / up to 32 Mbps playback, Dual stream recordi
Brand: Hanwha Vision
SKU: PRN-3200B4-12TB

Part number:

PRN-3200B4-12TB

Price:

Dealers only

Add to Quote/Project Registration

Description Specifications Downloads

Features:

8K NVR, up to 32channels, License-free recording
Supports H.265, H.264, & MJPEG CODECs,
Up to 16 fixed internal SATA HDDs (10TB max per HDD), RAID 5 & 6 recording
ARB (Automatic Recovery Backup)
400 Mbps recording / up to 32 Mbps playback
Dual stream recording, WiseStream technology
HDMI/VGA dual display, max. resolution of 32MP recording/display
Add AI search capabilities to select P, X and Q series Hanwha Cameras
AI search (Wisenet AI cameras only)
web UI 2.0 (no plugins required)
P2P / QR Code for easy connection to Wisenet Viewer / Wisenet Mobile
NDAA & FCC Compliant

Display
Network camera	Inputs	Max. 32CH
	Resolution	32MP ~ CIF
	Protocols	Wisenet, ONVIF

	Mode	Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark
	Event Trigger	Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event
	Event Action	e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shotdown
Search & Play	Playback Bandwidth	Max. 64Mbps(32CH simultaneously)
	User	Max. 4 Users (Local 1, Remote 3)
	Simultaneous playback	Max. 80CH(Local 32CH, Remote 16CH per user)
	Fisheye Dewarping	Support (Local 1CH), CMS
	Mode	Date & Time(Calendar), Event list, Text Search, Smart Search
	Resolution	CIF ~ 32MP (Up to H.264 9MP, H.265 32MP)
	Playback Control	Fast/Slow Forward / Backward, Move one step Up / Down
Storage	Supported HDD	Up to 10TB
	HDD Slot	SATA 16ea(Max. 160TB, Non-RAID mode), Hot swap
	External	iSCSI storage
	RAID	RAID-5/6(Array Size : 8 HDD x 2 Array)
Backup	File backup	BU/Exe/AVI(GUI), JPG/AVI(Network)
Backup	Function	Multi channel(Up to 16CH) Play, Date-Time/Title display
Network
Protocol		IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
DDNS		Hanwha DDNS
Transmission Bandwidth		Max. 400Mbps
Audio	Input/Output	32 CH(network)
Audio	Compression	G.711, G.726, AAC(16/48KHz)

Multi Screen Display

[Local Monitor]

- Dynamic layout, Virtual channel view

- Clone Mode : Up to 36 Division

- Expand Mode : HDMI1 up to 36 Div. HDMI2 up to 16 Div.

[Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9

Performance
Operating System	Embedded	Linux

Recording Bandwidth

Distributed mode : Up to 400 Mbps

Normal mode : Up to 150 Mbps

{RAID mode}

Normal : Up to 400 Mbps

Degrade/ Rebuild : Up to 320 Mbps

Max Remote Users		Search(3), Live Unicast(10), Multicast(20)
Security		IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware
Web viewer	Supported OS	Windows 10, macOS 10.13
Web viewer	Supported browser	Google Chrome, Microsoft Edge, Mac Safari
Viewer Software		SSM, Webviewer, Smart Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS
Functions
Camera Setup	Register	Auto, Manual
Camera Setup	Item	IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
PTZ	Control	Via GUI, Webviewer, SPC-2000
PTZ	Preset	300 Presets
Smart phone	Support Model	iOS, Android
	Protocol Support	RTP, RTSP, HTTP, CGI(SUNAPI)
	Control	Live 16CH(Multi-Profile Support), Playback 4CH
	Max. Remote Users	Search(3), Live Unicast(10)
Redundancy	Failover	N+1
Redundancy	ARB	Support
Easy configuration		P2P(QR code)

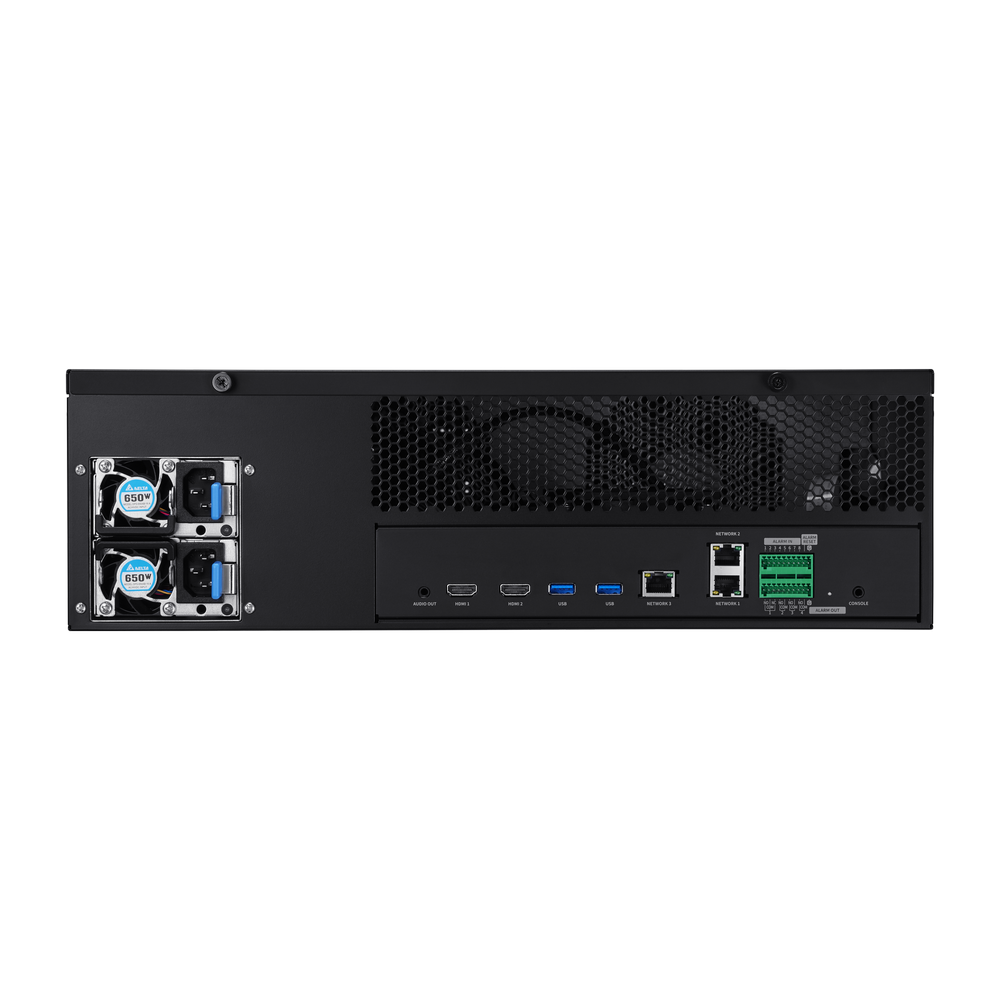

Interface
Front	Indicator	HDD, Alarm, Power, Record, Backup, Network, RAID
Storage		OK
Reset		Power button
HDD Key Lock		OK
HDMI		2EA
Audio		Out 1EA (3.5mm Audio Jack)
Ethernet		RJ-45 3EA (LAN/WAN, 1Gbps)
Alarm		In 8EA, Out 4EA
USB		4EA(Front 2 x USB 2.0, Rear 2 x USB 3.0)
Power inlet		AC 1EA
System
Log	Log List	Max. 100,000 (System Log, Event Log each)
System Control		Mouse, Keyboard, Web, Controller (SPC-2000)
Language		English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese
Environmental
Operating Temperature		0°C to +40°C(32℉ to 104℉)
Operating Humidity		20% ~ 85% RH
Electrical
Power Input		100 ~ 240 VAC ±10%; 50/60 Hz
Power Consumption		Max. 285W (972.5 BTU with HDD 16ea)
Mechanical
Color / Material		Black / Metal
Dimension (WxHxD)		440.0 x 132.0 x 571.1mm
Weight		Approx. 13.6Kg(30 lb, HDD not included)
