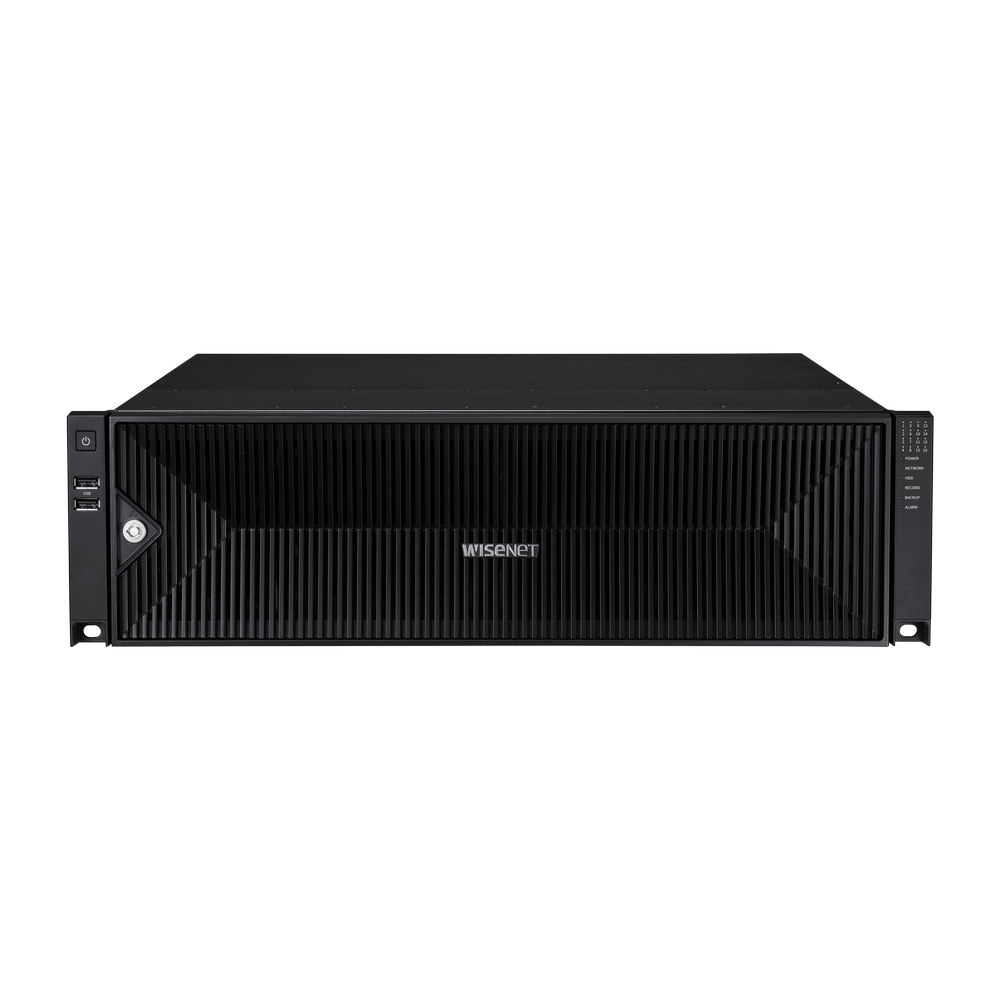

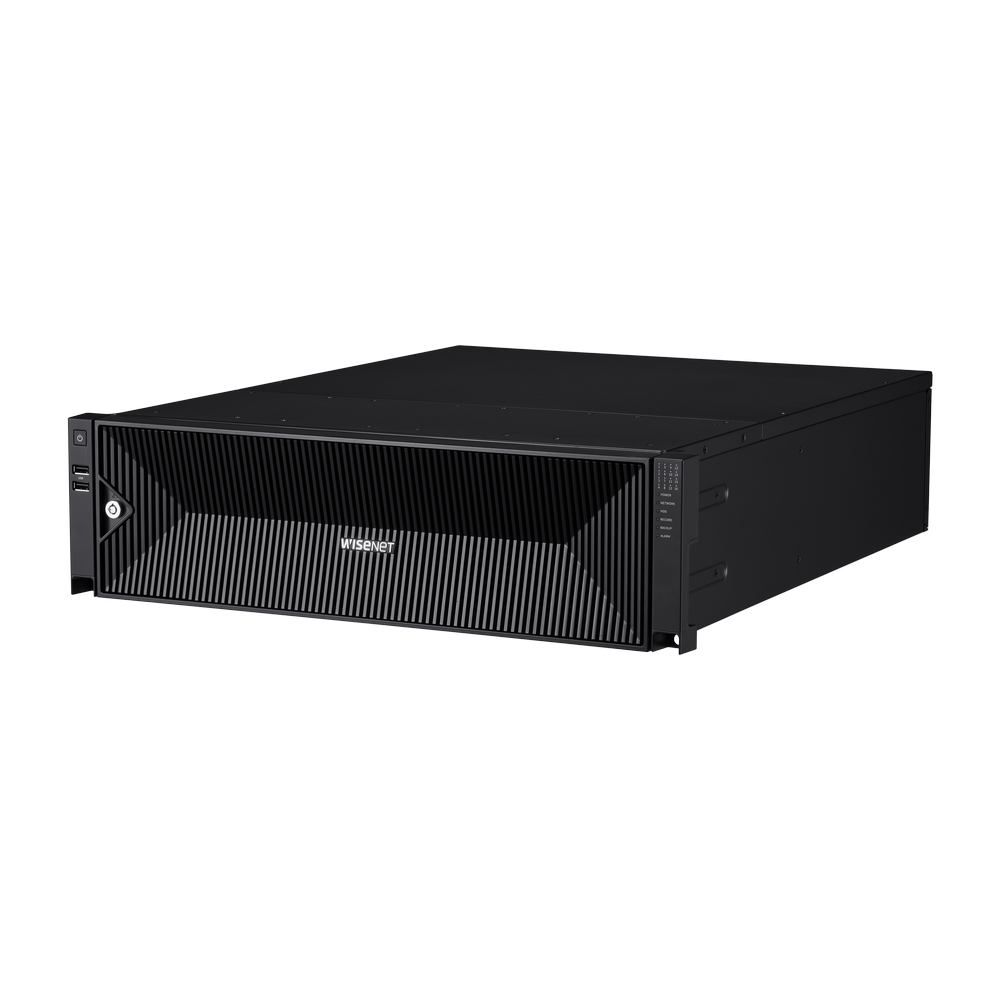

Hanwha - PRN-3200B4-24TB - 32CH 8K 400Mbps H.265 AI NVR With 24TB HDD
Part number:
PRN-3200B4-24TB
Price:
Features:
- 8K NVR, up to 32channels, License-free recording
- Supports H.265, H.264, & MJPEG CODECs,
- Up to 16 fixed internal SATA HDDs (10TB max per HDD), RAID 5 & 6 recording
- ARB (Automatic Recovery Backup)
- 400 Mbps recording / up to 32 Mbps playback
- Dual stream recording, WiseStream technology
- HDMI/VGA dual display, max. resolution of 32MP recording/display
- Add AI search capabilities to select P, X and Q series Hanwha Cameras
- AI search (Wisenet AI cameras only)
- web UI 2.0 (no plugins required)
- P2P / QR Code for easy connection to Wisenet Viewer / Wisenet Mobile
- NDAA & FCC Compliant
| Display | ||
| Network camera | Inputs | Max. 32CH |
| Resolution | 32MP ~ CIF | |
| Protocols | Wisenet, ONVIF |
| Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Trigger | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shotdown | |
| Search & Play | Playback Bandwidth | Max. 64Mbps(32CH simultaneously) |
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | Max. 80CH(Local 32CH, Remote 16CH per user) | |
| Fisheye Dewarping | Support (Local 1CH), CMS | |
| Mode | Date & Time(Calendar), Event list, Text Search, Smart Search | |
| Resolution | CIF ~ 32MP (Up to H.264 9MP, H.265 32MP) | |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down | |
| Storage | Supported HDD | Up to 10TB |
| HDD Slot | SATA 16ea(Max. 160TB, Non-RAID mode), Hot swap | |
| External | iSCSI storage | |
| RAID | RAID-5/6(Array Size : 8 HDD x 2 Array) | |
| Backup | File backup | BU/Exe/AVI(GUI), JPG/AVI(Network) |
| Function | Multi channel(Up to 16CH) Play, Date-Time/Title display | |
| Network | ||
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Hanwha DDNS | |
| Transmission Bandwidth | Max. 400Mbps | |
| Audio | Input/Output | 32 CH(network) |
| Compression | G.711, G.726, AAC(16/48KHz) |
| Multi Screen Display | [Local Monitor] - Dynamic layout, Virtual channel view - Clone Mode : Up to 36 Division - Expand Mode : HDMI1 up to 36 Div. HDMI2 up to 16 Div. [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 |
| Performance | ||
| Operating System | Embedded | Linux |
| Recording Bandwidth | Distributed mode : Up to 400 Mbps Normal mode : Up to 150 Mbps {RAID mode} Normal : Up to 400 Mbps Degrade/ Rebuild : Up to 320 Mbps |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware | |
| Web viewer | Supported OS | Windows 10, macOS 10.13 |
| Supported browser | Google Chrome, Microsoft Edge, Mac Safari | |
| Viewer Software | SSM, Webviewer, Smart Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS | |
| Functions | ||
| Camera Setup | Register | Auto, Manual |
| Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage | |
| PTZ | Control | Via GUI, Webviewer, SPC-2000 |
| Preset | 300 Presets | |
| Smart phone | Support Model | iOS, Android |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live 16CH(Multi-Profile Support), Playback 4CH | |
| Max. Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | Failover | N+1 |
| ARB | Support | |
| Easy configuration | P2P(QR code) | |

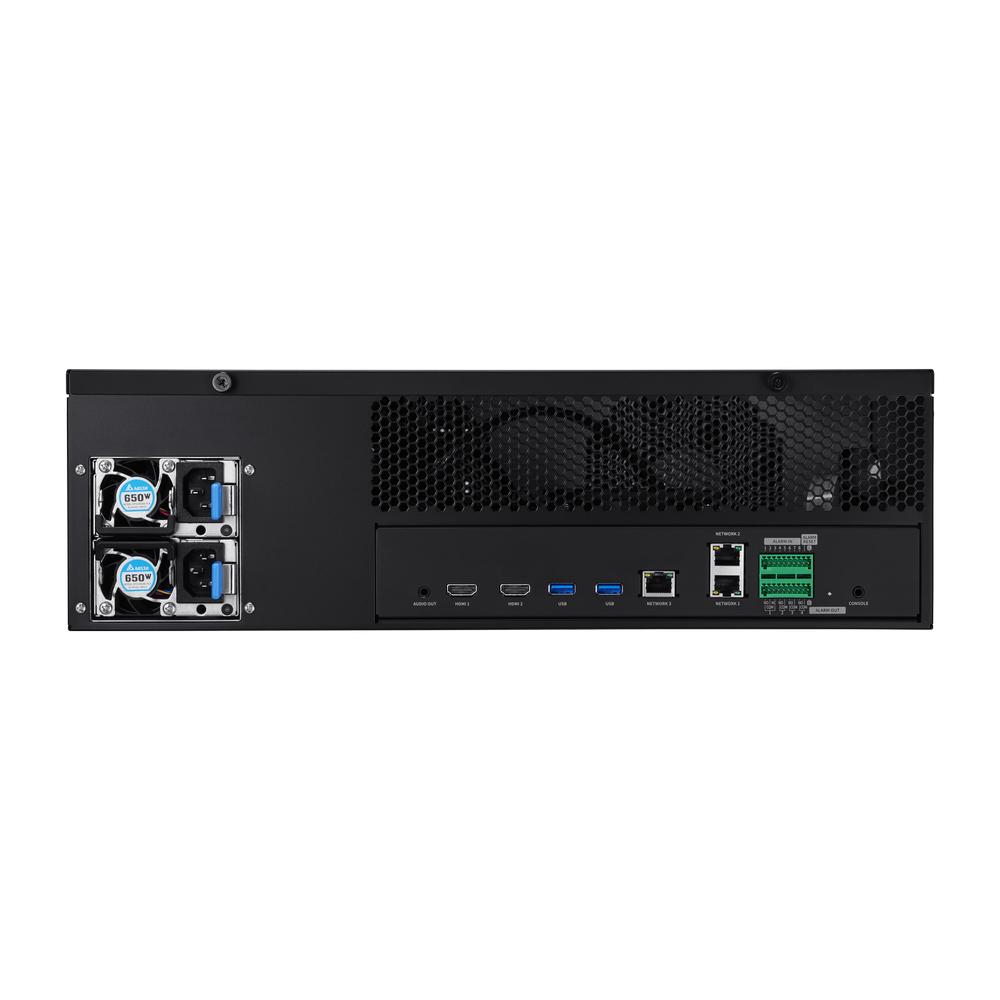

| Interface | ||
| Front | Indicator | HDD, Alarm, Power, Record, Backup, Network, RAID |
| Storage | OK | |
| Reset | Power button | |
| HDD Key Lock | OK | |
| HDMI | 2EA | |
| Audio | Out 1EA (3.5mm Audio Jack) | |
| Ethernet | RJ-45 3EA (LAN/WAN, 1Gbps) | |
| Alarm | In 8EA, Out 4EA | |
| USB | 4EA(Front 2 x USB 2.0, Rear 2 x USB 3.0) | |
| Power inlet | AC 1EA | |
| System | ||
| Log | Log List | Max. 100,000 (System Log, Event Log each) |
| System Control | Mouse, Keyboard, Web, Controller (SPC-2000) | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Electrical | ||
| Power Input | 100 ~ 240 VAC ±10%; 50/60 Hz | |
| Power Consumption | Max. 285W (972.5 BTU with HDD 16ea) | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 440.0 x 132.0 x 571.1mm | |
| Weight | Approx. 13.6Kg(30 lb, HDD not included) |
