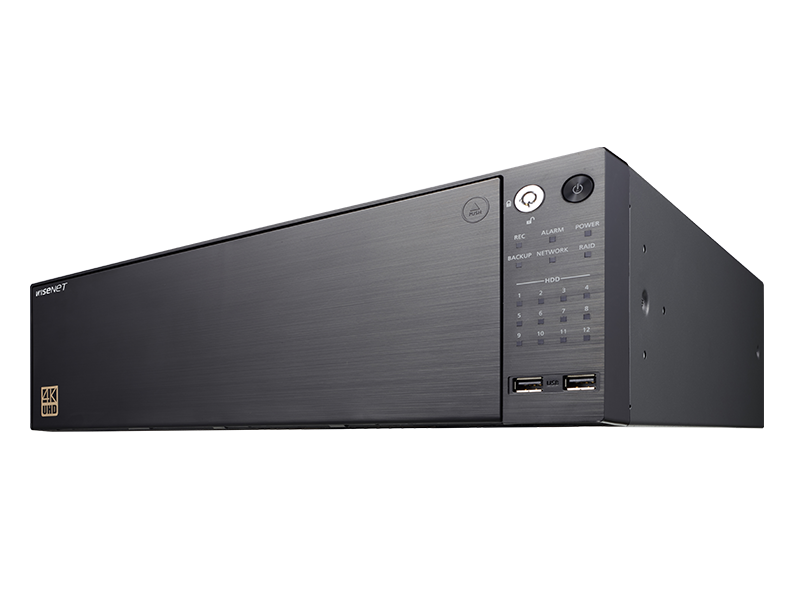

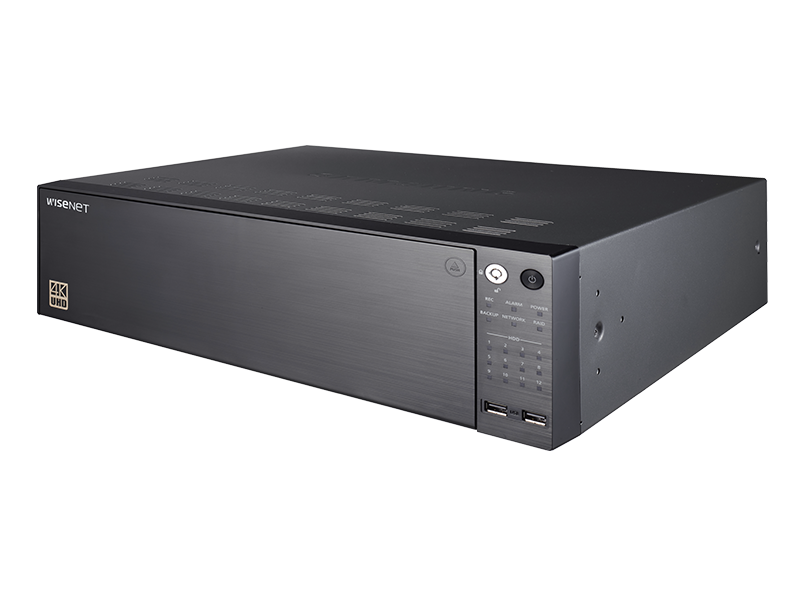

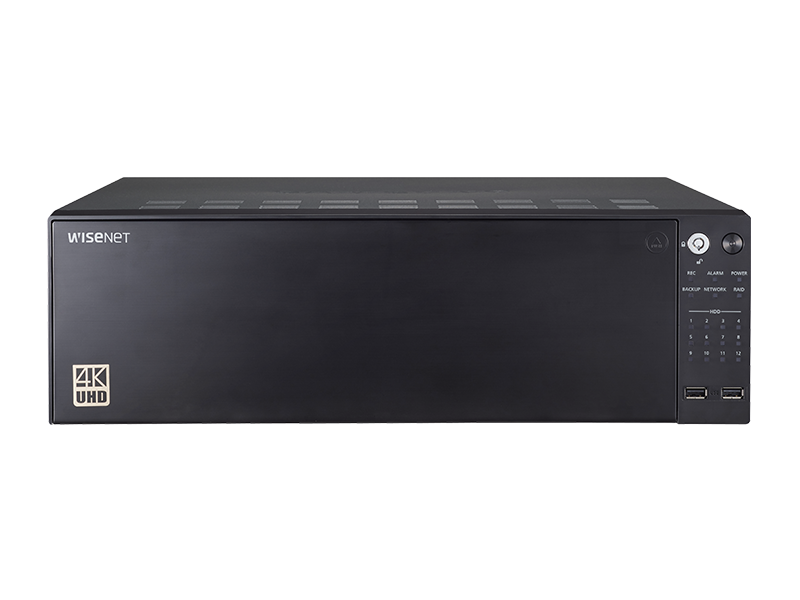

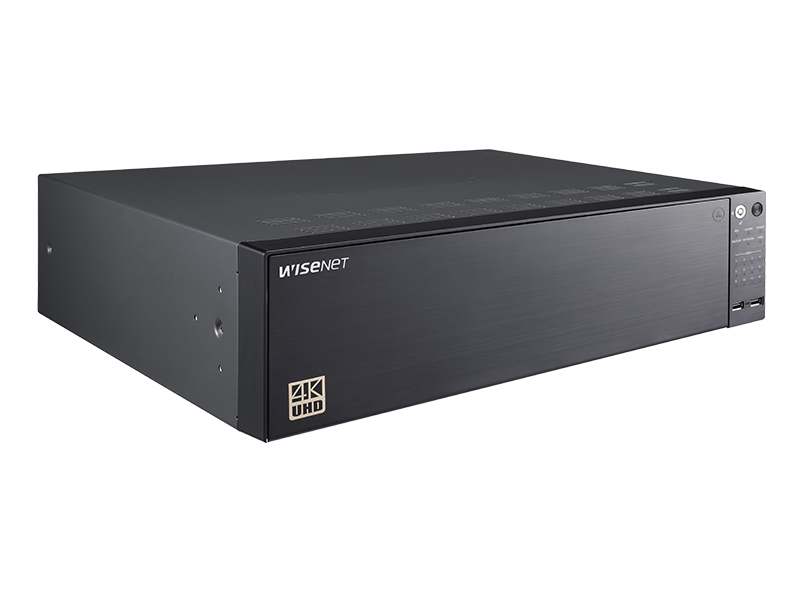

Samsung - PRN-4011-40TB - 64CH 4K 400Mbps H.265 NVR
  • Up to 64 channels, Maximum 12 megapixel resolution
  • 400Mbps network camera recording
  • Support 4K video out on HDMI monitor
  • Support dual monitor video out
  • H.265, H.264, MJPEG compression
  • WiseStream support
  • Maximum 12 internal HDDs(96TB)
  • Support RAID 5/6
  • ARB & failover(N+1) support
Part number:
PRN-4011-40TB
Price:

Hanwha’s PRN-4011 is a 64CH network video recorder that will allow the connection of up to 64 cameras with up to 12MP resolution each, triple codec recording and playback H.265/H.264/MJPEG, dual monitor output, 4K HDMI output, 12 hot swap hard disc drives and redundant power supplies, while supporting high level functions such as RAID 5/6, four gigabit ethernet ports and advanced video motion detection, it also supports a local monitor for ease of use, automatic camera registration, ONVIF cameras and mobile apps for smart phone and tablet connectivity.

Display
Network camera
Inputs Max. 64CH
Resolution 12MP ~ CIF
Protocols Wisenet, ONVIF
Decoding
Local Display [Clone Display]
HDMI: 3840 x 2160, 1920x1080, 1280x720
VGA: 1920x1080, 1280x720
Resolution 12M (30fps), 8.3M(120fps), 1080p(480fps), 720P(960fps), D1(1920fps)
Performance
Record
Compression H.265, H.264, MJPEG
Recording Bandwidth Max. 400Mbps
Resolution 12MP ~ CIF
Mode Normal, Schedule(Continuous/Event), Event (Pre/Post)
Event Trigger Alarm Input, Video Loss, Camera Event(Alarm, MD, Video Analytics, Defocus)
Event Action e-Mail, PTZ Preset, Alarm Out, Buzzer, Monitor Out
Search & Play
Playback Bandwidth Max. 32Mbps(16CH simultaneously)
User Max. 4 Users (Local 1, Remote 3)
Simultaneous playback Max. 16CH(Network)
Max. 8CH(Local Monitor)
Fisheye Dewarping WEB / CMS
Storage
Supported HDD Up to 8TB
HDD Slot 12HDD
External iSCSI storage(Max. 192TB)
RAID RAID-5/6(Array Size : 6-HDD x 2 Array)
Backup
File backup BU/Exe(GUI), JPG/AVI(Network)
Function Multi channel(Upto 8CH) Play, Date-Time/Title display
Network
Protocol IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client)
DDNS Wisenet DDNS
Transmission Bandwidth Max. 400Mbps
Audio
Input/Output 64 CH(network)
Compression G.711, G.726, AAC(16/48KHz)
Audio Communication 2-Way
Max Remote Users Search(3), Live Unicast(10), Multicast(20)
Security IP address filtering, User access Log, 802.1x, Encryption
Web viewer
Supported OS Windows 7, 8, 10, Mac OS X 10.9. 10.10. 10.11
Supported browser Plug-in free web viewer
- Supported Browser: Google Chrome 47, MS Edge 20
Plug-in Webviewer
- Supported MS Explore 11, Apple Safari 9 * Mac OS X only
Viewer Software SSM, Webviewer, Smart Viewer, Wisenet mobile
Support SDK/CGI(SUNAPI) for integration to 3'rd party VMS
Functions
Camera Setup
Item IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup
Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage
PTZ
Control Via GUI, Webviewer, SPC-2000
Smart phone
Support Model iOS, Android
Protocol Support RTP, RTSP, HTTP, CGI(SUNAPI)
Control Live(Multi-Profile Support), Playback
Max. Remote Users Search(3), Live Unicast(10)
Redundancy
Failover N+1
ARB Yes

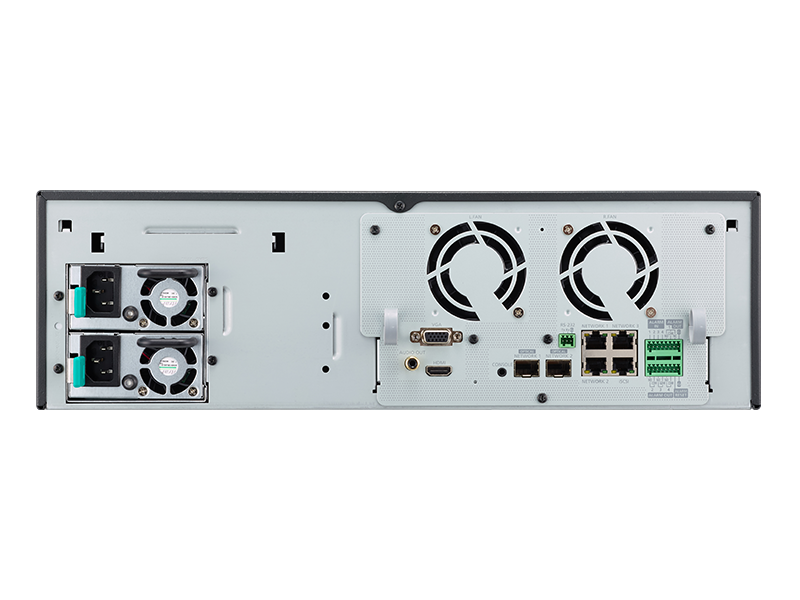

Interface
HDMI 1EA
VGA 1EA
Audio Out(1EA, RCA, Line)
Ethernet RJ-45 4ea (LAN/WAN, 1Gbps), 1000M SFP 2ea
Alarm In 4EA, Out 4EA
USB 2EA(Front)
Serial(Protocols) RS-232C (UPS Support)(※1)
Power inlet AC 2EA
System
System Control Mouse, IR remocon, Web, Controller
Language English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai
Environmental
Operating Temperature +0°C to +40°C(+32℉ to +104℉)
Operating Humidity 20% ~ 85% RH
Electrical
Power Input 100 ~ 240 VAC ±10%; 50/60 Hz, 3~1.5A (Dual SMPS)
Power Consumption Max. 250W (853 BTU with HDD 12ea)
Mechanical
Color / Material Black / Metal
Dimension (WxHxD) 436.0 x 132.0 x 450.0mm (17.17" x 5.2" x 17.72") (3U)
Weight 11Kg
