Samsung - PRN-4011-96TB - 64CH 4K 400Mbps H.265 NVR
- Up to 64 channels, Maximum 12 megapixel resolution
- 400Mbps network camera recording
- Support 4K video out on HDMI monitor
- Support dual monitor video out
- H.265, H.264, MJPEG compression
- WiseStream support
- Maximum 12 internal HDDs(96TB)
- Support RAID 5/6
- ARB & failover(N+1) support
Part number:
PRN-4011-96TB
Price:

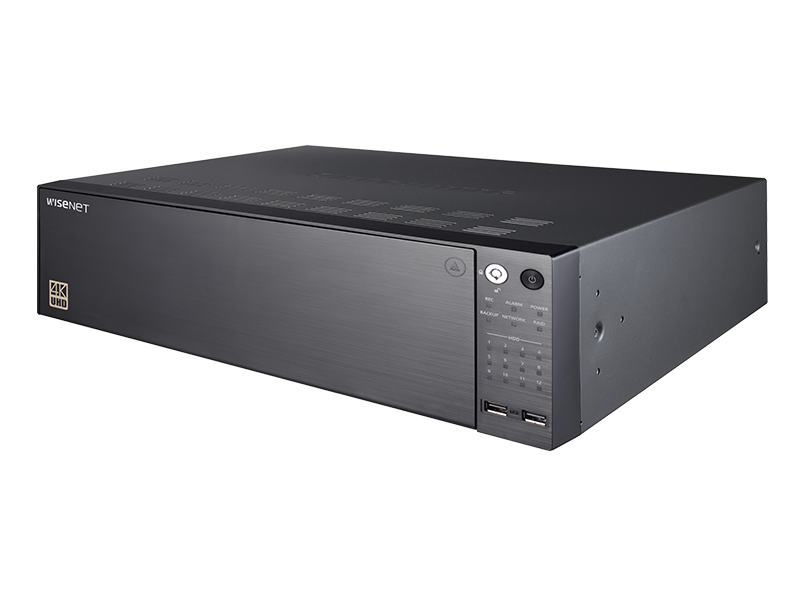

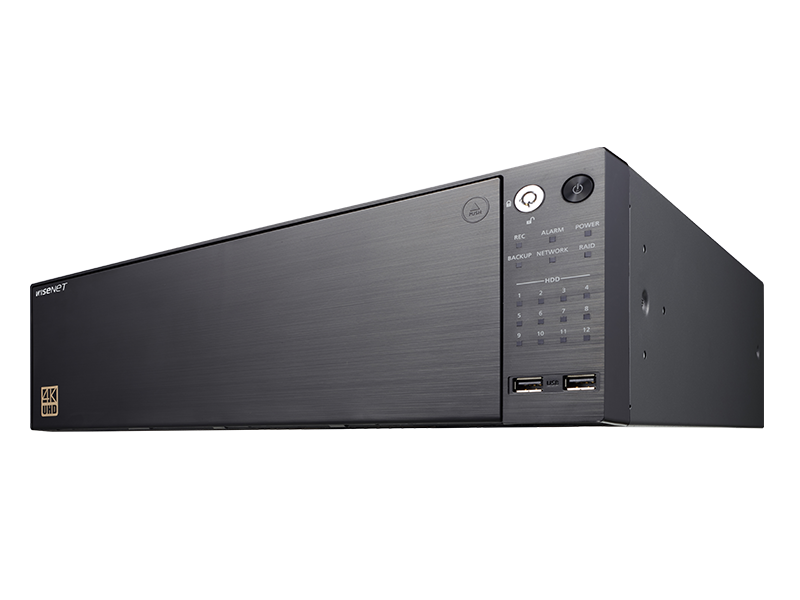

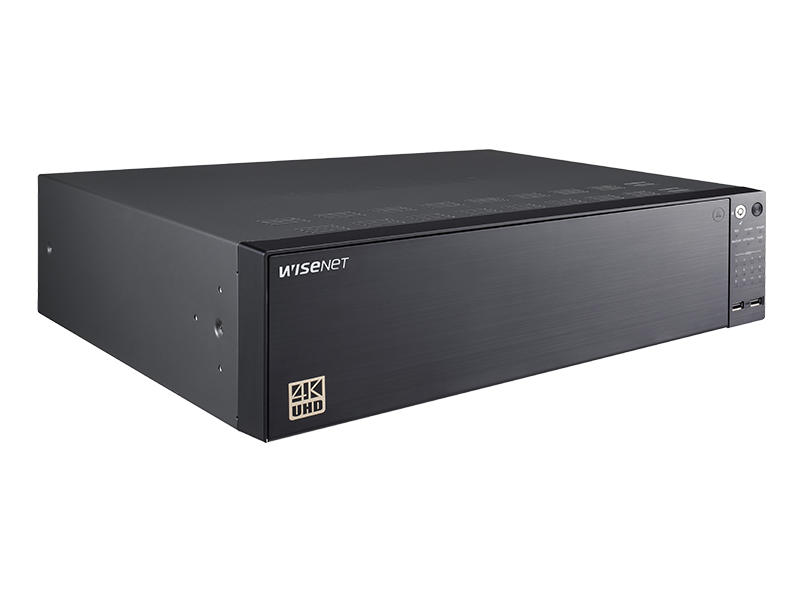

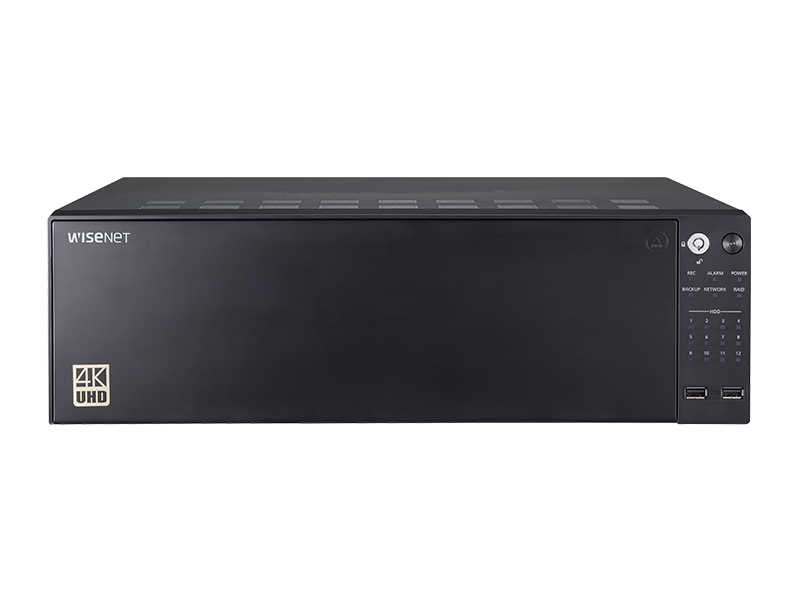

Hanwha’s PRN-4011 is a 64CH network video recorder that will allow the connection of up to 64 cameras with up to 12MP resolution each, triple codec recording and playback H.265/H.264/MJPEG, dual monitor output, 4K HDMI output, 12 hot swap hard disc drives and redundant power supplies, while supporting high level functions such as RAID 5/6, four gigabit ethernet ports and advanced video motion detection, it also supports a local monitor for ease of use, automatic camera registration, ONVIF cameras and mobile apps for smart phone and tablet connectivity.
| Display | ||
|---|---|---|
| Network camera | ||
| Inputs | Max. 64CH | |
| Resolution | 12MP ~ CIF | |
| Protocols | Wisenet, ONVIF | |
| Decoding | ||
| Local Display | [Clone Display] HDMI: 3840 x 2160, 1920x1080, 1280x720 VGA: 1920x1080, 1280x720 |
|
| Resolution | 12M (30fps), 8.3M(120fps), 1080p(480fps), 720P(960fps), D1(1920fps) | |
| Performance | ||
| Record | ||
| Compression | H.265, H.264, MJPEG | |
| Recording Bandwidth | Max. 400Mbps | |
| Resolution | 12MP ~ CIF | |
| Mode | Normal, Schedule(Continuous/Event), Event (Pre/Post) | |
| Event Trigger | Alarm Input, Video Loss, Camera Event(Alarm, MD, Video Analytics, Defocus) | |
| Event Action | e-Mail, PTZ Preset, Alarm Out, Buzzer, Monitor Out | |
| Search & Play | ||
| Playback Bandwidth | Max. 32Mbps(16CH simultaneously) | |
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | Max. 16CH(Network) Max. 8CH(Local Monitor) |
|
| Fisheye Dewarping | WEB / CMS | |
| Storage | ||
| Supported HDD | Up to 8TB | |
| HDD Slot | 12HDD | |
| External | iSCSI storage(Max. 192TB) | |
| RAID | RAID-5/6(Array Size : 6-HDD x 2 Array) | |
| Backup | ||
| File backup | BU/Exe(GUI), JPG/AVI(Network) | |
| Function | Multi channel(Upto 8CH) Play, Date-Time/Title display | |
| Network | ||
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Wisenet DDNS | |
| Transmission Bandwidth | Max. 400Mbps | |
| Audio | ||
| Input/Output | 64 CH(network) | |
| Compression | G.711, G.726, AAC(16/48KHz) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access Log, 802.1x, Encryption | |
| Web viewer | ||
| Supported OS | Windows 7, 8, 10, Mac OS X 10.9. 10.10. 10.11 | |
| Supported browser | Plug-in free web viewer - Supported Browser: Google Chrome 47, MS Edge 20 Plug-in Webviewer - Supported MS Explore 11, Apple Safari 9 * Mac OS X only |
|
| Viewer Software | SSM, Webviewer, Smart Viewer, Wisenet mobile Support SDK/CGI(SUNAPI) for integration to 3'rd party VMS |
|
| Functions | ||
| Camera Setup | ||
| Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage |
|
| PTZ | ||
| Control | Via GUI, Webviewer, SPC-2000 | |
| Smart phone | ||
| Support Model | iOS, Android | |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live(Multi-Profile Support), Playback | |
| Max. Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | ||
| Failover | N+1 | |
| ARB | Yes | |

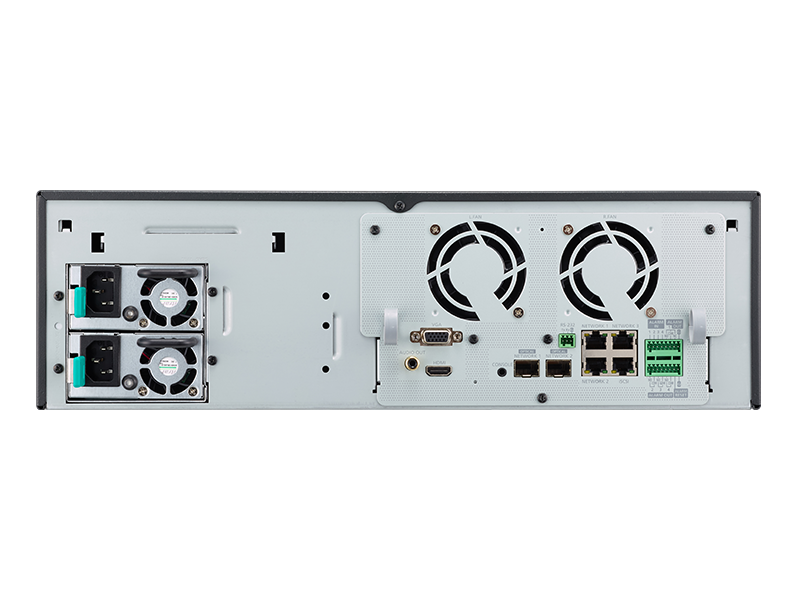

| Interface | ||
| HDMI | 1EA | |
| VGA | 1EA | |
| Audio | Out(1EA, RCA, Line) | |
| Ethernet | RJ-45 4ea (LAN/WAN, 1Gbps), 1000M SFP 2ea | |
| Alarm | In 4EA, Out 4EA | |
| USB | 2EA(Front) | |
| Serial(Protocols) | RS-232C (UPS Support)(※1) | |
| Power inlet | AC 2EA | |
| System | ||
| System Control | Mouse, IR remocon, Web, Controller | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai | |
| Environmental | ||
| Operating Temperature | +0°C to +40°C(+32℉ to +104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Electrical | ||
| Power Input | 100 ~ 240 VAC ±10%; 50/60 Hz, 3~1.5A (Dual SMPS) | |
| Power Consumption | Max. 250W (853 BTU with HDD 12ea) | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 436.0 x 132.0 x 450.0mm (17.17" x 5.2" x 17.72") (3U) | |
| Weight | 11Kg | |
