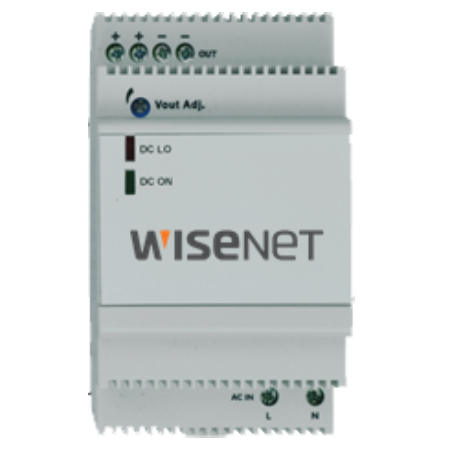

Hanwha - PWR-DR12033 - DIN Rail Mounting 33W Hardened Power Supply
Part number:
PWR-DR12033
Price:
The PWR-1233DR is a high quality, low noise switching mode power supply ideally suited to the entire industrial product range that require 12 VDC power input. These rugged units are DIN rail mountable, providing an ideal mounting configuration to a mating industrial switch or any product using our range of DIN rail mounting adapters. The wide ambient operating temperature range permits installation in most out of plant and unconditioned environments, such as those found in intelligent transportation systems or factory automation/industrial control applications. Unconditional line and load protection is provided.
Features:
- High Temperature-Rated, Hardened Power Supply for Wisenet Transmission products
- -40⁰C to +71⁰C With -40⁰C Start-Up
- Universal AC input: 90 to 264 VAC, 47-63Hz
- Supplies 12VDC 33 Watts (2.75A)
- Adjustable output voltage range support
- Mounts on standard 7.5 or 15 mm DIN-rail
- Small package for limited space installations, fan-less design
| Power Input | |
| Ted Input Voltage | 90 to 264 VAC or 120 to 375 VDC |
| Input Current Line | 115 / 230 VAC, 680 / 410 mA |
| Current Power Dissipation | 115 / 230 VAC, 25 / 50 A 230 VAC, 7.3 W |
| Power Output | |
| Voltage Accuracy | +1% |
| Minimum Load Line | 0% |
| Regulation Voltage | ±1% |
| Trim Range Hold | 12 to 14 VDC |
| Electrical & Mechanical | |
| LED Indicators | DC ON: At Start Up (Green) DC LOW: After Start Up (Red) |
| Size (L×W×H) | 3.58 × 2.09 × 2.22 in (9.1 × 5.3 × 5.65 cm) |
| Shipping Weight: | 0.42 lb / 190 g |
| Connectors | |
| Ethernet | RJ-45 |
| Operating Power | Powered by PoE or 2-pin screw terminal for local power |
| Environmental | |
| MTBF | >500,000 hours @ 40ºC (104ºF) |
| Operating Temp | -40˚ C to +71˚ C (-40ºF to 160ºF) |
| Storage Temp | -40˚ C to +85˚C (-40ºF to 185ºF) |
| Relative Humidity | 20% to 90% (non-condensing) |
