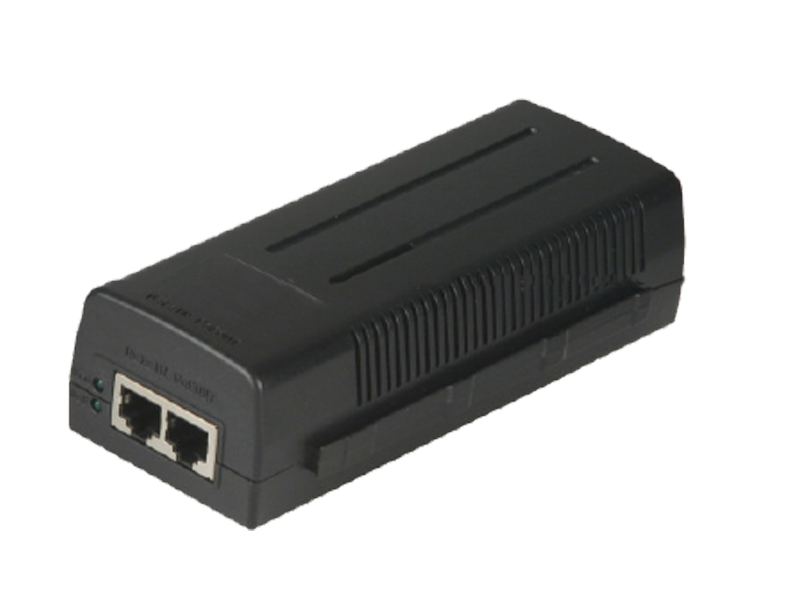

The PWR-P-POE30 inject Power over data-carrying Ethernet cabling. It follows the IEEE802.3AT standards and is completely compatible with existing Ethernet switches and networked devices.
| Description | 30W PoE Injector |
| Materials | Body: Plastic cap, metal adapter plate Bubble: N/A |
| Temperature | Operating: 0°C~40°C - 32°F~104°F Storage: -20°C~70°C - -4°F~160°F |
| PoE Port | Supports 10/100/1000M Base-T Applications up to 100M (300 Ft.) |
| PoE Standard | Up to 30W - IEEE802.3AT |
| Dimensions (WxHxD) | External: N/A Internal: N/A |
| Weight | 0.8 lbs |
| Input | AC100-240V, 50/60 Hz |
| Output | 54VDC, .06A |
| Color | Black |
| Applicable Model | N/A |
| Description | N/A |
Name
Description
Size
Downloads
File
PoE Injector Accessories
0.7mb
File
Datasheet
0.7mb
