Hanwha - QND-7012R - 4MP Network IR Dome Camera, 2.8mm Fixed Focal Lens
Product Overview

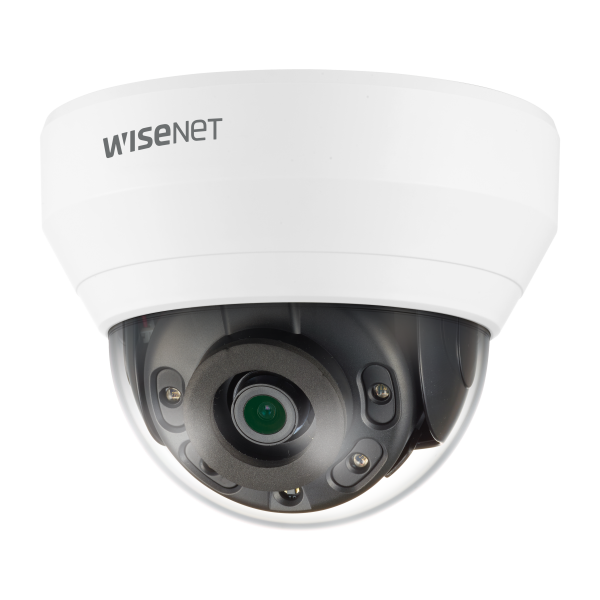

The Hanwha QND-7012R is a Wisenet Q indoor dome camera equipped with a 1/3" CMOS sensor that delivers 4MP resolution (2560×1440) at up to 30 fps. It features a 2.8mm fixed lens with an F2.0 aperture and a 107.5° horizontal field of view. Video streaming is optimized through a triple codec configuration supporting H.265, H.264, and MJPEG compression technologies.
Key Configuration
- • Imaging device: 1/3" CMOS; resolution: 2560×1440 (4MP) at up to 30 fps (H.265/H.264)
- • Lens: 2.8mm fixed focal, F2.0; horizontal FOV: 107.5°, vertical: 59.7°, diagonal: 122.0°
- • IR viewable length: 20m (65 ft); minimum illumination: color 0.15 lux, 0 lux with IR
- • Video compression: H.265/H.264 (Main/High), MJPEG; WiseStreamⅡ
- • Power: PoE (IEEE 802.3af, Class 3) or 12V DC; PoE max 7.9W / typical 6.1W, 12VDC max 7.1W / typical 5.1W
Key Features
This indoor dome camera features 120dB WDR, SSNR noise reduction, LDC, 90°/270° Hallway View, and a 512MB RAM/256MB Flash architecture. Analytics include defocus, directional, enter/exit, and tampering detection, with motion detection across 4 polygonal zones. It provides a built-in microphone, 1 alarm I/O, a CVBS installation output, 6 privacy masks, a 3-axis adjustment mechanism, a 128GB microSD slot, and ONVIF S/G/T conformance.
Technical Context
Featuring a fixed focus lens and an IK08 vandal-resistance rating, this camera provides an electronic shutter speed range of 1/5 to 1/12,000 sec. Network streaming supports up to 3 configuration profiles, accommodating up to 6 unicast users or multicast across a protocol suite that includes PPPoE, PIM-SM, and secure HTTPS, SSL/TLS, and LLDP options. Cybersecurity protocols include HTTPS/SSL and digest login authentication, 802.1X network access control, IP address filtering, and automated user access logs.
Installation Notes

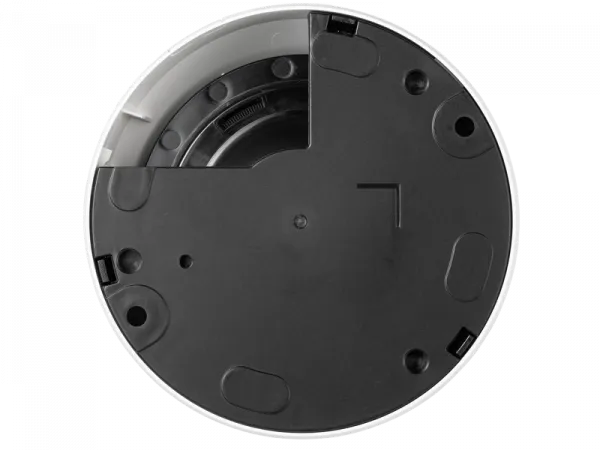

Measuring Ø110.0 × 86.0 mm and weighing 255g, this white plastic, IK08-rated indoor dome camera operates from -10°C to +55°C under 95% RH. Dual-power options include PoE (Class 3) or 12V DC. The hardware features a built-in microphone, a 128GB microSD slot, and a CVBS installation output. It mounts to single-gang, double-gang, and 4" octagon boxes using the included double-gang or optional SBD-110GP plates.
| Video | |
| Imaging Device | 1/3" CMOS |
| Resolution | 2560 x 1440, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
| Max. Framerate | H.265/H.264 : Max. 30fps at 4M all resolutions, MJPEG : Max. 15fps |
| Min. Illumination | Color : 0.15Lux (F2.0, 1/30sec) B/W : 0Lux (IR LED On) |
| Video Out | CVBS : 1.0 Vpp/75Ω composite, 720x480(N), 720x576(P) for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 2.8mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H : 107.5, V : 59.7, D : 122.0 |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0° ~ 350° / 0° ~ 67° / 0° ~ 355° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum/Maximum/Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90/270) |
| Analytics | Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm Events | File upload via FTP and e-mail, Notification via e-mail, SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover |
| Audio In | Built-in MIC |
| IR Viewable Length | 20m (65.62ft) |
| Network | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264 : Main/High, MJPEG |
| Audio Compression | G.711 u-law / G.726 Selectable G. 726(ADPCM) 8KHz, G.711 8KHz, G.726 16Kbps, 24Kbps, 32Kbps, 40Kbps |
| Smart Codec | Manual (5ea area), WiseStreamⅡ |
| Bitrate Control | H.264/H.265 : CBR or VBR MJPEG : VBR |
| Streaming | Unicast (6 users) / Multicast Multiple streaming (Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, PPPoE, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access Log 802.1X Authentication |
| Application Programming Interface | ONVIF Profile S/G/T, SUNAPI (HTTP API) |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB |
| Memory | 512MB RAM, 256MB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -10C~+55C (+14F~+131F) / Less than 95% RH |
| Storage Temperature / Humidity | -30C~+60C (-22F~+140F) / Less than 95% RH |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption | PoE: Max 7.9W, typical 6.1W 12VDC: Max 7.1W, typical 5.1W |
| Mechanical | |
| Color / Material | White / Plastic |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | Ø110.0 x 86.0mm (Ø4.33 x 3.39"), 255g (0.562 lb) |
| Compatible Conduit hole / Gangbox | - Included : Double - SBD-110GP : Single, Double, 4"Octagon |
