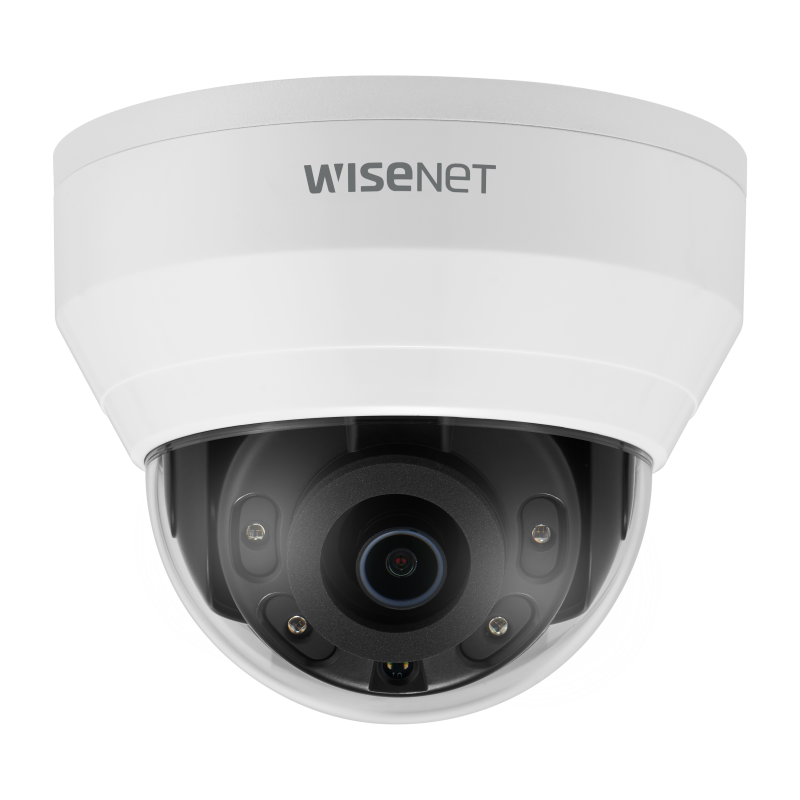

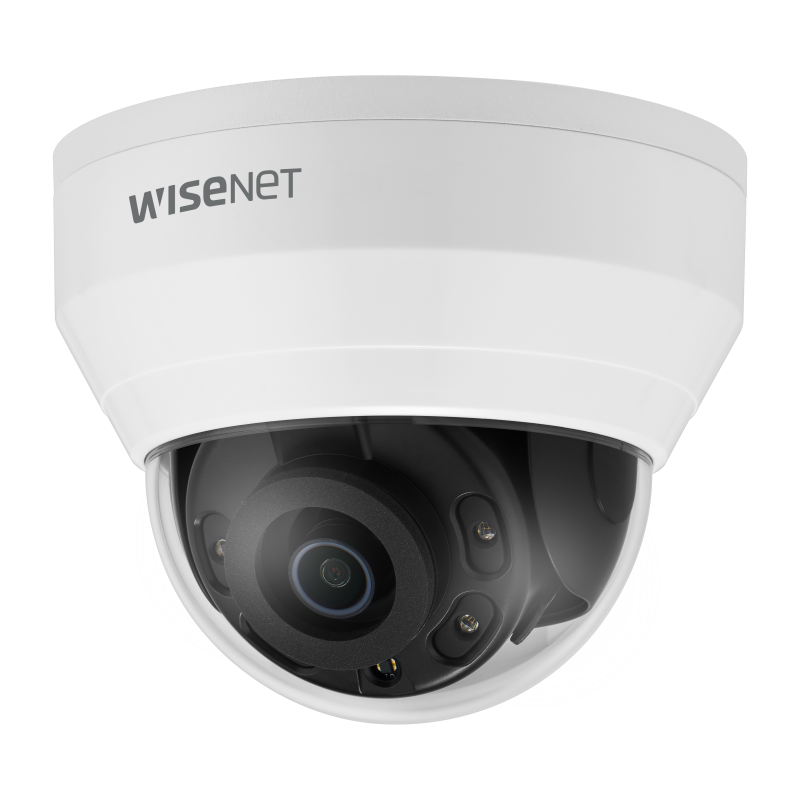

Hanwha - QND-8010R - 5 MP Network IR Dome Camera with 2.8mm Lens
Product Overview
The Hanwha QND-8010R is an indoor dome camera featuring a 1/2.8" CMOS sensor that delivers 5MP resolution (2592×1944) at up to 30 fps. It is equipped with a 2.8mm fixed lens (F2.0) providing a 104.7° horizontal field of view. Bandwidth and storage utilization are minimized through H.265/H.264/MJPEG triple-codec streaming integrated with WiseStreamⅡ compression technology.
Key Configuration
- • Imaging device: 1/2.8" 5MP CMOS; resolution: 2592×1944 (5MP) at up to 30 fps (H.265/H.264)
- • Lens: 2.8mm fixed focal, F2.0; horizontal FOV: 104.7°, vertical: 76.5°, diagonal: 136.0°
- • IR viewable length: 20m (65 ft); minimum illumination: color 0.15 lux, 0 lux with IR
- • Video compression: H.265/H.264 (Main/High), MJPEG; WiseStreamⅡ
- • Power: PoE (IEEE 802.3af, Class 3); max 7.5W, typical 5.8W
Key Features
Featuring 120dB WDR, SSNR noise reduction, LDC, and Hallway View, this ONVIF Profiles S/G/T conformant camera includes a 3-axis mechanical adjustment (0–350° pan, 0–67° tilt, 0–355° rotate). Backed by 512MB RAM and 256MB Flash, its intelligent analytics suite handles defocus, motion, tampering, entry/exit, and directional/virtual line detection alongside 6 privacy zones. Onsite configuration and local backup are supported via a CVBS installation video output, a 1-input/1-output alarm interface, and a single microSD slot (up to 128GB).
Technical Context
Equipped with a fixed focus mechanism, this indoor-only camera supports up to 3 streaming profiles for 6 concurrent unicast or multicast users. It runs a full protocol suite featuring LLDP and QoS, secured by HTTPS/SSL and digest login authentication, IP filtering, user access logging, and 802.1X network control.
Installation Notes
Measuring Ø110.6 × 89.5 mm (Ø4.35" × 3.52") and weighing 360g (0.794 lb), this white plastic indoor camera operates from -10°C to +50°C (+14°F to 122°F) under 90% RH and stores down to -30°C (-22°F). It is powered via PoE (IEEE 802.3af, Class 3) and incorporates a single microSD slot for up to 128GB of edge storage alongside a CVBS video output for local installation alignment.
| VIDEO | |
| Imaging Device | 1/2.8" 5 MP CMOS |
| Effective Pixels | 2592(H) x 1944(V) |
| Minimum Illumination | Color: 0.15Lux (F2.0, 1/30sec) BW: 0Lux (IR LED on) |
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720 x 480 for installation |
| LENS | |
| Focal Length (Zoom Ratio) | 2.8mm fixed focal |
| Maximum Aperture Ratio | F2.0 |
| Angular Field of View | H: 104.7° / V: 76.5° / D: 136.0° |
| Focus Control | Fixed |
| Pan / Tilt / Rotate Range | 0°~350° / 0°~67° / 0°~355° |
| OPERATIONAL | |
| IR Viewable Length | 20m (65.62ft) |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm events | File upload via FTP and e-mail, Notification via e-mail, SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover |
| NETWORK | |
| Ethernet | RJ-45 (10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Resolution | 2592 x 1944, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360 |
| Maximum Framerate | H.265/H.264: Maximum 30fps / MJPEG: Maximum 15fps |
| Smart Codec | Manual (5ea area), WiseStream II |
| Video Quality Adjustment | H.264/H.265: Target bitrate level control / MJPEG: Quality level control |
| Bitrate Control | H.264/H.265: CBR or VBR / MJPEG: VBR |
| Streaming | Unicast (6 users) / Multicast / Multiple streaming (Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Security | HTTPS (SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1X authentication (EAP-TLS, EAP-LEAP) |
| Edge Storage | Micro SD/SDHC/SDXC 1 slot maximum 128GB |
| Application Programming Interface | ONVIF Profile S/G/T, SUNAPI (HTTP API), Wisenet open platform |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.10, 10.11, 10.12, 10.13, 10.14 Recommended Browser: Google Chrome Supported Browser: MS Explorer 11, MS Edge, Mozilla Firefox (Windows 64-bit only), Apple Safari (Mac OS X only) |
| Memory | 512MB RAM, 256MB Flash |
| ENVIRONMENTAL | |
| Operating Temperature / Humidity | -10°C ~ +50°C (+14°F ~ +122°F) / Less than 90% RH |
| Storage Temperature / Humidity | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
| ELECTRICAL | |
| Input Voltage | PoE (IEEE802.3af, Class3) |
| Power Consumption | PoE: Maximum 7.5W, typical 5.8W |
| MECHANICAL | |
| Color / Material | White / Plastic |
| RAL Code | RAL9003 |
| Product dimensions/weight | Ø110.6 x 89.5mm (Ø4.35 x 3.52"), 360g (0.794 lb) |
