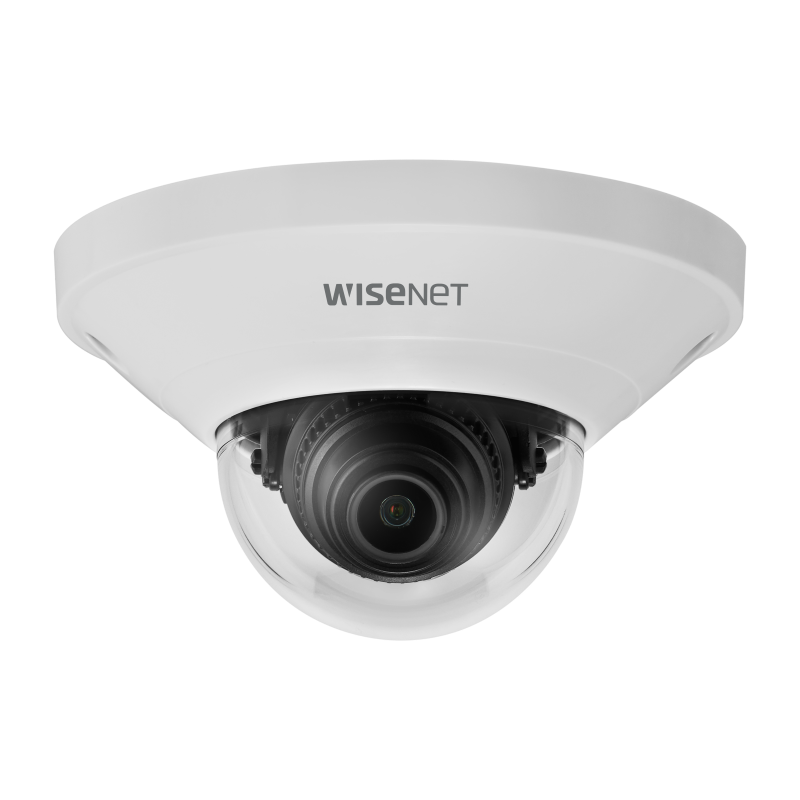

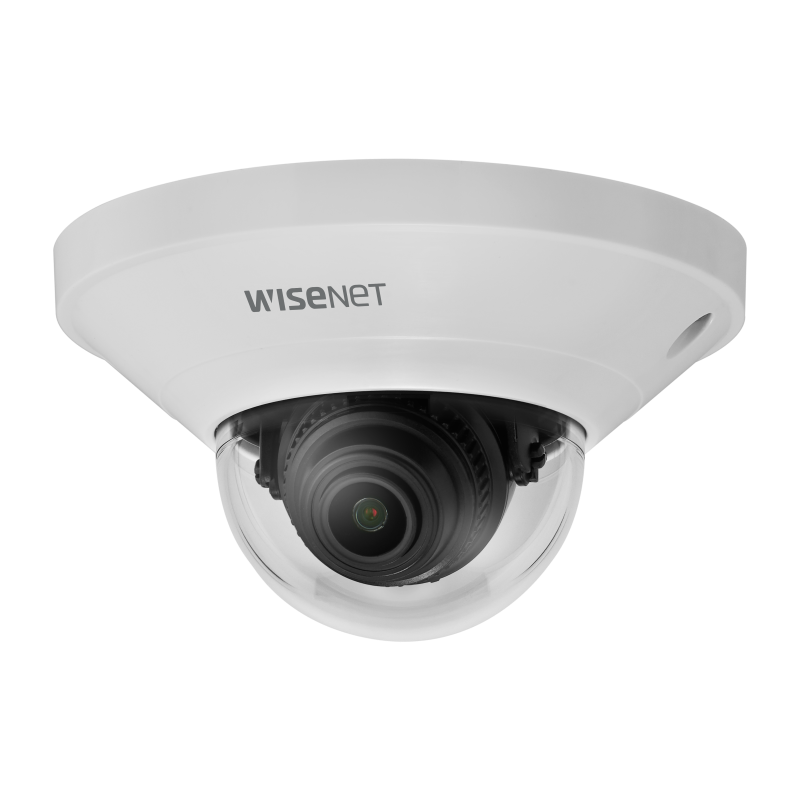

Hanwha - QND-8021 - 5 MP Network Super-Compact Dome Camera with 4mm Lens
The QND-8021 from Hanwha's Q mini Series affordable network camera line is a 5 Megapixel Super-Compact Indoor Dome network camera featuring WiseStream II, Hanwha's compression technology, triple codec H.265/H.264/MJPEG, 4mm lens, PoE, 120dB True WDR, IP42, IK08, defocus & tampering detection, Hallway View, and SD card slot (SD/SDHC/SDXC up to 128GB). The super-compact form factor perfectly blends into any environment, making it ideal for retail. The Wisenet Q mini series also features people counting business intelligence as well as real-time HDMI video output for public view monitor display.
Features:
- 5 Megapixel resolution
- Built-in 4mm fixed lens
- Ultra-compact design
- 30fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Defocus detection, Motion detection, Tampering detection
- People counting for retail business intelligence
- micro SD (128GB) memory slot, PoE
- Hallway view support
- IP42, IK08 rated
- HDMI video out for easy installation and Public View Monitoring
- LDC support (Lens Distortion Correction)
| Video | |
| Imaging Device | 1/2.8" 5MP CMOS |
| Effective Pixels | 2592(H)x1944(V) |
| Minimum Illumination | Color: 0.15Lux(F1.6, 1/30sec) |
| Video Out | HDMI: 1080p@30fps |
| Lens |
| Focal Length (Zoom Ratio) | 4.0mm fixed focal |
| Maximum Aperture Ratio | F1.6 |
| Angular Field of View | H: 80.1°/ V: 58.0°/ D: 105.8° |
| Focus Control | Fixed |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0˚~350˚ / 0˚~69˚ / 0˚~355˚ |
| Operational |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(Electrical) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) |
| Analytics | Defocus detection, Motion detection, Tampering |
| Business Intelligence | People counting |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers |
| Network |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Resolution | 2592x1944, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 |
| Maximum Framerate | H.265/H.264: Maximum 30fps MJPEG: Maximum 15fps |
| Smart Codec | WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Edge Storage | Micro SD/SDHC/SDXC 1 slot, maximum 128GB |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OSx10.12, 10.13, 10.14 Recommended Browser: Google Chrome Supported Browser: MS Internet Explorer 11, MS Edge, Mozilla Firefox (Windows 64-bit only), Apple Safari (Mac OSxonly) |
| Memory | 512MB RAM, 256MB Flash |
| Environmental |
| Operating Temperature / Humidity | -10°C ~ +40°C(-14°F ~ +104°F) / Less than 90% RH |
| Storage Temperature / Humidity | -30°C ~ +60°C(-22°F ~ +140°F) / Less than 90% RH |
| Certification | IP42, IK08 |
| Electrical |
| Input Voltage | PoE(IEEE802.3af, Class2) |
| Power Consumption | PoE: Maximum 5.00W, typical 4.00W |
| Mechanical |
| Color / Material | White / Plastic |
| RAL Code | RAL9003 |
| Product dimensions / weight | Ø99.0x56.0mm(Ø3.9x2.2"), 165g(0.36 lb) |
| Gangbox Compatibility | Direct mount to single gang box |
| DORI |
| Detect (25PPM/ 8PPF) | 61.7m(202.31ft) |
| Observe (63PPM/ 19PPF) | 24.7m(80.92ft) |
| Recognize (125PPM/ 38PPF) | 12.3m(40.46ft) |
| Identify (250PPM/ 76PPF) | 6.2m(20.23ft) |
