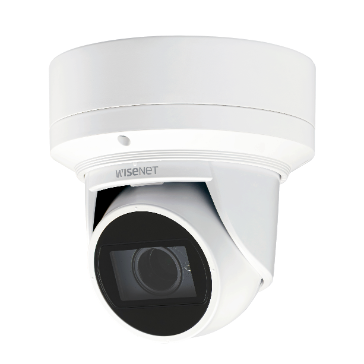

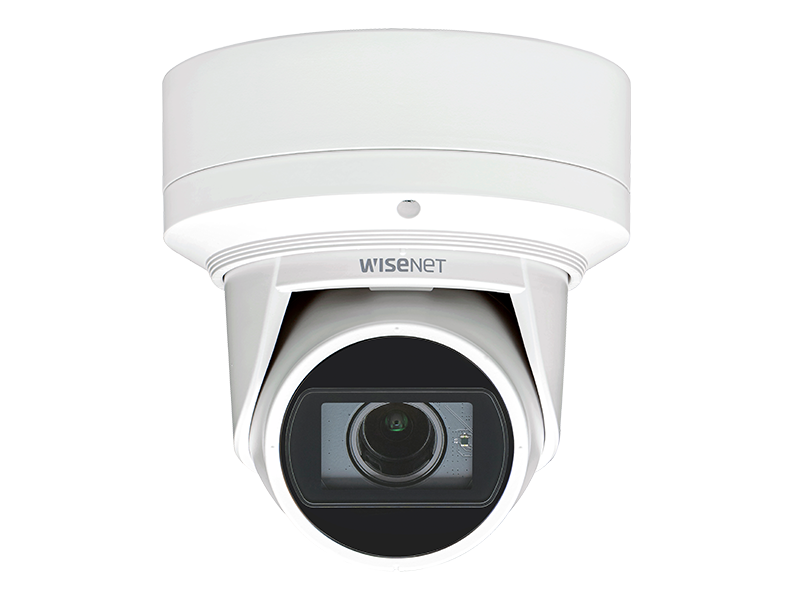

Hanwha - QNE-7080RVW - 4MP Flateye Camera (White Color)
Part number:
QNE-7080RVW
Price:
Wisenet Q network outdoor vandal flateye camera, 4MP @20fps, motorized vari-focal lens 3.1x (3.2 ~ 10.0mm) (100.0°~30.5°), triple codec H.265/H.264/MJPEG with Wisestream, 120dB WDR, IR LEDs range 98', defocus detection, hallway View, one way audio and SD card. IP66, IK10, PoE/12VDC, white color. Flateye style prevents IR reflections, provides better image in rain, and is easy to adjust.
Features:
- Max. 4Megapixel (2592 x 1520) resolution
- 3.2~10mm (3.1x) motorized varifocal lens
- 0.2Lux@F1.6 (Color), 0Lux (B/W)
- Max. 20fps@4MP (H.265 / H.264), 30fps@2MP
- H.265, H.264, MJPEG codec support, Multiple streaming
- Day & Night, WDR (120dB)
- Tampering, Motion detection, Defocus detection
- Micro SD / SDHC / SDXC memory slot (Max. 128GB)
- Hallway view, WiseStream support
- IR Viewable length 30m
- LDC, PoE / 12V DC
| Technical Specifications | |
| Video | |
| Imaging Device | 1 / 3" 4M CMOS |
| Effective Pixels | 2,688(H) x 1,520(V) |
| Minimum Illumination | Color : 0.2Lux, B/W : 0Lux (IR LED On) |
| Lens | |
| Focal Length (Zoom Ratio) | 3.2 ~ 10mm (3.1x) motorized varifocal |
| Maximum Aperture Ratio | F1.6 |
| Angular Field of View | H : 100.0°(Wide) ~ 30.5°(Tele) / V : 55.7°(Wide) ~ 18.3°(Tele) / D : 119.6°(Wide) ~ 35.3°(Tele) |
| Lens Type | DC Auto Iris |
| Mount Type | Board type |
| Operational |
| IR Viewable Length | 30m (98.43ft) |
| Camera Title | Off / On (Displayed up to 20 characters per line) - W / W : English / Numeric / Special characters - China : English / Numeric / Special / Chinese characters - Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution |
| Day & Night | True Day & Night |
| Backlight Compensation | Off / BLC / WDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR (Off / On) |
| Motion Detection | Off / On (4ea polygonal zones) |
| Privacy Masking | Off / On (6ea rectangular zones) |
| Gain Control | Off / Low / Middle / High |
| LDC | Off / On (5 levels with min / max) |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker |
| Flip / Mirror | Flip / Mirror / Hallway view |
| Alarm Triggers | Motion detection, Tampering detection, SD card error, NAS error, Alarm input, Defocus detection |
| Alarm events | File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail, External output |
| Ethernet | RJ-45 (10/100BASE-T) |
| Resolution | 2592 x 1520, 2560 x1440 (16 : 9), 2304 x 1296, 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
