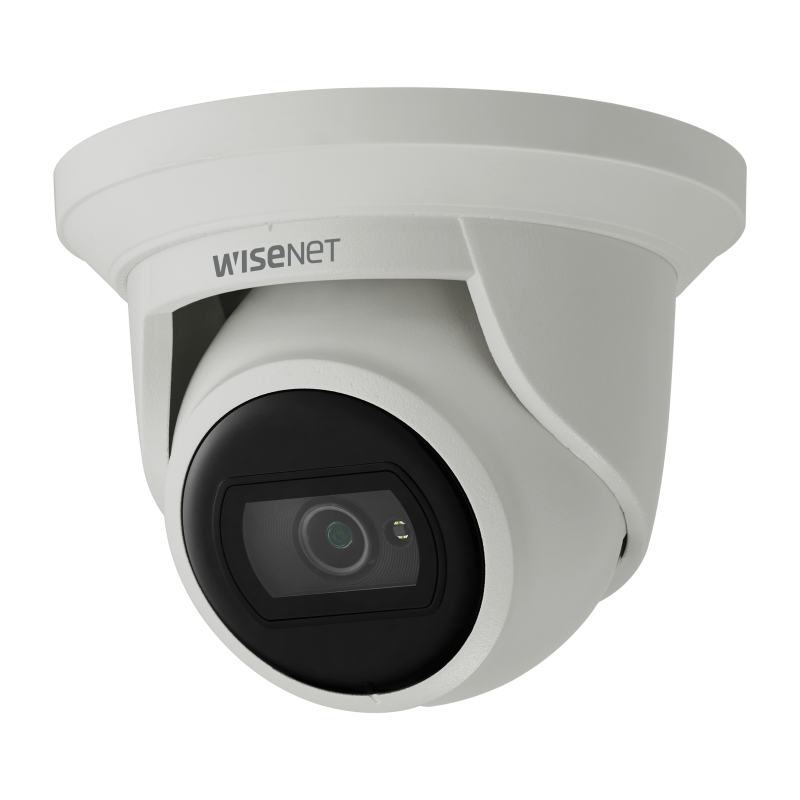

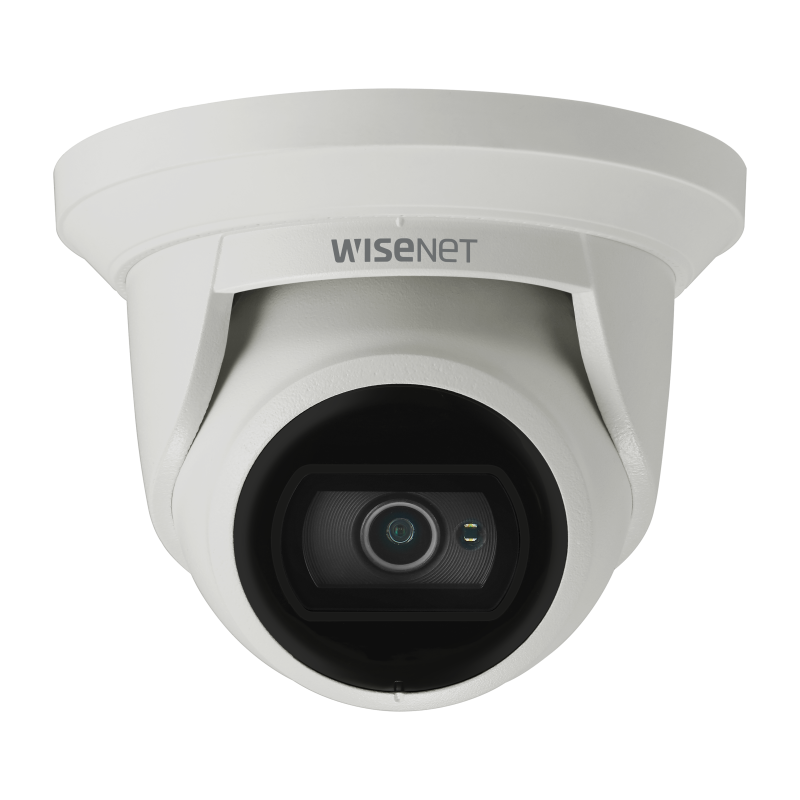

Wisenet Q network outdoor vandal flateye camera, 5 MP @30fps, 4mm fixed lens, triple codec H.265/H.264/MJPEG with WiseStream, 120dB WDR, IR LEDs range 20m, defocus detection, hallway view, and SD card. IP67, IK10, PoE, white color. Flateye style prevents IR reflections, provides better image in rain, and is easy to adjust.
Features
- 5 Megapixel (2592 x 1944) resolution
- 4mm fixed lens
- 0.15Lux@F1.6 (Color), 0Lux (B/W)
- 30fps@5 MP (H.265 / H.264)
- H.265, H.264, MJPEG triple codec support, Multiple streaming
- Day & Night, WDR (120dB)
- Tampering, Motion detection, Defocus detection
- Micro SD / SDHC / SDXC memory slot (Maximum 128GB)
- Hallway view, WiseStream support
- IR Viewable length 20m
- LDC, PoE / IP67, IK10
VIDEO
| Imaging Device | 1/2.8" 5 MP CMOS | |
| Effective Pixels | 2592(H) x 1944(V) | |
| Minimum Illumination | Color : 0.15Lux (F2.0, 1/30sec) BW : 0Lux (IR LED on) | Color : 0.15Lux (F1.6, 1/30sec) BW : 0Lux (IR LED on) |
LENS
| Focal Length (Zoom Ratio) | 2.8mm fixed focal | 4.0mm fixed focal |
| Maximum Aperture Ratio | F2.0 | F1.6 |
| Angular Field of View | H : 104.4°/ V : 76.7°/ D : 136.1° | H : 80.1°/ V : 58.0°/ D : 105.8° |
| Focus Control | Fixed |
PAN / TILT / ROTATE
Pan / Tilt / Rotate Range 0˚~350˚ / 0˚~75˚ / 0˚~360˚
OPERATIONAL
| IR Viewable Length | 20m (65.62ft) |
| Camera Title | Displayed up to 85 characters, 5 lines, English / Numeric / Special & International characters, 6 colors, Transparency, Auto scale by resolution |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Support |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view (90˚/270˚) |
| Analytics | Defocus detection, Directional / Virtual Line detection, Motion detection, Enter/Exit, Tampering Analytics, Network disconnect |
| Alarm Triggers | |
| Alarm events | File upload via FTP and e-mail, Notification via e-mail, Handover, SD/SDHC/SDXC or NAS recording at event triggers |
NETWORK
| Ethernet | RJ-45 (10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Resolution | 2592 x 1944, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360 | |
| Maximum Framerate | H.265/H.264 : Maximum 30fps / MJPEG : Maximum 15fps | |
| Smart Codec | Manual (5ea area), WiseStream II | |
| Video Quality Adjustment | H.264/H.265 : Target bitrate level control / MJPEG : Quality Level control | |
| Bitrate Control | H.264/H.265 : CBR or VBR / MJPEG : VBR | |
| Streaming | Unicast (6 users) / Multicast Multiple streaming (Up to 3 profiles) | |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP | |
| Security | HTTPS(SSL) login authentication, Digest login authentication, IP address filtering, User access log, 802.1X authentication(EAP-TLS, EAP-LEAP) | |
| Edge Storage | Micro SD/SDHC/SDXC 1 slot maximum 128GB | |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | |
| QNE-8011R | QNE-8021R | |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.12, 10.13, 10.14 Recommended Browser : Google Chrome Supported Browser : MS Internet Explorer 11, MS Edge, Mozilla Firefox (Windows 64-bit only), Apple Safari(Mac OS X only) | |
| Memory | 512MB RAM, 256MB Flash | |
ENVIRONMENTAL
| Operating Temperature / Humidity | -30°C ~ +55°C (-22°F ~ +131°F) / Less than 90% RH * Start up should be done at above -20°C |
| Storage Temperature / Humidity | -30°C ~ +60°C (-22°F ~ +140°F) / Less than 90% RH |
| Certification | IP67, IK10 |
ELECTRICAL
| Input Voltage | PoE (IEEE802.3af, Class3) |
| Power Consumption | PoE : Maximum 7.4W, typical 5.5W |
MECHANICAL
| Color / Material | White / Aluminum |
| RAL Code | RAL9003 |
| Gangbox compatibility | Single, Double, 4" Octagon w/ included plate |
| Product dimensions / weight | Ø125x87.35mm (Ø4.92x3.44"), 645g (1.422 Ib) |
