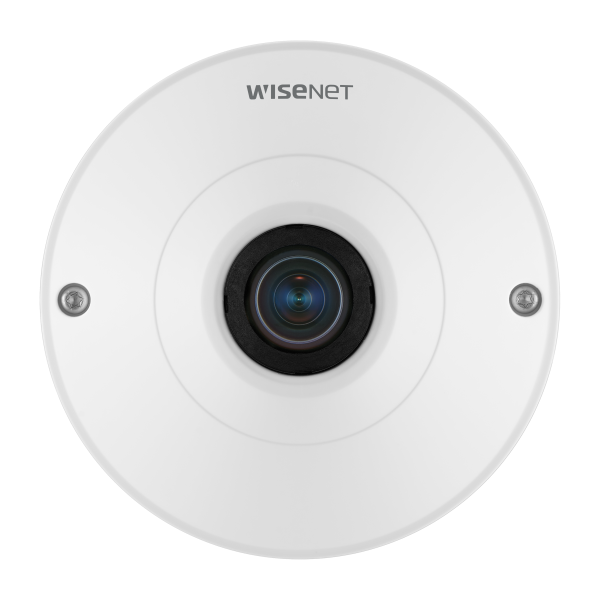

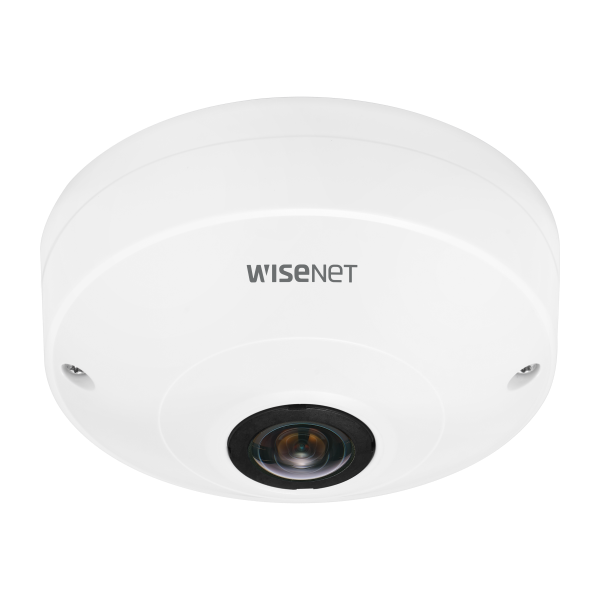

Hanwha - QNF-8010 - 6MP Indoor fisheye
Wisenet Q series network Indoor fisheye dome camera, 6MP CMOS sensor, max resolution 2048x2048 @ 30fps, triple codec H.265/H.264/MJPEG with WiseStream II technology, WDR 120dB, business analytics (heatmap and people counting), built-in SD card slot (1x256GB), PoE
Features:
- 6 MP image sensor, 2048 x 2048 resolution output, 30fps
- Fisheye lens 1.14mm (187°X187°)
- Original fisheye view, onboard dewarding to Single panorama, Double panorama, Quad view
- Lens rotation & analog video output for easy installation and adjustment
- Triple Codec: H.265, H.264 and MJPEG multiple streaming
- WiseStream II compression technology
- WDR 120dB
- Defocus, Tampering, motion detection
- Heatmap, people counting business intelligence
- SD card slot
- IP42 rated, PoE powered
- White camera body
| Video | |
| Imaging Device | 1/1.8" 6MP CMOS Sensor |
| Effective Pixels | 2048(H) x 2048(V) |
| Minimum Illumination | Color: 0.2 Lux (F2.5, 1/30sec) |
| Video Out | CVBS : 1.0 Vp-p / 75Ω composite, 720x480, for Installation |
| Lens |
| Focal Length (Zoom Ratio) | 1.14mm fixed focal |
| Maximum Aperture Ratio | F2.5 |
| Angular Field of View | H: 187˚ / V: 187˚ / D: 187˚ |
| Minimum Object Distance | 0.3m |
| Operational |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto (Electrical) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Motion Detection | 8ea, polygonal zones |
| Privacy Masking | 6ea, rectangle zones - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror |
| Analytics | Defocus detection, Motion detection, Tampering |
| Business Intelligence | People counting, Heatmap |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers |
| Network |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/Baseline/High, MJPEG |
| Resolution | Original view: 2048x2048, 1280x1280, 1080x1080, 960x960, 768x768, 720x720, 640x640, 480x480 Single panorama: 2048x512, 1920x480, 1280x320, 640x160, 704x176 Double panorama: 2048x1024, 1920x960, 1280x640, 640x320, 704x352 Quad view: 2048x1536, 1600x1200, 1280x960, 1024x768, 800x600, 640x480, 704x576 Q1/2/3/4: 1024x768, 800x600, 640x480 |
| Maximum Framerate | H.264/H.265 : 30fps@2048x2048 MJPEG : 15fps |
| Smart Codec | WiseStreamⅡ |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
| Edge Storage | Micro SD/SDHC/SDXC 1 slot 256GB |
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
| Web Viewer | Supported OS: Windows 7, 8.1, 10, Mac OS X 10.12, 10.13, 10.14 Recommended Browser: Google Chrome Supported Browser : MS Explorer 11, MS Edge, Mozilla Firefox (Windows 64-bit only), Apple Safari (Mac OS X only) |
| Memory | 1024MB RAM, 256MB Flash |
| Environmental |
| Operating Temperature / Humidity | -10°C ~ +55°C(+14°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity | -50°C ~ +60°C(-58°F ~ +140°F) / Less than 90% RH |
| Certification | IP42 |
| Electrical |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | PoE: Maximum 6.4W, typical 4.6W |
| Mechanical |
| Color / Material | White / Plastic |
| RAL Code | RAL9003 |
| Product dimensions / weight | Ø99x49mm(Ø3.9x1.93"), 320g(0.705 lb) |
| DORI |
| Detect | 25m(82.02ft) |
| Observe | 10m(32.81ft) |
| Recognize | 5m(16.40ft) |
| Identify | 2.5m(8.2ft) |
