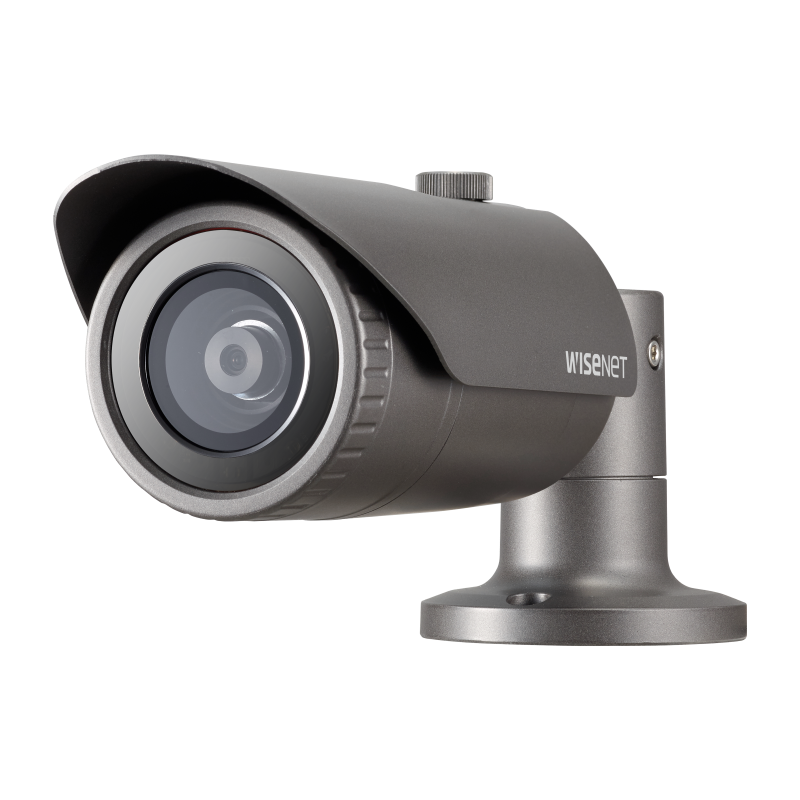

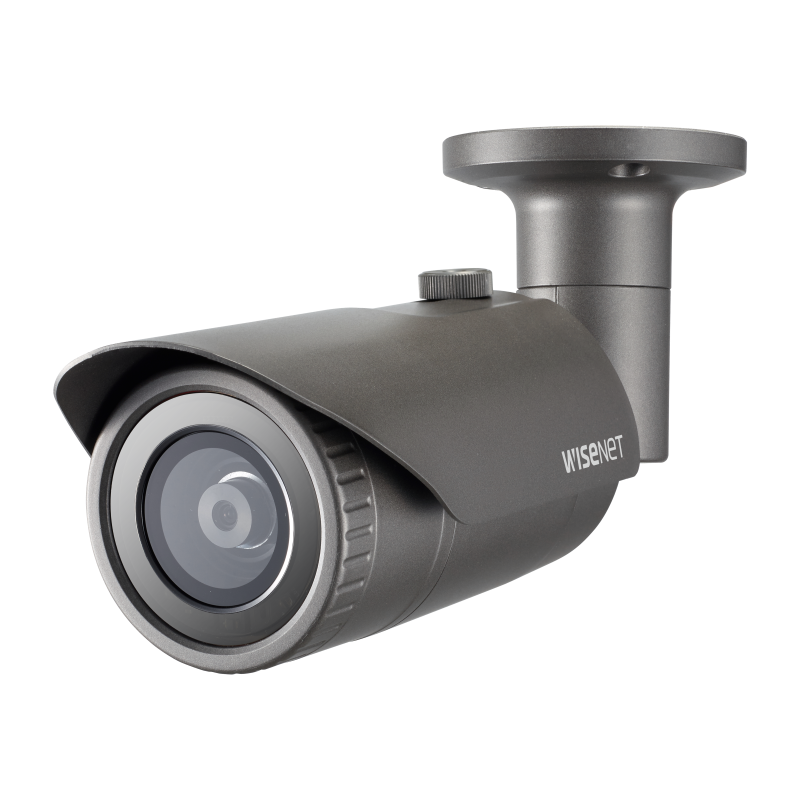

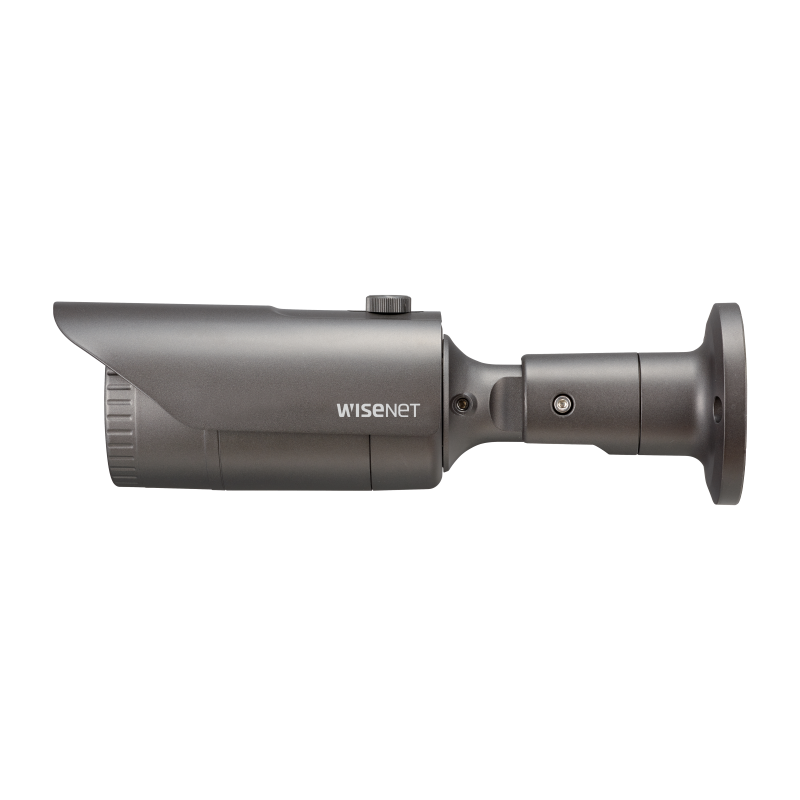

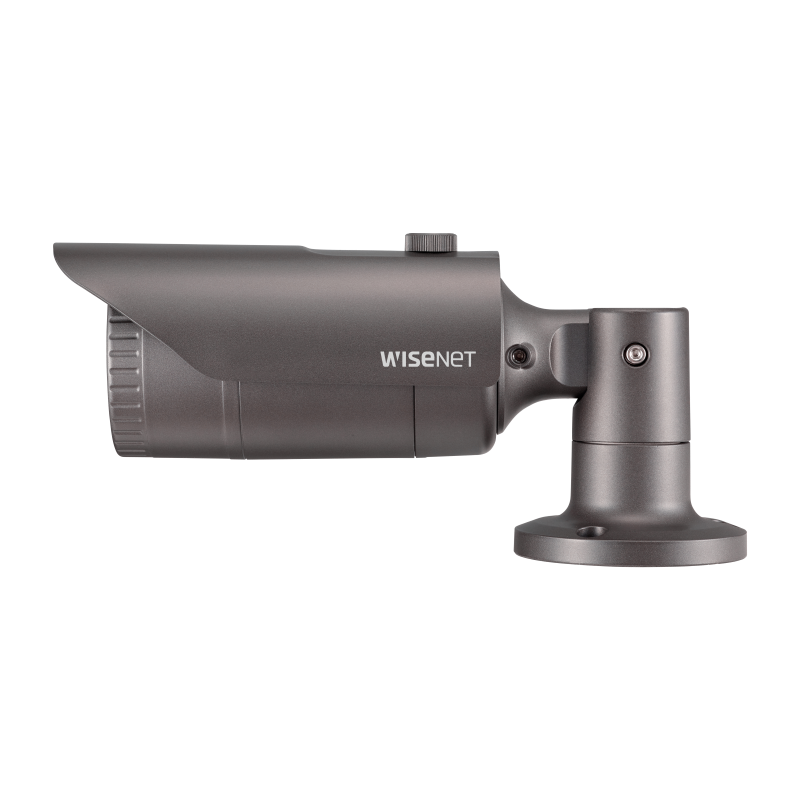

Hanwha - QNO-6012R - 2 MP Network IR Bullet Camera with 2.8mm Lens
Part number:
QNO-6012R
Price:
The QNO-6012R from Hanwha's Q Series affordable network camera line is a 2 Megapixel bullet network camera featuring WiseStream II, Hanwha's compression technology, triple codec H.265/H.264/MJPEG, 2.8mm lens, IR, IP66, IK10, PoE/12VDC, 120dB True WDR, Intelligent Video Analytics, Hallway View, one-way audio and SD card slot (SD/SDHC/SDXC up to 128GB).
Features:
- 2 Megapixel (1920 x 1080) resolution
- Built-in 2.8mm fixed lens
- 30fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
- micro SD (128GB) memory slot, PoE / 12V DC
- IR viewable length 20m, IP66, IK10
- Hallway view support
- Analog video out for easy installation
- LDC support (Lens Distortion Correction)
Video
| Imaging Device | 1/2.8" 2 MP CMOS |
| Effective Pixels | 1920(H) x 1080(V) |
| Minimum Illumination | Color : 0.1Lux (F2.0, 1/30sec) BW : 0Lux (IR LED on) |
Lens
| Focal Length (Zoom Ratio) | 2.8mm fixed focal |
| Maximum Aperture Ratio | F2.0 |
| Angular Field of View | H : 113.74 V : 61.5° D : 134.45° |
| Focus Control | Fixed |
Operational
| IR Viewable Length | 20m (65.62ft) |
| Camera Title | Displayed up to 85 characters, 5 lines, English / Numeric / Special & International characters, 6 colors, Transparency, Auto scale by resolution |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Support |
| LDC | Support |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Video Rotation | Flip, Mirror, Hallway view (90˚/270˚) |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm events | File upload via FTP and e-mail, Notification via e-mail, SD/SDHC/SDXC or NAS recording at event triggers Alarm output, Handover |
| Ethernet | RJ-45 (10/100BASE-T) |
| Resolution | 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360 |
