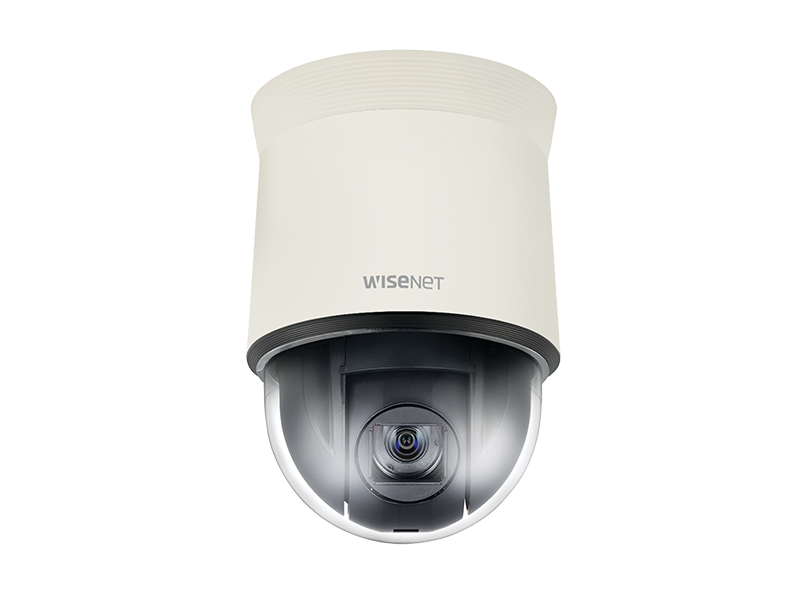

Wisenet Q network indoor PTZ camera, 2MP, Full HD(1080p) 30fps, H.265/H.264/MJPEG, Optical Zoom Lens 23x (4.44-102.1mm), 120dB WDR, true D/N, 500°/sec Pan, SD/SDHC/SDXC, 24VAC/PoE+
Features:
- 2MP (1920 x 1080) resolution
- H.265, H.264, MJPEG codec support
- Multiple streaming, WiseStream II support
- Day & Night (ICR), WDR (120dB)
- DIS with Built-in Gyro sensor
- Tampering, Motion detection
- Memory slot (Max. 256GB)
- IP66
| Video | |
| Imaging Device | 1/2.8" 2.4 MP CMOS |
| Total / Effective Pixels | 1,981(H) x 1,288(V), 2.55 MP / 1,944(H) x 1,212(V), 2.35 MP |
| Minimum Illumination | Color : 0.2Lux (F1.6), B/W : 0.01Lux (F1.6) |
| Lens | |
| Focal Length (Zoom Ratio) | 4.44~102.2mm(23x) zoom |
| Maximum Aperture Ratio | F1.6(Wide)~F3.6(Tele) |
| Angular Field of View | H : 61.8˚(Wide) ~ 3.08˚(Tele) / V : 36.2˚(Wide) ~ 1.73˚(Tele) |
| Focus Control | Auto / Manual / One shot AF |
| Minimum Object Distance | Wide : 1.5m (4.92ft), Tele : 2m (6.56ft) |
| Lens / Mount Type | DC Auto Iris / Board-in type |
| Operational | |
| Camera Title | Off / On (Displayed up to 85 characters) - English / Numeric / Special / International characters - Common : Multi-line (Max. 5), Color (Gray / Green / Red / Blue / Black / White), |
| Day & Night | Auto (ICR) / Color / B/W / Schedule |
| Backlight Compensation | Off / BLC / HLC / WDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSDR (Off / On) |
| Motion Detection | Off / On (8ea, Polygonal) |
| Privacy Masking | Off / On (24 rectangular zones) - Color : Gray / Green / Red / Blue / Black / White - Zoom ratio option for mask mode - Mosaic option |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor (included mercury & Sodium) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1 ~ 1/12,000sec |
| Flip / Mirror | Off / On |
| Alarm Triggers | Alarm input, Motion detection, Video Analytics, Network disconnect |
| Alarm events | File upload Via FTP and E-mail, Notification Via E-mail, TCP and HTTP, Local storage (SD/SDHC/SDXC) or NAS recording at alarm triggers, External output, Preset |
| Ethernet | RJ-45 (10/100 BASE-T) |
| Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
