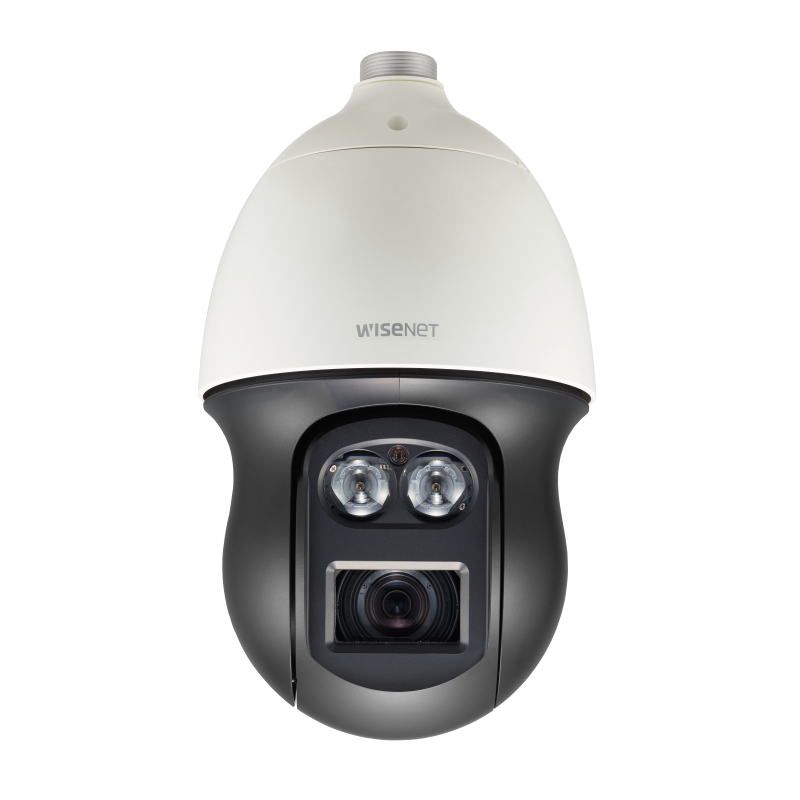

Hanwha - QNP-6230RH - 2MP 23x IR PTZ Camera
Part number:
QNP-6230RH
Price:
The Wisenet Q network outdoor IR PTZ camera, features a 2MP, Full HD(1080p) 30fps, H.265/H.264/MJPEG, Optical Zoom Lens 23x (4.44-102.1mm), with an IR range for up to 328ft for monitoring in situations where no lighting is available. Additional features include 120dB WDR, true D/N, 500°/sec Pan, SD/SDHC/SDXC, Analytics, IP66, IK10, HPoE (802.3bt), Low temperature heater for -58°F 24VAC operation
Features:
- 2MP (1920 x 1080) resolution
- H.265, H.264, MJPEG codec support
- Multiple streaming, WiseStream II support
- IR range for up to 328ft
- Day & Night (ICR), WDR (120dB)
- DIS with Built-in Gyro sensor
- Tampering, Motion detection
- Memory slot (Max. 256GB)
- IP66, IK10, IK10
- 24VAC / HPoE, Built-in -58°F (-50°C) Heater (24VAC only)
| Technical Specifications | |
| Video | |
| Imaging Device | 1/2.8" 2 MP CMOS |
| Effective Pixels | 1944(H)x1212(V) |
| Minimum Illumination | Color: 0.05Lux(F1.6, 1/30sec) BW: 0Lux(IR LED On) |
| Lens | |
| Focal Length (Zoom Ratio) | 4.44~102.2mm(23x) zoom |
| Maximum Aperture Ratio | F1.6(Wide)~F3.6(Tele) |
| Angular Field of View | H: 61.8°(Wide)~3.08°(Tele) / V: 36.2°(Wide)~1.73°(Tele) |
| Focus Control | Oneshot AF |
| Minimum Object Distance | Wide: 1.5m(4.92ft), Tele: 2m(6.56ft) |
| Lens Type | DC auto iris |
| Operational |
| IR Viewable Length | 100m(328.08ft) |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ |
| Motion Detection | 8ea, 8point polygonal zones |
| Privacy Masking | 24ea, rectangular Support - Color: Grey/Green/Red/Blue/Black/White - Mosaic |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation | Flip, Mirror |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output PTZ Preset |
| Ethernet | RJ-45(10/100BASE-T), SFP(Optional) |
| Resolution | 1920x1080, 1280x1024, 1280x960, 1280x720, 1024x768, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
Name
Description
Size
Downloads
File
Specifications
0.3mb
File
Wisenet Q series Brochure
9.1mb
File
QNP-6230RH Quick Guide
4.8mb
File
Hanwha Techwin America - NDAA Compliant Product List
0.4mb
File
QNP-6230RH Manual
12.3mb
