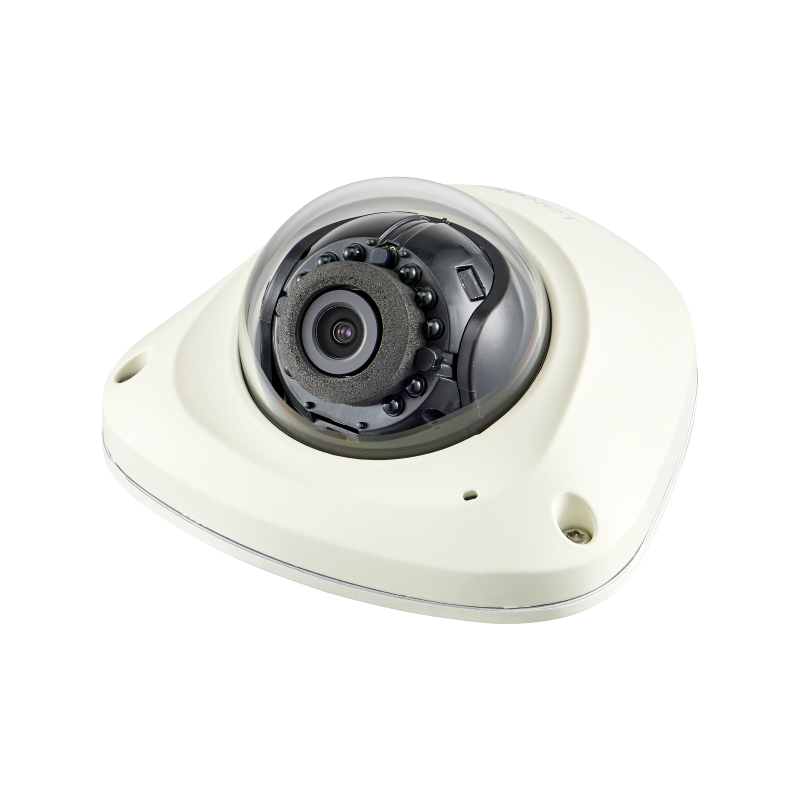

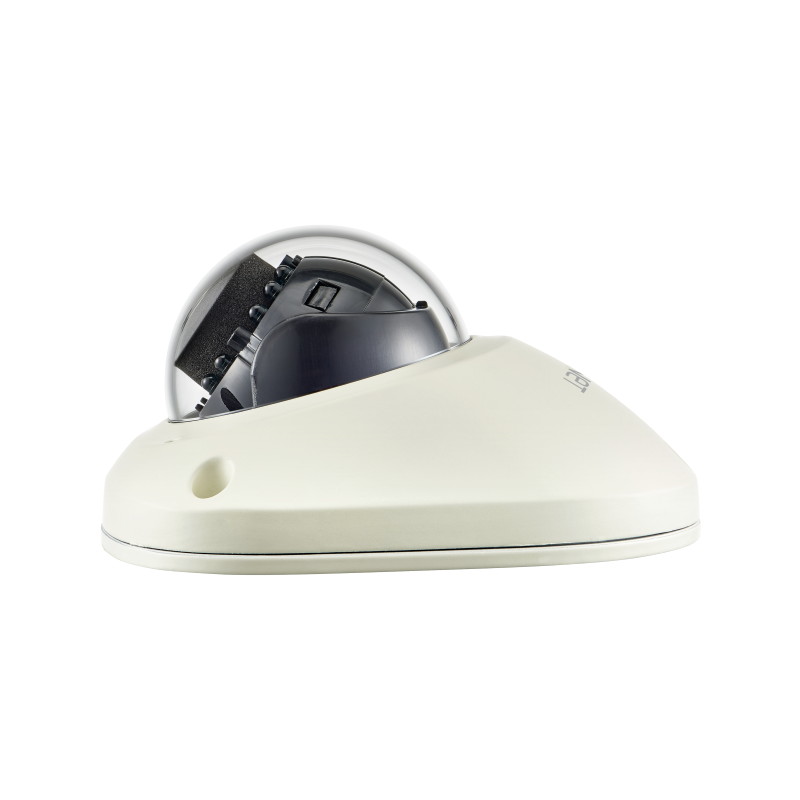

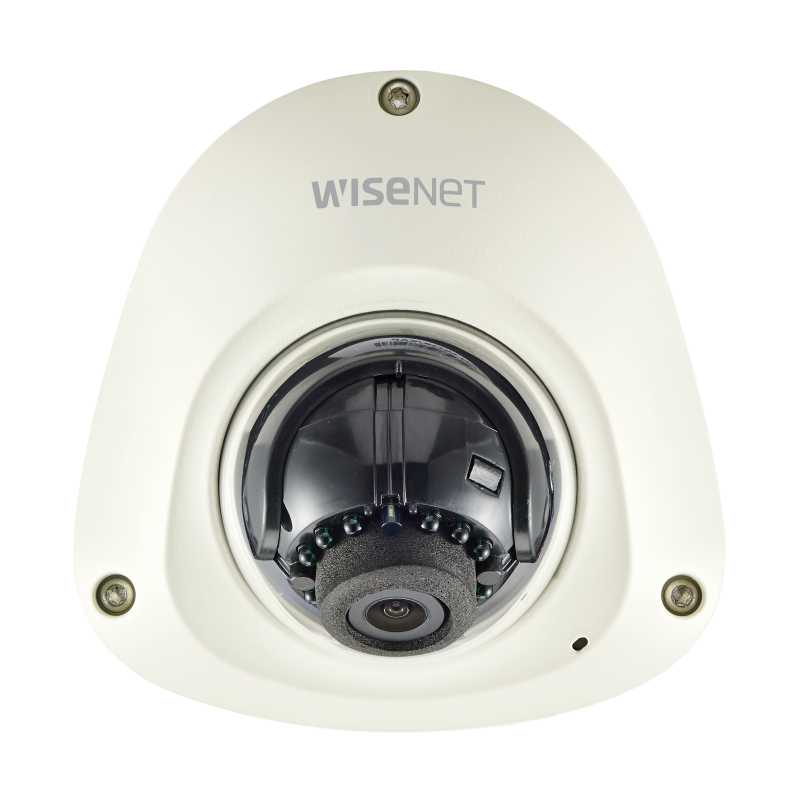

Hanwha - QNV-6024RM - 2MP Full HD Vandal-Resistant Mobile Network IR Flat Dome
Part number:
QNV-6024RM
Price:
The QNV-6024RM mobile network camera has a range of features with 2 megapixel 1080p high definition images with a 3.6mm fixed lens,WDR, and 15 meter IR LEDs. Hallway View mode optimizes the image for portrait orientation, and also includes a built-in microphone. The QNV-6024RM has an M12 connector for secure installation in transportation applications and its vibration resistant build (EN50155, EN50121) ensures reliable video in any transportation environment. Rated to IP66/IK10, it can work effectively in more demanding environments that are prone to severe or varying weather conditions as well as tampering or physical attack.)
Features:
- 1080p @ 30fps
- Dual Codec H.264/MJPEG
- 3.6mm Fixed Lens
- 120dB WDR, analog video out for easy installation
- Motion Detection, Tampering<, Intelligent Video Analytics
- Built-in IR & Mic
- Hallway View, LDC
- SD Memory card slot, 256GB maximum
- IP66/IK10/M12/EN50155/EN50121
- M12 ethernet connector for secure connection to transit rated ethernet switches
- 802.3af PoE Mode A
- Operating temperature range -22°F ~ +131°
Video
| Imaging Device | 1/2.8" 2MP CMOS |
| Effective Pixels | 1920(H) x 1080(V) |
| Minimum Illumination | Color: 0.03Lux(F2.0, 1/30sec) BW: 0Lux(IR LED on) |
Lens
| Focal Length (Zoom Ratio) | 3.6mm fixed focal |
| Maximum Aperture Ratio | F2.0 |
| Angular Field of View | H: 94.8˚ / V: 49.3˚ / D: 114.3˚ |
| Focus Control | Fixed |
Operational
| IR Viewable Length | 15m(49.21ft) |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Flip / Mirror | Flip, Mirror, Hallway view(90˚/270˚) |
| Alarm Triggers | Analytics, Network disconnect |
| Alarm events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers |
| Ethernet | M12 (10/100BASE-T) |
| Resolution | 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360 |
