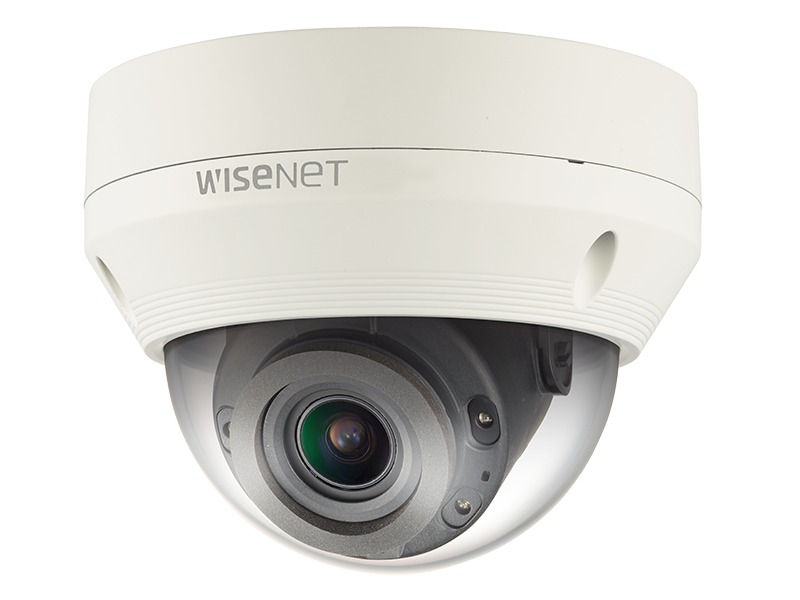

Samsung - QNV-6070R - 2MP Network IR Vandal Resistant Camera
The QNV-6070R from Hanwha's Q Series affordable network camera line is a 2MP outdoor vandal dome network camera featuring WiseStream, Hanwha's compression technology, triple codec H.265/H.264/MJPEG, 2.8 ~ 12.0mm manual varifocal lens, IR, IP66, IK10, PoE/12VDC, 120dB True WDR, Defocus Detection, Hallway View, one-way audio and SD card slot (SD/SDHC/SDXC up to 128GB).
- Max. 2M (1920 x 1080) resolution
- 2.8 ~ 12mm (4.3x) varifocal lens
- Max. 30fps@2M all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Motion detection, Tampering, Defocus detection
- micro SD (128GB) memory slot, PoE / 12V DC
- IR viewable length 30m, IP66, IK10
- Hallway view support (Rotate 90˚/270˚)
- LDC support (Lens Distortion Correction)
Part number:
QNV-6070R
Price:
Video
| Imaging Device | 1/2.9" 2.19M CMOS |
| Effective Pixels | 1,984(H) x 1,105(V) |
| Minimum Illumination | Color : 0.095Lux (30IRE), B/W : 0Lux (IR LED on) |
Lens
| Focal Length (Zoom Ratio) | 2.8 ~ 12mm (4.3x) manua |
| Maximum Aperture Ratio | F1.4 |
| Angular Field of View | H : 103.8˚ ~ 32.4˚ / V : 53.7˚ ~ 18.4˚ / D : 121.9˚ ~ 37.1˚ |
| Focus Control | Manual |
| Lens Type | DC auto iris |
| Mount Type | Board type |
Operational
| IR Viewable Length | 30m (98.42ft) |
| Camera Title | Off / On (Displayed up to 20 characters per line) - W/W : English / Numeric / Special characters - China : English / Numeric / Special / Chinese characters - Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution |
| Day & Night | True Day & Night |
| Backlight Compensation | Off / BLC / WDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR (Off / On) |
| Motion Detection | Off / On (4ea polygonal zones) |
| Privacy Masking | Off / On (6ea rectangular zones) |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Off / On (5 levels with min / max) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker |
| Flip / Mirror | Flip / Mirror / Hallway view |
| Alarm I/O | Input 1 / Output 1 |
| Alarm Triggers | Motion detection, Tampering detection, SD card error, NAS error, Alarm input, Defocus detection |
| Alarm events | File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail, External output |
| Ethernet | RJ-45 (10/100BASE-T) |
| Resolution | 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 720 x 576, 720 x 480, 640 x 480, 320 x 240 |
