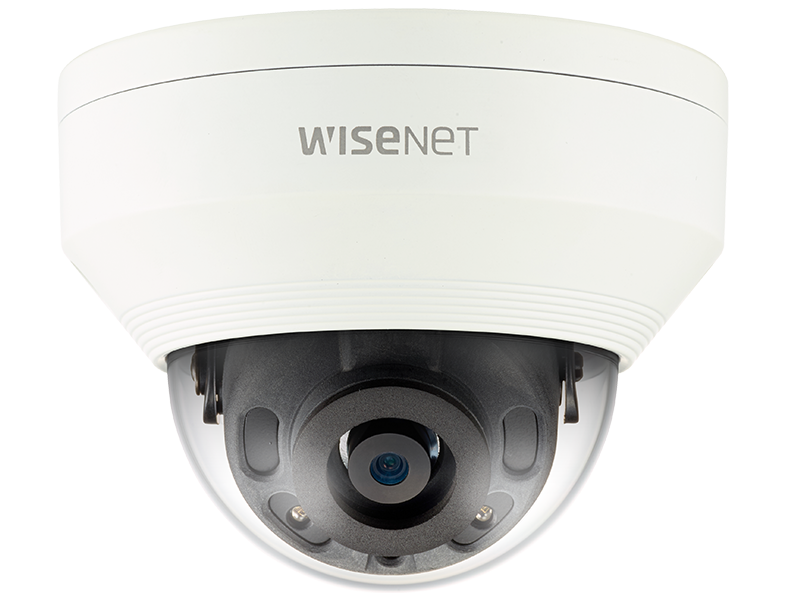

Hanwha - QNV-7020R - 4MP Network IR Vandal Resistant Camera
Part number:
QNV-7020R
Price:
The QNV-7020R from Hanwha's Q Series affordable network camera line is a 4MP outdoor vandal dome network camera featuring WiseStream, Hanwha's compression technology, triple codec H.265/H.264/MJPEG, 3.6mm lens, IR, IP66, IK10, PoE/12VDC, 120dB True WDR, Defocus Detection, Hallway View, one-way audio and SD card slot (SD/SDHC/SDXC up to 128GB).
Features:
- Max. 4M resolution
- Built-in 3.6mm fixed lens
- Max. 20fps@4M, Max.30fps@2M all resolutions
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Motion detection, Tampering, Defocus detection
- micro SD (128GB) memory slot, PoE / 12V DC
- IR viewable length 25m, IP66, IK10
- Hallway view support
- LDC support (Lens Distortion Correction)
| Technical Specifications | |
| Video | |
| Imaging Device | 1/3" 4M CMOS |
| Effective Pixels | 2,688(H) x 1,520(V) |
| Minimum Illumination | Color : 0.5Lux (QNV-7010R), 0.4Lux (QNV-7020R), 0.3Lux (QNV-7030R) |
| Lens | |
| Focal Length (Zoom Ratio) | 3.6mm fixed |
| Maximum Aperture Ratio | F2.2 |
| Angular Field of View | H : 81.0˚ / V : 45.0˚ / D : 95.0˚ |
| Focus Control | Simple focus (Motorized V/F) / Manual, Remote control via network |
| Lens Type | Fixed |
| Mount Type | Board type |
| Operational |
| IR Viewable Length | 25m (82.02ft) |
| Camera Title | Off / On (Displayed up to 20 characters per line) - W/W : English / Numeric / Special characters - China : English / Numeric / Special / Chinese characters - Common : Multi-line (Max. 5), Color (Grey / Green / Red / Blue / Black / White), Transparency, Auto scale by resolution |
| Day & Night | True Day & Night |
| Backlight Compensation | Off / BLC / WDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNR (Off / On) |
| Motion Detection | Off / On (4ea polygonal zones) |
| Privacy Masking | Off / On (6ea rectangular zones) |
| Gain Control | Off / Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC (Lens distortion correction) | Off / On (5 levels with min / max) |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker |
| Flip / Mirror | Flip / Mirror / Hallway view |
| Alarm I/O | Input 1 / Output 1 |
| Alarm Triggers | Motion detection, Tampering detection, SD card error, NAS error, Alarm input, Defocus detection |
| Alarm events | File upload via FTP and E-mail, Local storage recording at event, Notification via E-mail, External output |
| Ethernet | RJ-45 (10/100BASE-T) |
| Resolution | 2592 x 1520, 2560 x 1440 (16 : 9), 2304 x 1296, 1920 x 1080, 1280 x 1024, 1280 x 960, 1280 x 720, 1024 x 768, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360, 320 x 240 |
