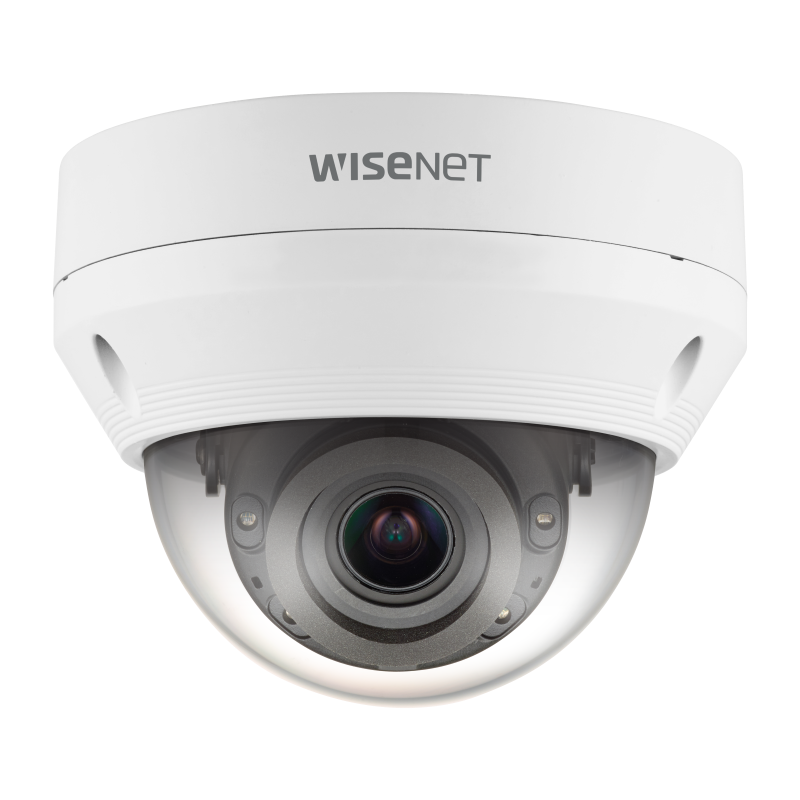

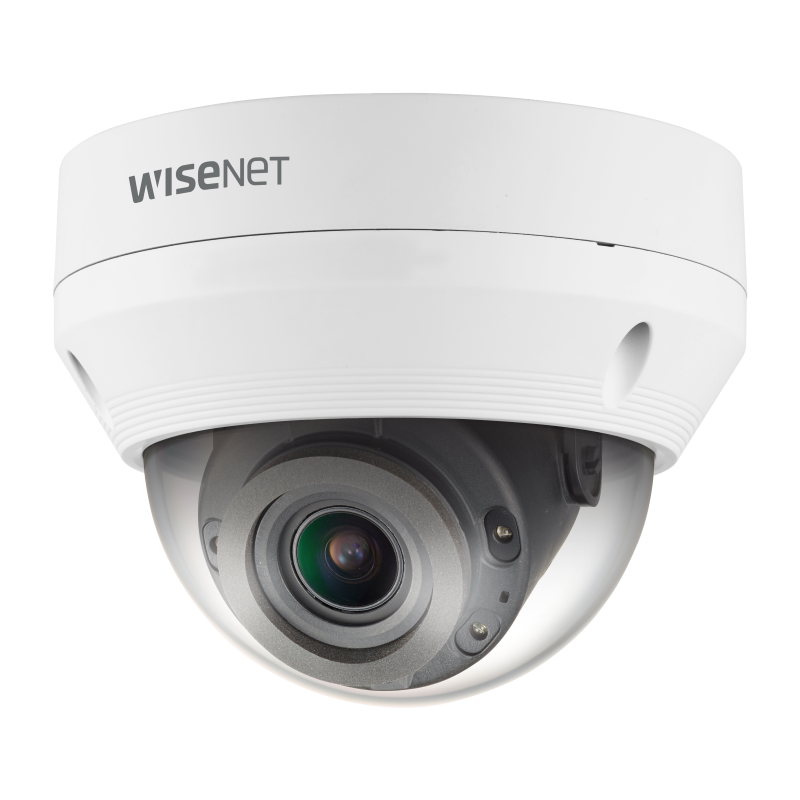

Hanwha - QNV-8080R - 5MP IR Outdoor Dome
Part number:
QNV-8080R
Price:
The QNV-8080R from Hanwha's Q Series affordable network camera line is a 5 Megapixel Outdoor Vandal Resistant Dome network camera featuring WiseStream II, Hanwha's compression technology, triple codec H.265/H.264/MJPEG, 3.2~10mm motorized varifocal lens, IR, IP66, IK10, PoE, 120dB True WDR, Intelligent Video Analytics, Hallway View, and SD card slot (SD/SDHC/SDXC up to 128GB). The simple focus feature provides quick and easy focus with the press of a button.
Features:
- 5 Megapixel resolution
- 3.2~10mm (3.1x) motorized varifocal lens
- 30fps@all resolutions (H.265/H.264)
- H.265, H.264, MJPEG codec supported, Multiple streaming
- Day & Night (ICR), WDR (120dB)
- Defocus detection, Directional detection, Motion detection, Enter/Exit, Tampering, Virtual line
- micro SD (128GB) memory slot, PoE
- IR viewable length 30m, IP66, IK10
- Hallway view support
- Analog video out & simple focus for easy installation
- LDC support (Lens Distortion Correction)
| Video | |
| Imaging Device | 1/2.8" 5 MP CMOS |
| Effective Pixels | 2592(H) x 1944(V) |
| Minimum Illumination | Color : 0.15Lux (F1.6, 1/30sec) BW : 0Lux (IR LED on) |
| Video Out | CVBS : 1.0 Vp-p / 75Ω composite, 720 x 480 for installation |
| Lens |
| Focal Length (Zoom Ratio) | 3.2~10mm (3.1x) motorized varifocal |
| Maximum Aperture Ratio | F1.6(Wide) ~ F2.9(Tele) |
| Angular Field of View | H : 100.3°(Wide)~31.2°(Tele) / V : 72.3°(Wide)~23.5°(Tele) / H : 133.1°(Wide)~38.8°(Tele) |
| Focus Control | Simple focus |
| Operational |
| IR Viewable Length | 30m (98.43ft) |
| Camera Title | Displayed up to 85 characters, 5 lines, English / Numeric / Special & International characters, 6 colors, Transparency, Auto scale by resolution |
| Day & Night | Auto (ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRV |
| Motion Detection | 4ea, polygonal zones |
| Privacy Masking | 6ea, rectangular zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Digital PTZ | 24x, Digital PTZ (Preset, Group) |
| Video Rotation | Flip, Mirror, Hallway view (90˚/270˚) |
| Alarm I/O | Input 1ea / Output 1ea |
| Alarm Triggers | Analytics, Network disconnect, Alarm input |
| Alarm events | File upload via FTP and e-mail, Notification via e-mail, SD/SDHC/SDXC or NAS recording at event triggers, Alarm output, Handover |
| Ethernet | RJ-45 (10/100BASE-T) |
| Resolution | 2592 x 1944, 1920 x 1080, 1280 x 960, 1280 x 720, 800 x 600, 800 x 448, 720 x 576, 720 x 480, 640 x 480, 640 x 360 |
