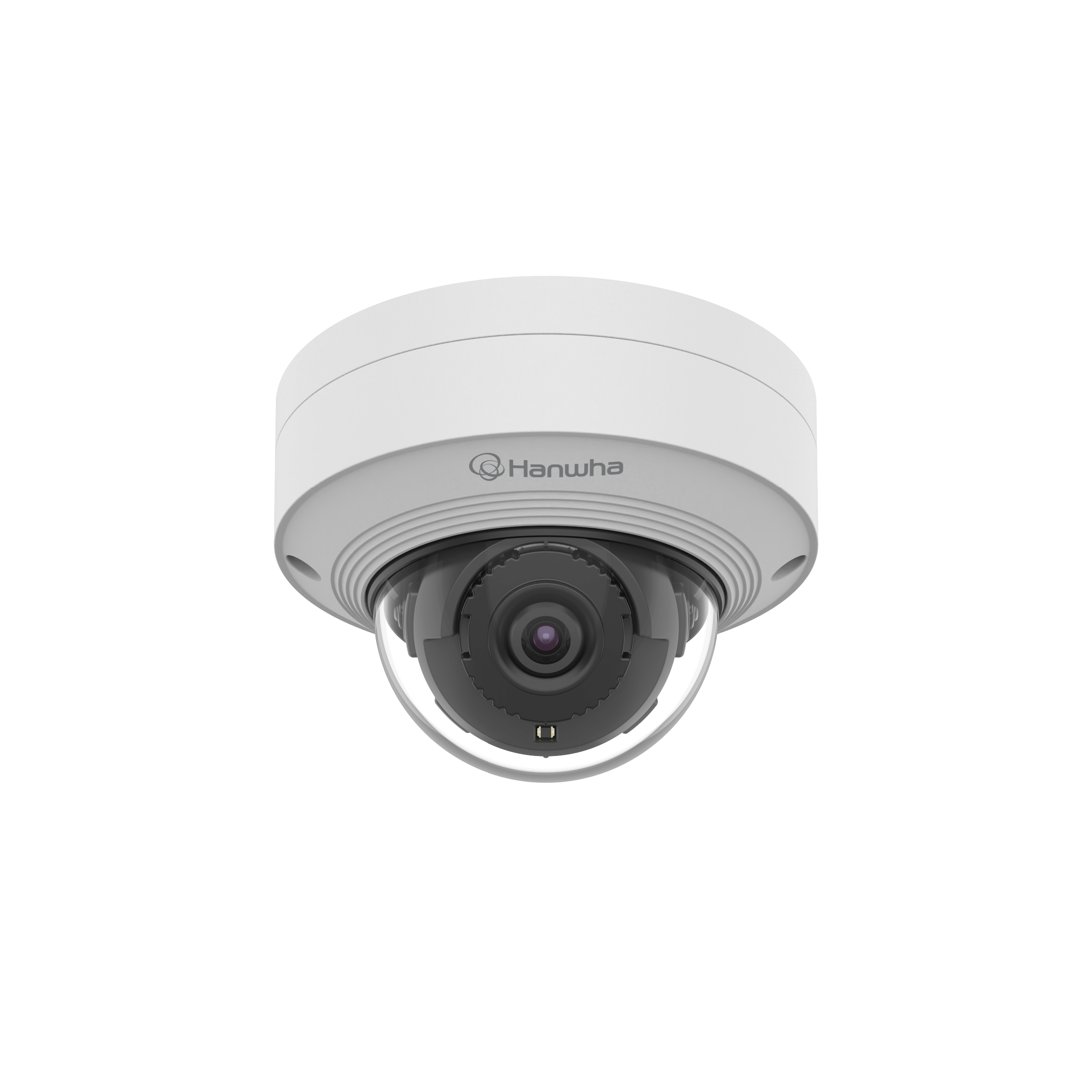

Now the Wisenet Q series meets AI with advanced Object Detection and accurate Motion Detection of AI Objects, eliminating false positives from foliage, lighting changes, etc. Mini form factor is perfect for office, retail, school, & many more settings.
Features:
- 5MP resolution
- 2.4mm fixed lens (H:123°/V: 91°)
- 30fps@all resolutions (H.265/H.264)
- Triple codec H.265/H.264/MJPEG with Wisestream III (Based on AI engine), WiseNRII(Based on AI engine), WDR 120dB
- Day & Night (ICR), WDR (120dB)
- Defocus detection, Appear/Disappear, Tampering, Motion Detection based on AI engine, AI Object Detection - Classified object type: Person/Vehicle (vehicle type: car/bus/truck/motorcycle/bicycle); IVA events based on AI engine: Virtual line (Crossing/Direction), Virtual area (Loitering/Intrusion/Enter/Exit)
- People Counting, Heatmap, Queue Management, & Vehicle Counting
- micro SD (256GB) memory slot, PoE / 12V DC
- IP66, IK10
- Hallway view support
- LDC support (Lens Distortion Correction)
- USB for easy installation, open platform
- Operating temperature -40°C~+55°C (-40°F ~ +131°F), white color
| Specifications | |
| Video | |
| Imaging Device | 1/2.8" CMOS |
| Resolution | 2592x1944, 2560x1440, 1920x1080, 1280x960, 1280x720, 800x600, 800x448, 720x576, 720x480, 640x480, 640x360, 320x240 |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 30fps(@5MP Max. 5fps) |
| Min. Illumination | Color: 0.05Lux (F2.0, 1/30sec) BW: 0.005Lux (F2.0, 1/30sec, 30IRE) |
| Video Out | USB: Micro USB Type B, 1280x720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 2.4mm fixed focal |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H: 123°/ V: 91°/ D: 159° |
| Min. Object Distance | 0.5m (1.64ft) |
| Focus Control | Fixed |
| Lens Type | Fixed IRIS |
| Mount Type | M12 |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0°~350° / -35°~70° / 0°~355° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | 120dB |
| Digital Noise Reduction | SSNRⅤ, WiseNRⅡ(Based on AI engine) |
| Motion Detection | 8ea, 8point Polygonal zones |
| Privacy Masking | 32ea, 4point quadrangle zones |
| Gain Control | Low / Middle / High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) |
| Digital PTZ | Support |
| Video Rotation | Flip, Mirror, Hallway view(90°/270°) |
| Business Intelligence | None → ( will be supported as R/C in July) Based on AI engine: People counting, Vehicle counting, Queue management, Heatmap |
| Alarm Events | When alarm trigger occurred
|
| Network | |
| Ethernet | RJ-45(10/100BASE-T) |
| Video Compression | H.265/H.264: Main/High, MJPEG |
| Smart Codec | Manual(5ea area), WiseStreamⅡ → ( will be supported as R/C in July) Manual(5ea area), WiseStreamⅢ(Based on AI engine) |
| Video Quality Adjustment | H.264/H.265: Target bitrate level control MJPEG: Quality Level control |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
| Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 5 profiles) |
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, SRTP (TCP, UDP Unicast) |
| Application Programming Interface | ONVIF Profile S/G/T/M SUNAPI(HTTP API) |
| Security | |
| OS / Firmware Protect | Secure boot, Signed firmware, Firmware encryption |
| User authentication | Digest Authentication, Prevent brute-force attack |
| Network authentication | 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) |
| Secure Communication | HTTPS, SRTP, WSS(Websocket secure) |
| Access Control | Access control based on IP address |
| Data Protect | Authentication information encryption, ZIP compression encryption |
| Audit | User Access/System/Event log management |
| Device ID | Device Certificate(Hanwha Private Root CA) |
| Secure Storage | SDcard partition encrypt |
| Security Certificate | Secure by default |
| General | |
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 256GB |
| Memory | 2GB RAM, 1GB Flash |
| Environmental & Electrical | |
| Operating Temperature / Humidity | -40°C~+55°C(-40°F ~ +131°F) / 0~95% RH * Start up should be done at above -30°C Humidity control /w Air vapor control |
| Storage Temperature / Humidity | -50°C~+60°C(-58°F ~ +140°F) / 0~95% RH |
| Certification | IP66, IK10, NEMA4X |
| Input Voltage | PoE(IEEE802.3af, Class3) |
| Power Consumption | PoE: Max 7W, typical 4.9W |
| Mechanical | |
| Color / Material | White / Aluminum Bubble : Hard-coated dome |
| RAL Code | RAL9003 |
| Product Dimensions / Weight | ø110x77mm(ø4.33x3.03"), 522g(1.15 lb) |
| Compatible Conduit hole / Gangbox | SBD-110GP1 : Single, Double, 4" Octagon (Sold seperately) |
| Hanging Mount (Dome) | SBP-120HMW |
| Backbox | SBV-140BW |
| Environment | IEC/EN 63000 IEC/EN 60529 IP66, IEC/EN 62262 IK10 |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | 28.1m(92.35ft) |
| Observe (63PPM/ 19PPF) | 11.3m(36.94ft) |
| Recognize (125PPM/ 38PPF) | 5.6m(18.47ft) |
| Identify (250PPM/ 76PPF) | 2.8m(9.23ft) |
