4K NVR supports: 16 channels with 16 PoE ports, H.265/H.264/MJPEG, ARB (Automatic Recovery Backup), 2 fixed internal SATA HDDs (12TB max), maximum resolution of 8MP recording/display, QR code connect
- Up to 16ch 8 megapixel supported
- H.265, H.264, MJPEG codec supported
- 128Mbps network camera recording
- Plug & play by 16 PoE ports
- Maximum 2 HDDs (up to 6Tb each) supported
- HDMI/VGA local monitor
- P2P service (QR code connect) support
|
|
|

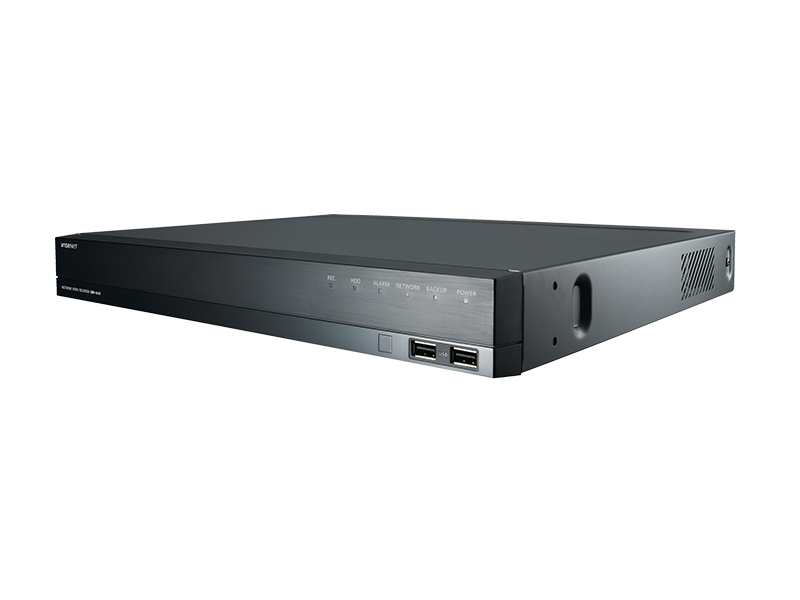

QRN-1610S |
|
|
DISPLAY |
|
|
|
|
Network |
Inputs |
Max. 16ch |
|
|
Resolution |
CIF~8MP |
|
|
|
Camera |
|
||
|
Protocols |
Wisenet, ONVIF (Profile-S), RTSP |
|
|
|
|
|
||
|
|
Local Display |
1x HDMI / 1x VGA |
|
|
Live |
Multi-Channel Display |
[Local Monitor] 1 / 2H / 2V / 3V / 4 / 6 / 8 / 9 / 13 / 16 / Auto Sequence |
|
|
[Web] 1 / 4 / 9 / 16 / Auto Sequence |
|
||
|
|
|
||
|
|
Performance |
[Local Monitor] 8MP (60fps) |
|
|
|
5MP (90fps), 3MP (120fps), 2MP (240fps), 720p (480fps), D1 (480fps) |
|
|
|
|
|
|
|
PERFORMANCE |
|
|
|
|
Operating System Embedded |
Linux |
||
|
|
Compression |
H.265,H.264,MJPEG |
|
|
|
Recording Bandwidth |
Max. 128Mbps |
|
|
Record |
Resolution |
CIF~8MP |
|
|
Type |
Manual, Schedule (Continuous / Event), Event (Pre / Post) |
||
|
|
|||
|
|
Event Trigger |
Alarm Input (4), Video Loss, Camera event (Sensor, MD, Video analytics, Defocus) |
|
|
|
Event Action |
e-Mail, PTZ Preset, Alarm Out, Buzzer, Monitor Out |
|
|
|
Playback Bandwidth |
32Mbps (8ch simultaneously) |
|
|
|
Performance |
Max. 3 Users (Local 1,Remote 3) |
|
|
|
Mode |
Date & Time (Calendar) / Event Log list / Text Search (POS) / ARB Search / Smart |
|
|
Search & Play |
Search (Virtual Line w / direction, Enter / Exit) |
||
|
Simultaneous playback |
|||
|
Max. 8ch (Local), Max 16ch (Network) |
|||
|
|
|||
|
|
Resolution |
CIF~8MP |
|
|
|
Fish-Eye Dewarping |
N/A (processed on Web / CMS) |
|
|
|
Playback Control |
Fast / Slow Forward / Backward, Move one step Up / Down |
|
|
Storage |
Default Built-In |
0~6TB |
|
|
Internal |
2 (Max.12TB) |
||
|
|
|||
|
Backup |
File backup |
BU / Exe (USB), JPG / AVI (Web, CMS) |
|
|
|
Function |
Multi channel (Upto 16ch) Play, Date-Time / Title display |
|
|
Sensor |
I/O |
4/2(NO1EA,NO/NC1EA) |
|
|
|
Input |
16 ch (network) |
|
|
Audio |
Compression |
G.711, G.726, AAC (16 / 48KHz) |
|
|
NETWORK |
Audio Communication |
2-Way |
|
|
|
TCP / IP, UDP / IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), |
||
|
Protocol |
|
||
|
|
PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), |
||
|
DDNS |
|
SUNAPI (Server, Client) |
|
|
|
Hanwha DDNS, 3rd party DDNS |
||
|
Transmission Bandwidth |
128Mbps |
||
|
Max Remote Users |
Search (3), Live Unicast (10), Multicast (20) |
||
|
IP Version |
|
IPv4 / IPv6 |
|
|
Security |
|
User access Log, IP Filtering, 802.1x, Encryption |
|
|
|
GUI |
English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, |
|
|
|
Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, |
||
|
Language |
|
Norwegian, Finnish, Korean, Chinese (Simplified), Japanese, Thai |
|
|
|
English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Swedish, |
||
|
|
Web |
||
|
|
Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, |
||
|
OS |
|
Norwegian, Finnish, Korean, Chinese (Simplified), Japanese, Thai |
|
|
|
Windows 7, 8, 10, Mac OS X 10.9. 10.10. 10.11 |
||
|
Web Browser |
|
Plug-in free web viewer : Google Chrome 47, MS Edge 20 |
|
|
|
Plug-in Webviewer : MS Explorer 11, Apple Safari 9 (Mac OS X only) |
||
|
|
Type |
||
|
Viewer |
SSM, Webviewer, Smart Viewer, Wisenet Mobile |
||
|
Software |
CMS Support |
Support SDK / CGI (SUNAPI) |
|
|
FUNCTIONS |
Register |
PnP, Manual |
|
|
|
|||
|
Camera Setup |
Setup Items |
IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD |
|
|
setup, Camera video setup (Simple focus, Brightness / Contrast, Flip / Mirror, IRIS, |
|||
|
|
|
WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping setup, Hallway View |
|
|
|
|
Setup, Camera Webpage |
|
|
Camera Control PoE |
Monitor PoE Power consumption, On / Off Control for each PoE camera, Remote |
||
|
Reset for each PoE camera |
|||
|
|
|
||
|
Easy Configuration |
Setup Wizard (Date / Time, Network, Auto Camera Configuration) , |
||
|
P2P (QR code) |
|||
|
ARB |
|
||
|
|
Yes |
||
|
PTZ |
Control |
Via GUI, Webviewer, 255 preset |
|
|
|
Support Model |
iOS, Android |
|
|
Smart phone |
Protocol Support |
RTP,RTSP,HTTP,CGI(SUNAPI) |
|
|
Control |
Live (16ch) : Multi-Profile Support , Playback (4ch), Event push |
||
|
System Control |
|||
|
|
Max. Remote Users |
Search (3), Live Unicast (10), Multicast (20) |
|
|
INDICATOR/INTERFACE |
LED (Status indicator) : 6ea |
||
|
|
|
||
|
Front |
Indicator |
||
|
HDD action 1, Alarm 1, Power 1, Record 1, Backup 1, Network1 |
|||
|
|
VGA |
||
|
|
1EA (1920x1080, 1280x720), supports Live, Playback, Setup, |
||
|
|
HDMI |
1EA (3840 x 2160, 1920x1080, 1280x720), supports Live, Playback, Setup |
|
|
|
Audio |
Out (1EA, RCA, Line) |
|
|
|
Ethernet |
16EA (PoE, 100Mbps) |
|
|
|
1EA(WAN,1Gbps) - WAN : Uplink to CMS/LAN |
||
|
|
Alarm |
||
|
Connectors |
In (4EA, Terminal Block) / Out (2EA, Terminal Block) |
||
|
|
USB |
Front 2EA (USB2.0), Rear 1 (USB3.0) |
|
|
|
Ext. Storage |
N/A |
|
|
|
Serial |
N/A |
|
|
|
Reset |
Switch (1EA) |
|
|
|
Power Cord |
Included |
|
|
SYSTEM |
|||
|
|
|
||
|
Log |
Log List |
Max. 20000 (System Log, Event Log each) |
|
|
ENVIRONMENTAL |
|
||
|
Operating Temperature / Humidity |
+0°C to +40°C (+32℉ to +104℉) |
||
|
Humidity |
|
20%~85%RH |
|
|
ELECTRICAL |
|
|
|
|
Power Input |
|
100 to 240 VAC ±10% |
|
|
Power Consumption |
Max. 158.2W (2HDDs, PoE on), Max. 34.6W (2HDDs, PoE off) |
||
|
PoE Budget |
|
Max. 100W |
|
|
MECHANICAL |
|
|
|
|
Color / Material |
|
Black / Metal |
|
|
Dimension (WxHxD) |
W370.0 x H44.0 x D320 mm (1U) (14.56" x 1.73" x 12.59") |
||
|
Weight |
|
2.79Kg (6.15 Ib) (without HDD) |
|
