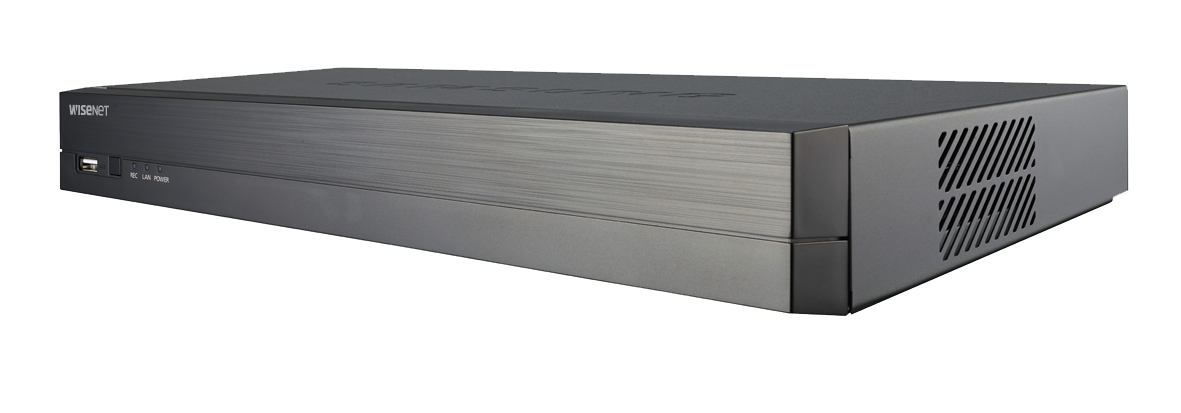

The QRN-410 network video recorder supports 4K UHD resolution and up to 4 channels of video, additional features include 8MP IP camera recording/display, H.265/H.264/MJPEG streaming, auto-recovery backup, 1 fixed internal SATA HDD (6TB max.), WiseStream compression Technology, Hallway View support and fisheye dewarping on CMS, the QRN-410 is ideal for small size applications that require high resolution recording, and the bandwidth reducing the efficiency of H.265 compression and WiseStream technology.
- Up to 4CH @8MP each
- Supports H.265/H.264/MJPEG
- Maximum 1 HDD
- HDMI/VGA local
- HDMI up to UHD (4K) resolution
- ONVIF camera compliant
|
DISPLAY |
|
|
||
|
Video |
Inputs |
Up to 4CH |
||
|
Resolution |
CIF ~ 8MP |
|||
|
|
|
Protocols |
Wisenet, ONVIF, RTSP |
|
|
|
|
Local Display |
HDMI / VGA |
|
|
Live |
Multi Screen Display |
[Local monitor] 1 / 2V / 3V / 4 / Auto sequence |
||
|
[Web] 1 / 4 / Auto sequence |
||||
|
|
||||
|
|
|
Performance |
[Local monitor] 8MP (60fps), 5MP (90fps), 3MP (120fps), 2MP (240fps), |
|
|
|
|
720p (240fps), D1 (240fps) |
||
|
PERFORMANCE |
|
|||
|
Operating System |
Embedded |
Linux |
||
|
|
|
Compression |
H.265, H.264, MJPEG |
|
|
|
|
Recording Bandwidth |
50Mbps |
|
|
Recording |
Resolution |
CIF ~ 8MP |
||
|
Mode |
Manual, Schedule (Continuous / Event), Event (Pre / Post) |
|||
|
|
|
|||
|
|
|
Event Trigger |
Alarm input (4), Video loss, Camera event (Sensor, MD, Video analytics, Defocus) |
|
|
|
|
Event Action |
E-mail, PTZ preset, Alarm out, Buzzer, Monitor out |
|
|
|
|
Playback Bandwidth |
32Mbps (4CH simultaneously) |
|
|
|
|
Performance |
Max. 3 users (Local 1, Remote 3) |
|
|
Search & |
Mode |
Date & Time (Calendar) / Event log list / Text search (POS, ANPR), |
||
|
ARB search, Smart search (Virtual Line w/ direction, Enter / Exit) |
||||
|
Playback |
|
|||
|
Simultaneous Playback |
Up to 4CH (Local, Network) |
|||
|
|
|
|||
|
|
|
Resolution |
CIF ~ 8MP |
|
|
|
|
Playback Control |
Fast/Slow Forward/Backward, Move one step up/down |
|
|
Storage |
Default Built-In |
0TB ~ 6TB (Dependent on region) |
||
|
Internal |
1 (Max.6TB) |
|||
|
|
|
Max. Capacity |
6TB |
|
|
Backup |
File Backup |
BU/EXE (USB), JPG/AVI (Web, CMS) |
||
|
Function |
Multi channel (Up to 8CH) play, Date-time/title display |
|||
|
|
|
|||
|
Sensor |
Input / Output |
4 / 2 (NO 1ea, NO/NC 1ea) |
||
|
Audio |
Input |
4CH (Network) |
||
|
Compression |
G.711, G.726, AAC (16/48KHz) |
|||
|
|
|
Audio Communication |
2-way |
|
|
NETWORK |
|
|
||
|
Protocol Support |
TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, |
|||
|
Client), PPPoE, SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, |
||||
|
|
|
|
ONVIF (Profile-S), SUNAPI (Server, Client) |
|
|
DDNS |
|
Hanwha DDNS, 3rd party DDNS |
||
|
Transmission Bandwidth |
64Mbps |
|||
|
Max. Remote Users |
Search 3 / Live unicast 10 / Live multicast 20 |
|||
|
IP |
|
IPv4 / IPv6 |
||
|
Security |
|
IP address filtering, User access log, 802.1x authentication, Encryption |
||
|
Language |
GUI / Web |
English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, |
||
|
Swedish, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, |
||||
|
|
|
|
Greek, Norwegian, Finnish, Korean, Chinese(Simplified), Japanese, Thai |
|
|
OS |
|
Supported OS : Windows 7, 8, 10, Mac OS X 10.8, 10.9, 10.10, 10.11 |
||
|
|
||||
|
|
|
|
Non-plugin Webviewer |
|
|
Web Browser |
|
Supported Browser : Google Chrome 47, MS Edge 20, Mozilla Firefox |
||
|
|
Plug-in Webviewer |
|||
|
|
|
|
||
|
|
|
|
Supported MS Explorer 11, Apple Safari 9 * Mac OS X only |
|
|
Viewer |
Type |
Wisenet WAVE, SSM, Webviewer, SmartViewer, Wisenet mobile viewer |
||
|
Software |
CMS Support |
SDK / CGI (SUNAPI) |
||
|
FUNCTIONS |
|
|
||
|
|
|
Register |
Auto mode, Manual mode |
|
|
Camera Setup |
|
IP address, Add profile edit, Bitrate, Compression, GOP, Quality, |
||
|
Setup Items |
Camera MD setup, Camera video setup (Simple focus, Brightness / |
|||
|
|
|
|
Contrast, Flip / Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), |
|
|
|
|
|
Fisheye dewarping (Web), Hallway view setup, Camera webpage |
|
|
Easy Configuration |
Setup wizard (Date/Time, Network, Auto camera configuration), |
|||
|
P2P (QR code) |
||||
|
|
|
|
||
|
Redundancy |
ARB |
Yes |
||
|
PTZ |
Control / Preset |
Via GUI, Webviewer, 255 presets |
||
|
|
|
OS |
Android, iOS |
|
|
Smart Phone |
Protocol Support |
RTP, RTSP, HTTP, CGI (SUNAPI) |
||
|
Control |
Live (4CH) : Multi-profile support, Playback (1CH), Event push |
|||
|
INDICATOR / |
Max. Remote Users |
Search 3 / Live unicast 10 / Live multicast 20 |
||
|
INTERFACE |
|
|||
|
System Control |
|
Mouse, IR Remote, Web |
||
|
|
|
|
|
|
|
Front |
Indicator |
Power status LED 1ea, LAN LED 1ea, Record status LED 1ea |
||
|
|
|
VGA |
1ea, supports Live, Playback, Setup |
|
|
|
|
HDMI |
1ea, support up to 4K (3840 x 2160), supports Live, Playback, Setup |
|
|
|
|
Audio |
Out 1ea (RCA, Line) |
|
|
|
|
|||
|
Connections |
Ethernet |
1ea (WAN, 1Gbps) - WAN : Uplink to LAN/CMS |
||
|
Alarm |
In 4ea (Terminal block) / Out 2ea (Terminal block) |
|||
|
|
|
|||
|
|
|
USB |
2ea (Front 1, Rear 1) |
|
|
|
|
Reset |
Switch (1ea) |
|
|
|
|
Power Cord |
Included |
|
|
SYSTEM |
|
|
|
|
Log |
Log List |
Max. 20,000 (System log, Event log each) |
|
|
GENERAL |
Input Voltage / Current |
12V DC / 4A |
|
|
|
|
||
|
Electrical |
Power Consumption |
MAX. 9W(31BTU, 2TB HDD x 1ea) |
|
|
|
|||
|
Environmental |
Operating Temperature |
+0°C ~ +40°C (+32°F ~ +104°F) |
|
|
Operating Humidity |
20% ~ 85% RH |
||
|
|
Color / Material |
Black / Metal |
|
|
Mechanical |
Dimensions (WxHxD) |
300.0 x 48.0 x 208.7mm (17.32" x 1.89" x 8.22") (1U) |
|
|
|
Weight |
1.66Kg (3.66 lb) (2TB HDD) |
