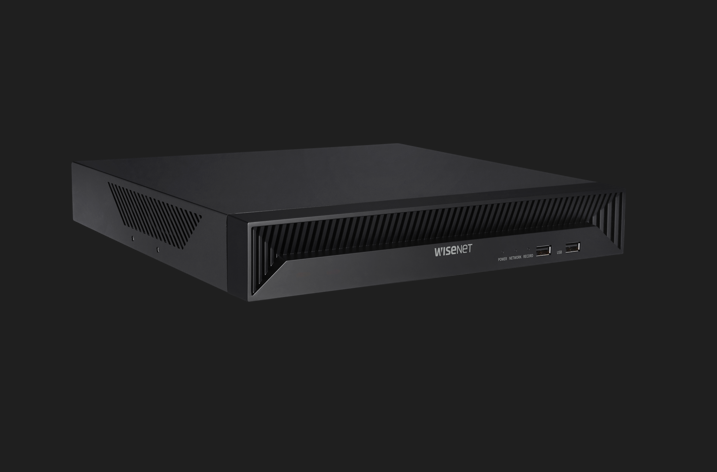

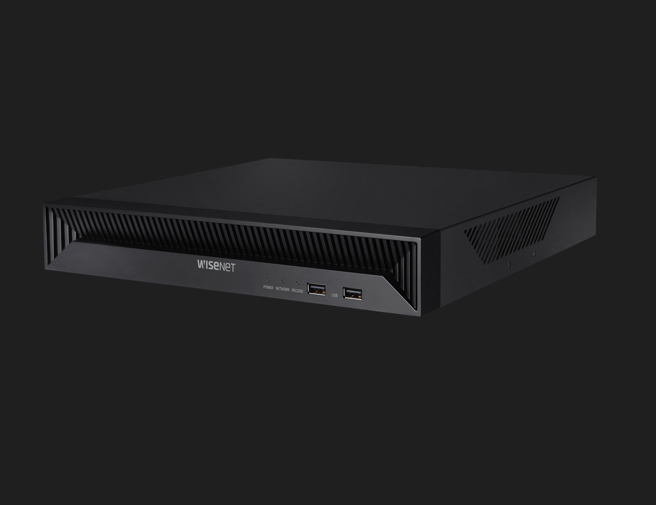

Hanwha - QRN-830S-6TB - 8 CH PoE NVR
Part number:
QRN-830S-6TB
Price:
8 CH PoE NVR
Features:
- Up to 8 channels, 8 megapixel supported
- H.265, H.264, MJPEG codec supported
- 80Mbps network camera recording
- Plug & play with 8 PoE+ ports, 65W budget
- Maximum 1 HDD (up tp 6Tb) supported
- HDMI local monitor with 4K resolution
- P2P service (QR code connect) support for Wisenet mobile / Wisenet Viewer
- Dual track recording, 4K HDMI monitor out
| Display | ||
| Network camera | Inputs | Max. 8CH |
| Resolution | 8MP ~ CIF | |
| Protocols | SUNAPI, ONVIF | |
| Decoding | Local Display | HDMI :3840x2160(30Hz) |
| Multi Screen Display | [Single Monitor] Dynamic layout [Web] 1/ 2H/ 2V/ 3V/ 4/ 6/ 8/ 9 | |
| Resolution | [Local Monitor] 8M(60fps), 1080p(240fps), 720P(240fps), D1(240fps) | |
| Performance | ||
| Operating System | Embedded | Linux |
| Record | Compression | H.265, H.264, MJPEG |
| Recording Bandwidth | Max. 80Mbps | |
| Resolution | 8MP ~ CIF | |
| Mode | Normal, Dual Stream, Schedule(Continuous/Event), Event (Pre/Post), Bookmark | |
| Event Trigger | Alarm Input, Video Loss, Camera Event(Sensor, MD, Video Analytics, Defocus, Audio), Dynamic Event, User Event | |
| Event Action | e-Mail, Event Push, PTZ Preset, Alarm Out, Buzzer, Monitor Out, FTP, SUNAPI Command, Shutdown | |
| Search & Play | Playback Bandwidth | Max. 32Mbps |
| User | Max. 4 Users (Local 1, Remote 3) | |
| Simultaneous playback | Max. 32CH(Local 8CH, Remote 8CH per user) | |
| Fisheye Dewarping | CMS | |
| Mode | Date & Time(Calendar), Event list, Text Search, Smart Search | |
| Resolution | CIF ~ 8MP | |
| Playback Control | Fast/Slow Forward / Backward, Move one step Up / Down | |
| Storage | Supported HDD | Up to 6TB |
| HDD Slot | SATA 1ea(Max. 6TB) | |
| Backup | File backup | BU/Exe/AVI(GUI), JPG/AVI(Network) |
| Function | Multi channel(Up to 8CH) Play, Date-Time/Title display | |
| Network | ||
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP (UDP), RTP (TCP), RTSP, NTP, HTTP, DHCP (Server, Client), SMTP, ICMP, IGMP, ARP, DNS, DDNS, uPnP, HTTPS, SNMP, ONVIF (Profile-S), SUNAPI(Server, Client) | |
| DDNS | Hanwha DDNS | |
| Transmission Bandwidth | Max. 80Mbps | |
| Audio | Input/Output | 8 CH(network) |
| Compression | G.711, G.726, AAC(16/48KHz) | |
| Audio Communication | 2-Way | |
| Max Remote Users | Search(3), Live Unicast(10), Multicast(20) | |
| Security | IP address filtering, User access Log, 802.1x, Encryption Device certificate(Hanwha Techwin Root CA), Signed firmware | |
| Web viewer | Supported OS | Windows 10, macOS 11 |
| Supported browser | Google Chrome, Microsoft Edge, Mac Safari |
| Viewer Software | WAVE, SSM, Webviewer, Smart Viewer, Wisenet Viewer, Wisenet mobile Support CGI(SUNAPI) for integration to 3'rd party VMS | |
| Functions | ||
| Camera Setup | Register | Auto, Manual |
| Item | IP address, Add profile edit, Bitrate, Compression, GOP, Quality, Camera MD setup (4, 8 point polygon) Camera video setup (Simple focus, Brightness/Contrast, Flip/Mirror, IRIS, WDR, D&N, SSNR, Shutter, SSDR, DIS), Fisheye Dewarping Mode, Hallway View Setup, Camera Webpage | |
| PTZ | Control | Via GUI, Webviewer |
| Preset | 300 Presets | |
| Smart phone | Support Model | iOS, Android |
| Protocol Support | RTP, RTSP, HTTP, CGI(SUNAPI) | |
| Control | Live: Multi-Profile Support, Multi Channel Playback | |
| Max. Remote Users | Search(3), Live Unicast(10) | |
| Redundancy | Failover | N+1 |
| ARB | Support | |
| Easy configuration | P2P(QR code) | |

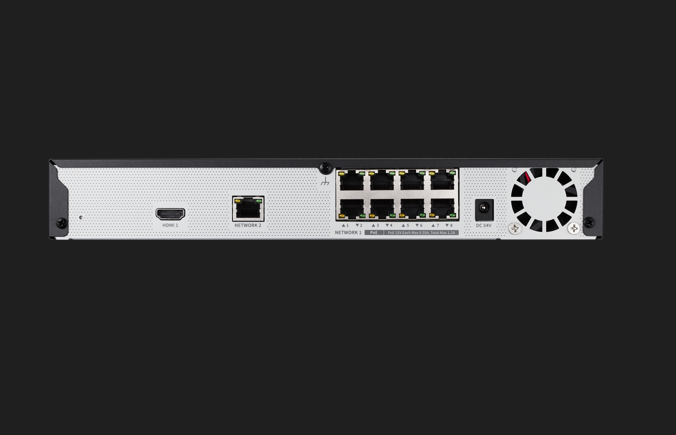

| Interface | ||
| Front | Indicator | Power, Record, Network |
| Storage | OK | |
| Reset | Support | |
| HDMI | 1EA | |
| Ethernet | PoE RJ-45 8EA (LAN, 10/100), RJ-45 1ea (LAN/WAN 1Gbps) | |
| USB | 2EA(Front 2 x USB 2.0) | |
| Power inlet | DC Adaptor | |
| System | ||
| Log | Log List | Max. 100,000 (System Log, Event Log each) |
| System Control | Mouse, Keyboard, Web | |
| Language | English, French, German, Italian, Spanish, Russian, Turkish, Polish, Dutch, Czech, Portuguese, Danish, Rumanian, Serbian, Croatian, Hungarian, Greek, Norwegian, Finnish, Korean, Chinese, Japanese, Thai, Vietnamese | |
| Environmental | ||
| Operating Temperature | 0°C to +40°C(32℉ to 104℉) | |
| Operating Humidity | 20% ~ 85% RH | |
| Electrical | ||
| Power Input | 54VDC / 1.55A | |
| Power Consumption | Max 84W (287 BTU with 1HDD, PoE ON) | |
| PoE Budget | 65W | |
| Mechanical | ||
| Color / Material | Black / Metal | |
| Dimension (WxHxD) | 300 x 47.6 x 238.9 mm (11.8 x 1.9 x 9.4 inch) | |
| Weight | 1.32Kg (2.91 lb) |
