Hanwha - SBP-300BW - Wall Mount Base White
Part number:
SBP-300BW
Price:

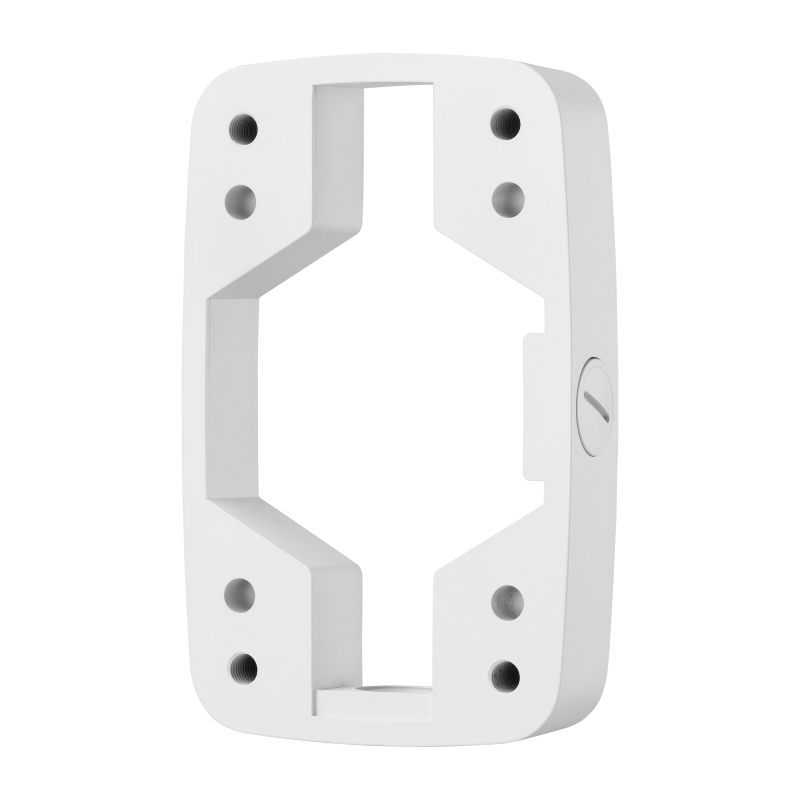

The Hanwha SBP-300BW is a commercial-grade aluminum wall mount back box designed to act as a structural base for Hanwha's heavy-duty wall mount arms. It provides the essential depth needed for clean cable management, surface-run conduit routing, and structural reinforcement on tough surfaces like block walls or tilt-up concrete.
| Material | High-durability Aluminum |
| Finish | White (Powder Coated, matching Hanwha standard RAL9003) |
| Dimensions | 7.52" × 4.76" × 1.38" (190.9 × 120.0 × 35.0 mm) |
| Weight | 1.08 lbs (490 g) |
| Environmental Rating | Outdoor-rated (Operating temp: -58°F to 140°F / 0 to 100% RH) |
| Compatibility | Mates with Hanwha wall mount arms: SBP-300WMW & SBP-300WMW1 |
Name
Description
Size
Downloads
File
Manual
0.4mb
File
Compliant Product List
0.5mb
