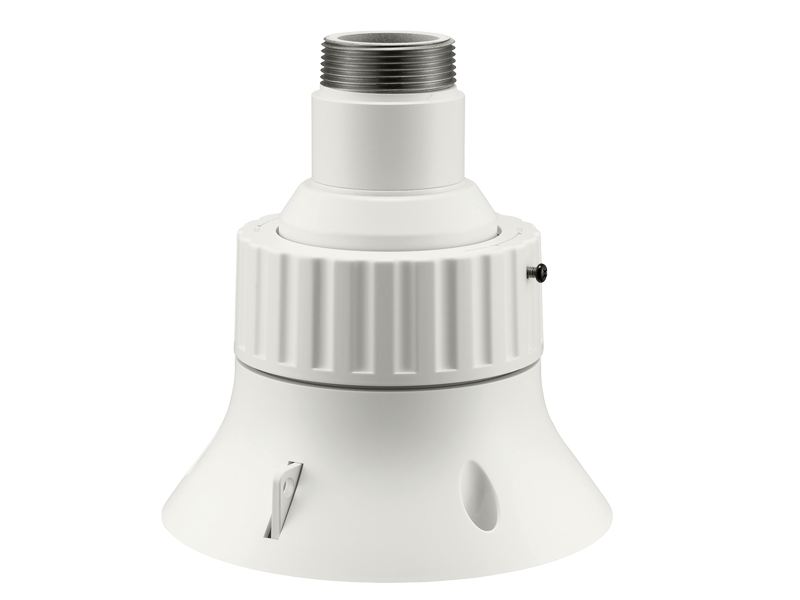

Hanwha - SBP-300HF - Built-In SFP Install Base for SNP-6320H / 5430H PTZ Cameras
Part number:
SBP-300HF
Price:
RJ-45 to Fiber mounting accessory for PTZ
Compatible with:
SNP-6320H
SNP-5430H
Features:
- Aluminum
- LC SFP port type
- 100Mbps Ethernet speed (Default speed : 1000Mbps)
- IEEE 802.3u, IEEE 802.3z support
- Audio input/output, 3.5mm type
- 24V AC, IP66, IK10, -50°C to +55°C
- Mount screw size : PF 1 1/2"
Compatible Model
| Camera List | SNP-6320H/5430H |
External Connection
| Alarm I/O | Input 4ea / Output 2ea |
| Remote Control Interface | RS-485/422 |
| Audio | Input / Output, 3.5mm type |
| CVBS | BNC type, For installation |
| Power Line | 24V AC, 2-wire |
Optical Characteristic
| Support SFP Voltage | 3.3V typical |
| Support SFP Current | Max. 300mA |
| Support SFP Cage | Standard mini-SFP cage (For 6.5mm pitch SFP) |
| Support SFP Port Type | LC type |
| Required SFP Speed | 1250Mbps (For 1000Mbps ethernet), 155Mbps (For 100Mbps ethernet) |
| Required SFP's BER (Bit Error Rate) | Max. 10-12 |
| Transmission Method (Optical) | Mode depends on SFP module |
| Optical Mode (Long / Short Wave) | Mode depends on SFP module |
| Cable Insertion Loss (dB) | Mode depends on SFP module |
