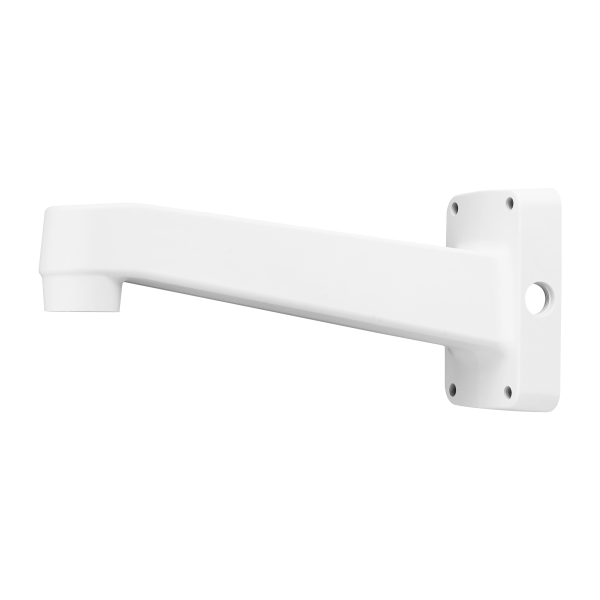

Hanwha - SBP-390WMW2 - Wall Mount Arm (White)
Part number:
SBP-390WMW2
Price:
Wall Mount Arm (White).
Features:
- Weight : 1.79Kg (3.95 lb)
- Material : Aluminum
- Color : White
- Dimensions (WxHxD) : 115.0 x 183.0 x 417.3mm(4.5" x 7.2" x 16.4")
| SBP-390WM1 | SBP-390WM2 | SBP-390WMW2 | |
| Materials | Aluminum | Aluminum | Aluminum |
| Dimensions (WxHxD) | 126.0 x 194.3 x 417.7mm (5.0" x 7.6" x 16.4") | 115.0 x 183.0 x 417.3mm (4.5" x 7.2" x 16.4") | 115.0 x 183.0 x 417.3mm (4.5" x 7.2" x 16.4") |
| Pipe Thread | 1½" PT TAP | 1½" PT TAP | 1½" PT TAP |
| Weight | 1.65Kg (3.64 lb) | 1.79Kg (3.95 lb) | 1.79Kg (3.95 lb) |
| Color | Ivory | Ivory | White |
| Applicable Model | SBP-317HM SBP-329HM SBP-276HM SBP-300HM6 SBP-201HM PNM-9080VQ PNM-9081VQ PNM-7000VD PNM-9030V PNM-9000VQ PNM-9020V PNM-9320VQP HCM-9020VQ | SBP-317HM SBP-329HM SBP-276HM SBP-300HM6 SBP-201HM SBP-300PM SBP-300KM PNM-9080VQ PNM-9081VQ PNM-7000VD PNM-9030V PNM-9000VQ PNM-9020V PNM-9320VQP HCM-9020VQ | SBP-317HMW SBP-329HMW SBP-276HMW SBP-300HMW7 SBP-201HMW SBP-300PMW SBP-300KMW PNM-9084QZ PNM-9084RQZ, PNM-9085RQZ PNM-9030V PNM-9000VQ SBP-187HMW, SBP-167HMW |
