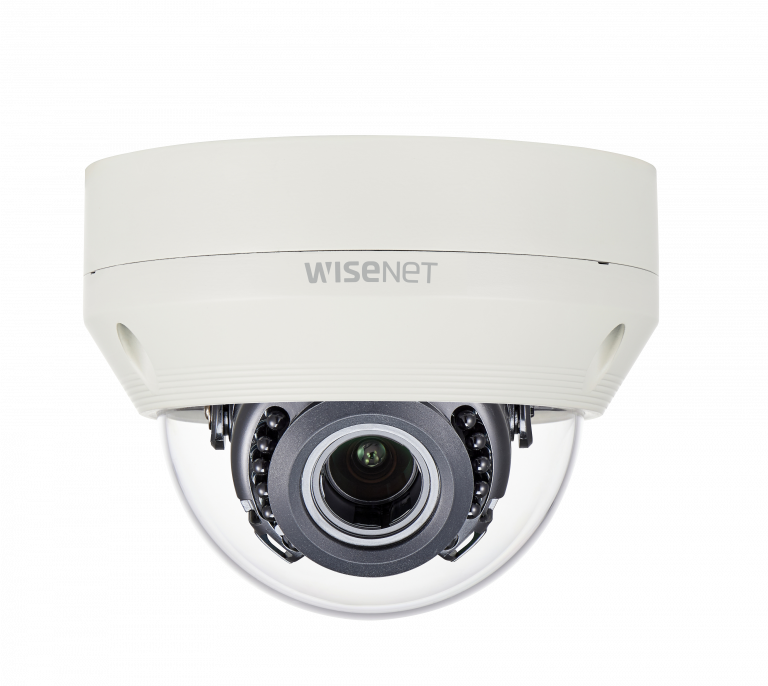

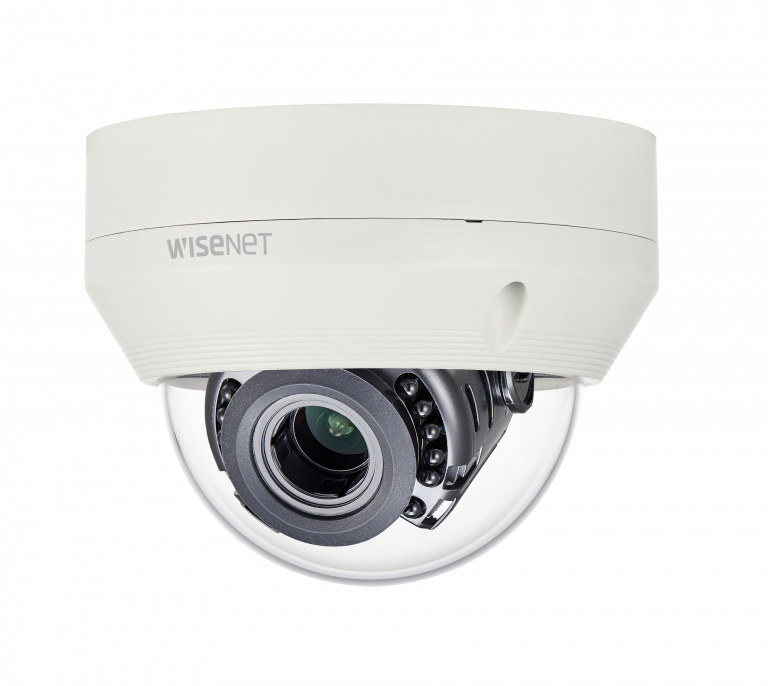

Hanwha - SCV-6085R - AHD IR Vandal Dome
Part number:
SCV-6085R
Price:
WiseNet HD+ IR outdoor vandal-resistant dome cameras allow users to upgrade their surveillance systems to HD using legacy coax cabling without the costly process of ripping and replacing coax with Ethernet cabling. The new WiseNet HD+ cameras offer a variety of high-performance features including Day/Night operation, motion detection, defog, IR illuminators and more depending on model. Models include box, indoor dome, outdoor vandal dome, and outdoor bullet. Setup functions are easily controlled by OSD with the built-in joystick or control over coaxial cable with WiseNet HD+ DVRs. Low power consumption, compact form factors, and transmission up to 1,640 feet further enhance the lineup.
Features :
- Full HD (1,920 x 1,080 30fps) resolution
- 0.11Lux (Color), 0Lux (B/W : IR LED on)
- 3.2 ~ 10mm (3.1x) varifocal lens
- Day & Night (ICR), Motion detection
- IR viewable length 30m (98.42ft)
- Transmission distance max. 500m
| Video | |
| Imaging Device | 1/2.8" CMOS |
| Resolution | 1920x1080 |
| Max. Framerate | 30fps/25fps(60Hz/50Hz) |
| Min. Illumination | Color: 0.11Lux (F1.6, 1/30sec) BW: 0Lux(IR LED on) |
| Video Out | BNC(AHD 2MP,CVBS) |
| Video Transmission Distance | 500m(5C2V Coaxial Cable) |
| Lens | |
| Focal Length (Zoom Ratio) | 3.2~10mm(3.1x) varifocal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H : 110.2°(Wide) ~ 32°(Tele) V : 55.4°(Wide) ~ 18°(Tele) D : 128.4°(Wide) ~ 36.6°(Tele) |
| Min. Object Distance | 0.5m(1.64ft) |
| Focus Control | Manual |
| Lens Type | DC auto iris |
| Pan / Tilt / Rotate | |
| Pan / Tilt / Rotate Range | 0° ~ 350° / 0° ~ 67° / 0° ~ 355° |
| Operational | |
| Camera Title | Displayed up to 15 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, HLC, DWDR |
| Digital Noise Reduction | SSNRⅣ |
| Defog | Support |
| Motion Detection | 4ea |
| Privacy Masking | 8ea, rectangular zones |
| Gain Control | Low / Middle / High / Very High |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| Electronic Shutter Speed | 1 ~ 1/12,000sec |
| Video Rotation | H-REV / V-REV / HV-REV |
| Analytics | Motion detection |
| Alarm I/O | Output 1ea |
| Alarm Triggers | Analytics |
| Alarm Events | Alarm output |
| IR Viewable Length | 30m(98.42ft) |
| Coaxial Protocol | ACP(AHD Coax Protocol) CVBS: Pelco-C(Coaxitron) |
| Environmental & Electrical |
| Operating Temperature / Humidity | -30°C ~ +55°C (+14°F ~ +131°F) / Less than 90% RH * Start up should be done at above -10°C |
| Certification | IP66, IK10 |
| Input Voltage | 24V AC24V~ 50/60Hz, 12V DC |
| Power Consumption | AC 24V / 0.45A DC 12V / 0.46A |
| Mechanical | |
| Color / Material | Ivory / Aluminum |
| Product Dimensions / Weight | Ø137 x 106.1mm (Ø5.39" x 4.18"), 715g |
| Hanging Mount (Dome) | SBP-301HM5 |
| DORI (EN62676-4 standard) | |
| Detect (25PPM/ 8PPF) | Wide: 26.8m(87.89ft) / Tele: 133.9m(439.36ft) |
| Observe (63PPM/ 19PPF) | Wide: 10.7m(35.16ft) / Tele: 53.6m(175.74ft) |
| Recognize (125PPM/ 38PPF) | Wide: 5.4m(17.58ft) / Tele: 26.8m(87.87ft) |
| Identify (250PPM/ 76PPF) | Wide: 2.7m(8.79ft) / Tele: 13.4m(43.94ft) |
