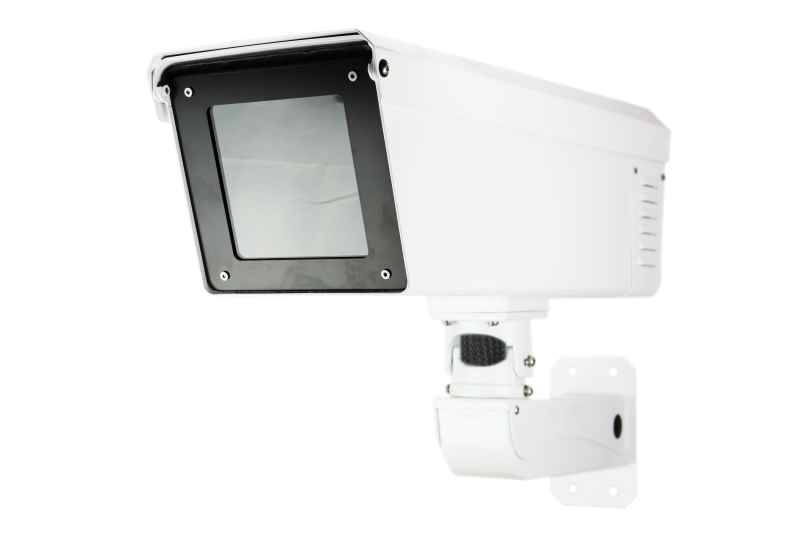

8K Camera Housing and Stainless Steel wall mount arm. Compatible with the TNB-9000 camera. Active heating & cooling.
- Supports the TNB-9000 and compatible Canon EF mount lenses for full 8K resolution support
- Active cooling/heating
- Dustproof, waterproof design
- Anti-reflective, low-iron window with 18° tilt for high optical performance
- Aluminum construction with white powder coat finish
|
Description |
|
Outdoor Housing for TNB-9000 & compatible Canon EF Mount lenses |
|
|||
|
|
|
|
|
|
|
|
|
|
|
Features |
|
8K support, active cooling/heating, dustproof, waterproof, IP66, anti- |
|
|
|
|
|
|
reflective, low-iron glass window with 18° tilt for high optical performance |
|
||
|
|
|
|
|
|
||
|
|
|
Material |
|
Exterior: Aluminium w/ white powder coated finish |
|
|
|
|
|
|
Interior: Fully insulated black foam & foil |
|
||
|
|
|
|
|
|
||
|
|
|
Operating Temperature |
-4°F ~ +140°F (-20°C ~ +60°C) |
|
||
|
|
|
|
|
|
|
|
|
|
|
Humidity |
|
10-100% RH (condensing) |
|
|
|
|
|
|
|
|
|
|
|
|
|
Environmental Certification |
IP66, NEMA 4X |
|
||
|
|
|
|
|
|
|
|
|
|
|
Color |
|
White |
|
|
|
|
|
|
|
|
|
|
|
|
|
Input Power |
|
90～305VAC / 127 ~ 431VDC power supply included, 12vDC with pass |
|
|
|
|
|
|
through to camera, mounts in arm |
|
||
|
|
|
|
|
|
||
|
|
|
|
Cooling |
400 BTU 170W Solid State Cooler, Independently Thermostatically |
|
|
|
|
|
|
Controlled |
|
||
|
|
|
Power |
|
|
||
|
|
|
Heater |
33W, Independently Thermostatically Controlled |
|
||
|
|
|
Consumption |
|
|||
|
|
|
|
|
|
|
|
|
|
|
|
Fan |
40CFM 8W IP66 sealed blower for passive cooling |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Power Supply |
90 ~ 305VAC / 127 ~ 431VDC input, 192W output, IP67 rated, |
|
|
|
|
|
|
provides power for heater, active cooling, blower, camera |
|
||
|
|
|
|
|
|
|
|
|
|
|
Window |
|
5" x 5", 18⁰ tilted Silicate Glass w/ Anti-Reflective Coating |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Outside |
226mm(W) X 210mm(H) X 698mm(D) (8.9" X 8.3" X 27.5") |
|
|
|
|
|
Dimension |
|
|
|
|
|
|
Internal |
152mm(W) X 177mm(H) X 419mm(D) (6" X 7" X 16.5") |
|
|||
|
|
|
|
|
|||
|
|
|
|
Usable |
|
||
|
|
|
|
|
|
|
|
|
|
|
Weight |
|
16.5lbs (7.48kg) housing only, 26.5lbs (12.02kg) with wall mount arm and |
|
|
|
|
|
|
power supply |
|
||
|
|
|
|
|
|
||
|
|
|
|
|
|
|
|
|
|
|
|
|
Stainless Steel Wall mount arm, outdoor power supply, screws, |
|
|
|
|
|
Accessories |
|
cable glands |
||
