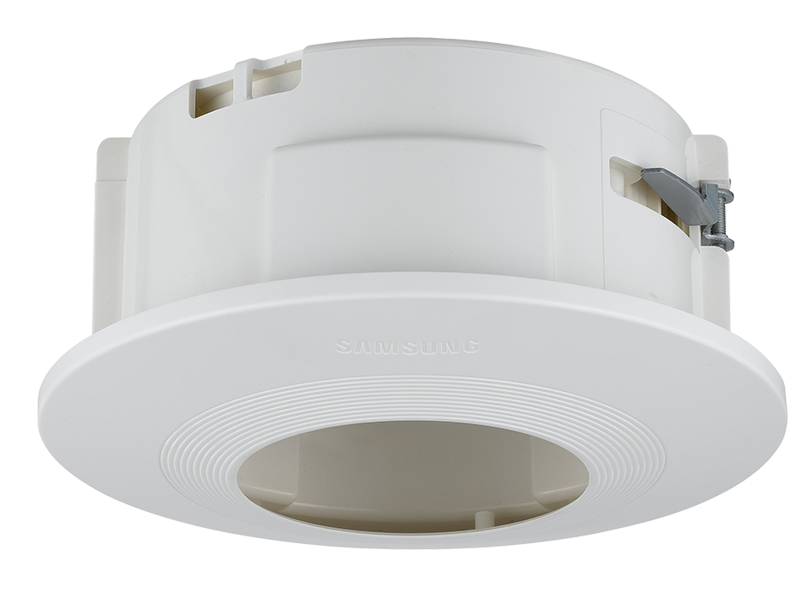

Hanwha - SHD-3000F2 - Flush mount
Part number:
SHD-3000F2
Price:
This low profile polycarbonate mounting solution can be used with the applicable models below: SND-L6083R, SND-L5083R, SCD-5080, SCD-5082, SCD-5083, SCD-5083R, SCD-6083R, QND-7080R, QND-6070R.
| Operating Temperature | -10°C ~ +50°C (+14°F ~ +122°F) |
| Operating Humidity | 0 ~ 90% RH |
| Materials | Body Poly carbonate Bubble N/A |
| Ingress Protection | N/A |
| Vandal Resistance | N/A |
| Vandal Resistance | N/A |
| Dimensions (WxHxD) | External Ø194.0 x 102.2mm (Ø7.64" x 4.02") Internal N/A |
| Weight | 350g (0.77 lb) |
| Input Voltage | N/A |
| Power Consumption | N/A |
| Color | Ivory White |
Name
Description
Size
Downloads
File
In-ceiling Housing Datasheet
0.6mb
File
Hanwha Techwin America - NDAA Compliant Product List
0.8mb
File
PTZ Housing Mounts Specifications
0.7mb
