Hanwha - SHD-3000F3 - Flush mount
Part number:
SHD-3000F3
Price:

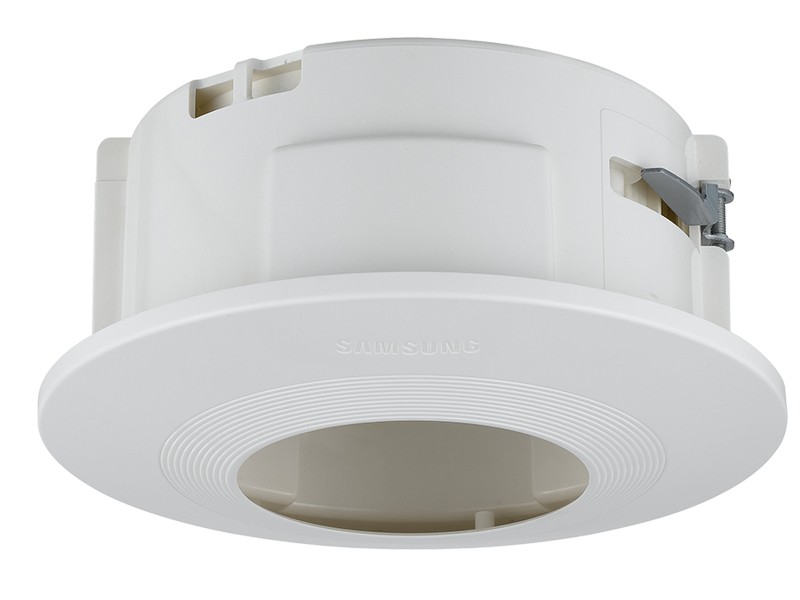

This low profile polycarbonate mounting solution in ivory. Compatible with the camera models below: SNV-L6083R, SNV-L5083R, SCV-5082, SCV-5083, SCV-5083R, SCV-5085, SCV-6083R, SCV-6023R, QNV-7080R, QNV-6070R.
| Operating Temperature | -10°C ~ +50°C (+14°F ~ +122°F) |
| Operating Humidity | 0 ~ 90% RH |
| Materials | Body Poly carbonate Bubble N/A |
| Ingress Protection | N/A |
| Vandal Resistance | N/A |
| Vandal Resistance | N/A |
| Dimensions (WxHxD) | External Ø224.0 x 106.9mm (Ø8.82" x 4.21") Internal N/A |
| Weight | 490g (1.08 lb) |
| Input Voltage | N/A |
| Power Consumption | N/A |
| Color | Ivory White |
