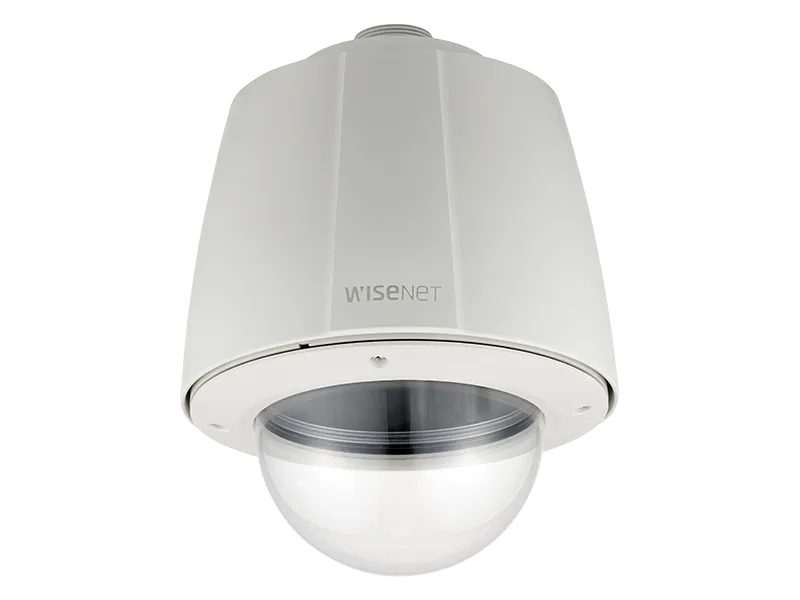

Hanwha - SHP-3701H - PTZ Pendant Housing
Part number:
SHP-3701H
Price:
IK10 vandal and IP66 ingress protected camera housing solution Extended operating temperature range of -58°F to +122°F SHP-3701H is compatible camera models: SCP-3430, SCP-3370, SCP-3250, SCP-2430, SCP-2370, SCP-2330, SCP-2270, SCP-2250, SCP-3371, SCP-2373, SCP-2371, SCP-2273, SCP-2271, SNP-5200, SNP-3371, SNP-3302, SNP-3302, SNP-6321, SNP-6320, SNP-6201, SNP-6200, SNP-5430, SNP-5321, SNP-5320, SNP-5300, SNP-L6233, SNP-L5233.
| Operating Temperature | -50°C ~ +50°C (-58°F ~ +122°F) |
| Operating Humidity | 0 ~ 90% RH |
| Materials | Body Aluminum + Poly carbonate Bubble Poly carbonate |
| Ingress Protection | IP66 |
| Vandal Resistance | IK10 |
| Dimensions (WxHxD) | External Ø250.0 x 319.0mm (Ø9.84" x 12.56") Internal Ø195.0 x 230.0mm (Ø7.68" x 9.06") |
| Weight | 2.9Kg (6.39 lb) |
| Input Voltage | 24V AC |
| Power Consumption | Max. 50W |
| Color | Ivory |
| Applicable Model | SCP-3430/3371/3370 SCP-3250/2430/2373 SCP-2371/2370/2330 SCP-2273/2271/2270/2250 SNP-6321/6320/6201/6200 SNP-5430/5321/5300/5200 SNP-3371/3302 |
Name
Description
Size
Downloads
File
PTZ Housing/Mounts Specifications
0.2mb
File
PTZ Housing Mounts Specifications
0.7mb
File
Peripheral Specifications
0.2mb
File
Hanwha Techwin America - NDAA Compliant Product List 5-2022
0.5mb
