Hanwha - SKY-BR320-0 - Wisenet SKY CMVR
Part number:
SKY-BR320-0
Price:

The Wisenet SKY Cloud Managed Video Recorder (CMVR) stores video and acts as a gateway from your premises to the Wisenet SKY Cloud Data Center where your video can also be stored and managed by the Wisenet SKY Cloud VMS. It provides secure video storage & video streaming, intelligent bandwidth management, and monitoring of cameras.

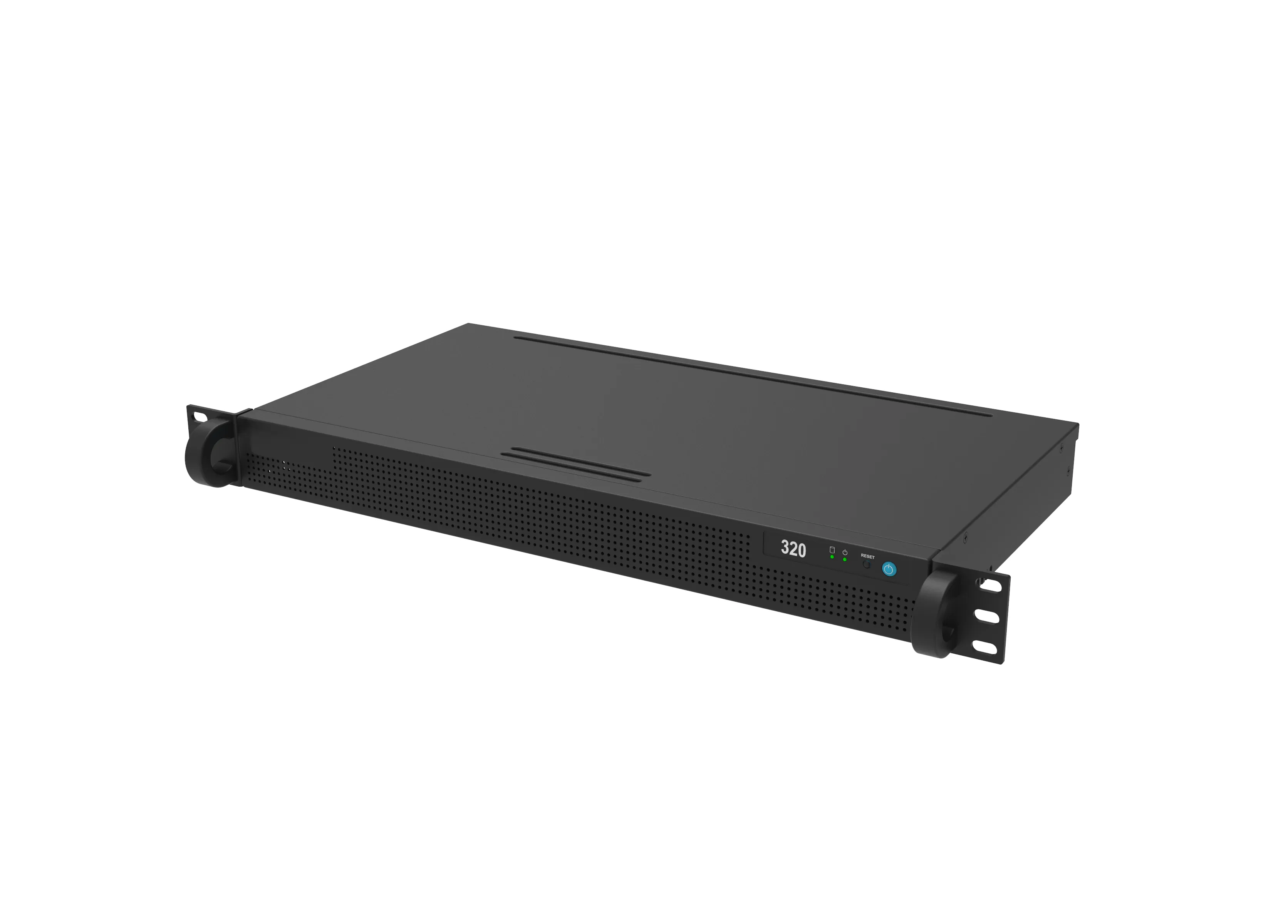

These 1U rack-based CMVRs are designed to fit in standard equipment rack. The rack mount CMVRs are offered in a range of sizes to support larger camera counts and recording duration



Features:

  • Supports up to 30 @ 1MP cameras ~ 25 @ 4MP cameras*
  • Supports up to 10 cloud analytics, with supported license
  • Intelligent Bandwidth Management with local recording up to 20 days
  • Dual gigabit network ports
  • HDMI & Display Port video outputs for local display
  • 1U Rack mount
  • Fully cloud managed
  • Supports motion or continuous recording
  • Front panel indicator lights
  • Supports Wisenet and ONVIF conformant IP cameras
  • Complete encryption of video in transit and at rest



STANDARD SUPPORT (Included)

  • Free of charge with an active subscription
  • No cost replacement with an active subscription
  • 24/7 email and web support
  • Standard phone support
SYSTEM
Maximum Cameras 1MP/ 30
Maximum Cameras 4MP/ 25
Maximum Cloud Analytics/ 10
Hard Disk Drive

4TB 15 days for 15 cameras @ 1MP / 10TB 20 days for 30 cameras @ 1MP

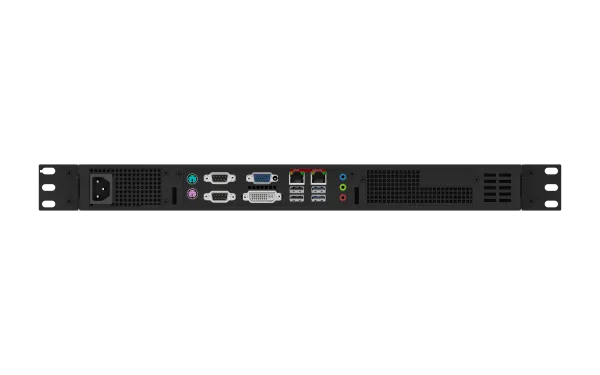

Network portsDual gigabit ethernet RJ-45
Video output1x VGA, 1x DVI / 1x VGA, 1x HDMI, 1x DisplayPort
Indicator LightsPower, disk activity
Operating SystemEmbedded Linux
USB Portsx USB 3.0 (front)
Included accessoriesPower cord, rack mount brackets
Rack Mount BracketsIncluded
MECHANICAL / ELECTRICAL / ENVIRONMENTAL
MechanicalForm FactorRack mount or shelf/tabletop mount
Color / MaterialBlack / Metal
Dimensions1U 16.81" x 9.88" x 1.75" (427mm x 251mm x 45mm)
Weight8.95lb  (4.06kg)    / 9.76lb  (4.42kg)
ElectricalPower SupplyInternal, 65 W / 60 W
Power Input~ 240V AC

Environmental

Operating Temperature

32°F to 95°F  (0°C to 35°C)
Operating Humidity0% to 70% RH, non-condensing
CertificationFCC, UL, PSE, CE, CCC(S&E), REACH, RoHS, C-Tick, NDAA
Name
Description
Size
Downloads
File
Datasheet
1.1mb
File
Hanwha Techwin America - NDAA Compliant Product List
0.4mb
File
Quick Start Guide
1.5mb
File
A&E Document
0.8mb
