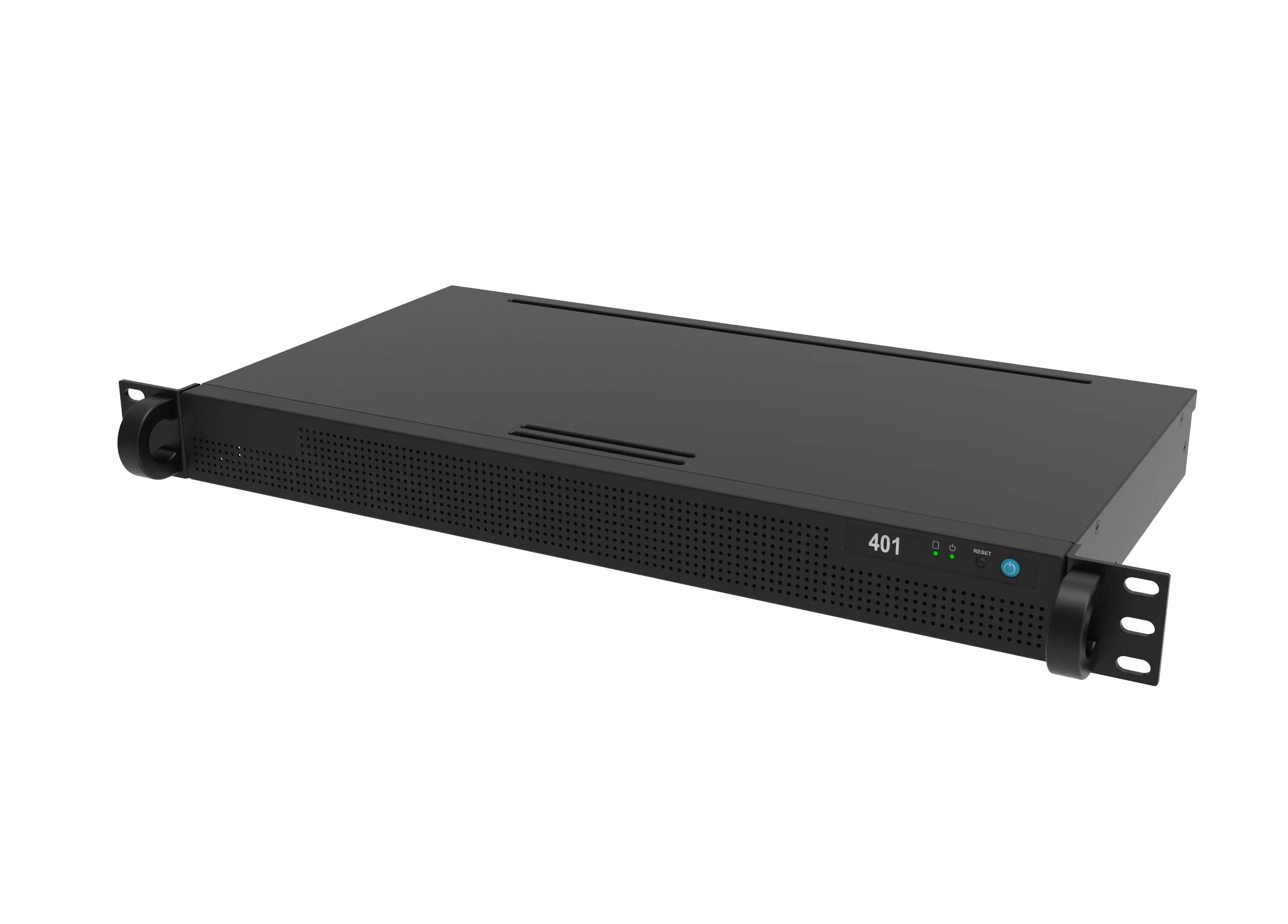

Hanwha - SKY-SU401-0 - Wisenet SKY Bridge
Part number:
SKY-SU401-0
Price:
- Location Setup Fee Bridge 401 (Rack Form Factor)
- 1MP: 42CH, 4MP: 35CH, Analytics: 10CH, up to 2 LPR cameras, up to 2 days of local video buffering, 1TB HDD, VGA, HDMI, DP
- This product is subject to the Wisenet SKY agreement.
| Maximum Cameras @ 1MP | 15 / 30 / 50 |
| Maximum Cameras @ 4MP | 12 / 25 / 35 |
| Maximum Cloud Analytics | 5 / 10 / 10 |
| Hard Disk Drive Network ports | 1TB, 800Gb usable for video storage, spinning hard disk |
| Video output | Dual gigabit ethernet RJ-45 |
| 1x VGA, 1x DVI / 1x VGA, 1x HDMI, 1x DisplayPort (401 / 501) | |
| Indicator Lights | Power, Disk activity |
| USB ports | 2x USB 3.0 |
| Operating System | Embedded Linux |
| Included accessories | Power cord, rack mount brackets |
| Rack Mount Brackets | Included |
| Ordering SKU | EN-SU301-0 / EN-SU401-0 / EN-SU501-0 |
MECHANICAL / ELECTRICAL / ENVIRONMENTAL
| Mechanical | Form Factor | Rack mount or shelf / tabletop mount |
| Color / Material | Black / Metal | |
| Dimensions | 1U 16.81" x 9.88" x 1.75" (427mm x 251mm x 45mm) | |
| Weight | 7.64lb (3.47kg) / 8.62lb (3.91kg) / 8.6lb (3.9kg) | |
| Electrical | Power Supply | Internal, 65 W / 50 W / 120 W |
| Power Input | 100 ~ 240V AC | |
| Environmental | Operating Temperature | 32°F to 95°F (0°C to 35°C) |
| Operating Humidity | 0% to 70% RH, non-condensing | |
| Certification | FCC, UL, PSE, CE, CCC(S&E), REACH, RoHS, C-Tick, NDAA | |
Name
Description
Size
Downloads
File
Datasheet
1.3mb
File
Hanwha Techwin America - NDAA Compliant Product List
0.8mb
File
A&E Specifications
0.8mb
