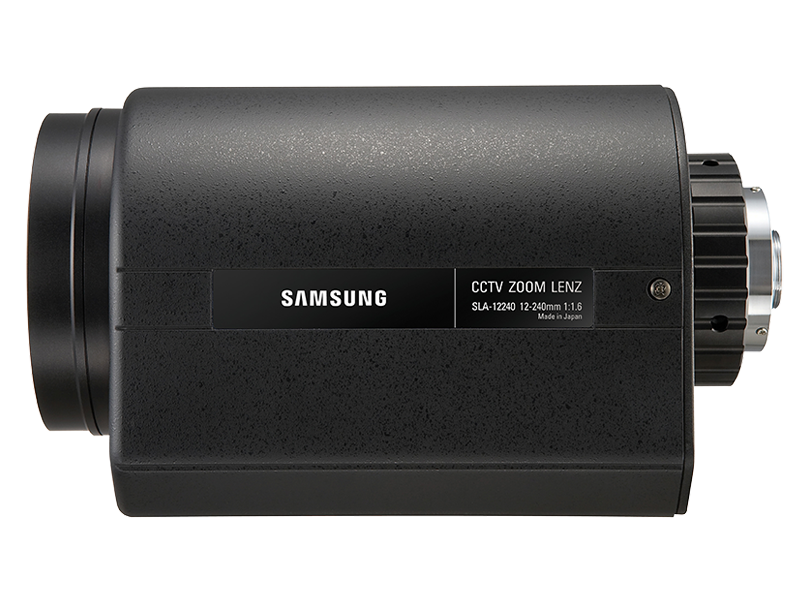

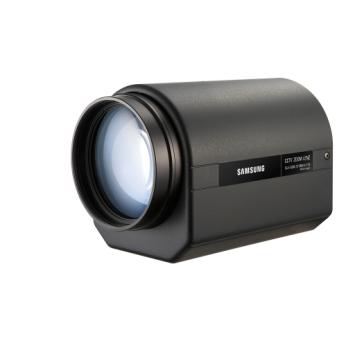

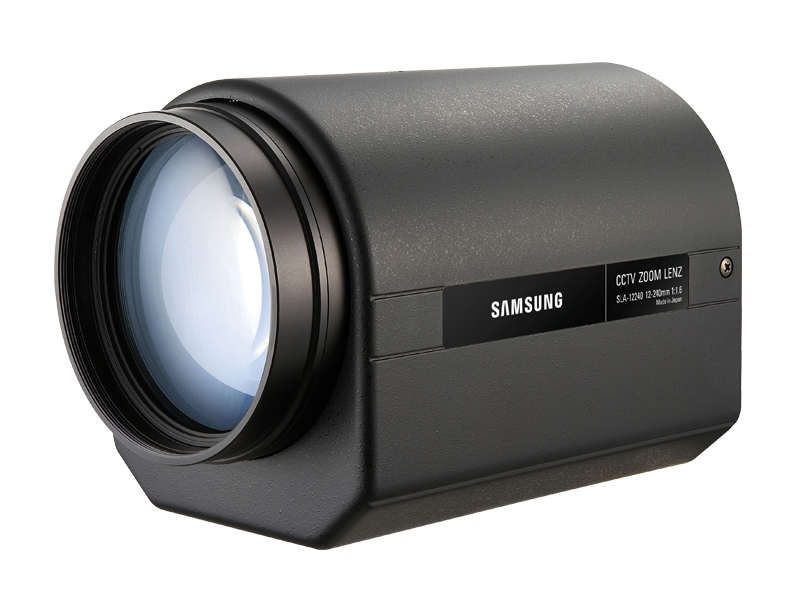

Samsung - SLA-12240 - 1/2" C-mount Motorized 20x
1/2" C-mount Motorized 20x
- Built-in 50mm lens with micro bolometer sensor
- Auto iris
- 20x optical zoom,12 ~240mm / 0.47" ~9.45"
Part number:
SLA-12240
Price:
|
|
SLA-12240 |
|
SLA-880 |
||
|
CCD |
|
1/2" |
1/2" |
|
1/3" |
|
|
|
|
|
|
|
|
Resolution |
|
1.3Megapixel |
520K pixel |
|
|
|
|
|
|
|
|
|
|
Iris Type |
|
Auto iris (DC) |
Auto iris (Video) |
|
|
|
|
|
|
|
|
|
|
Object Distance |
|
2.8m ~ ∞ |
0.2m ~ ∞ |
|
|
|
|
|
|
|
|
|
|
Zoom Ratio |
|
20x |
10x |
|
|
|
|
|
|
|
|
|
|
Mount |
|
C-mount |
C-mount |
|
|
|
|
|
|
|
||
|
Focal Length |
|
12 ~ 240mm (0.47" ~ 9.45") |
8 ~ 80mm (0.31" ~ 3.15") |
||
|
|
|
|
|
|
|
|
Max. Aperture Ratio |
F1.6 |
F1.2 |
|
|
|
|
|
|
|
|
|
|
|
|
Diagonal |
38.9° ~ 1.9° |
54.3° ~ 5.8° |
|
41.3° ~ 4.4° |
|
Angle |
|
|
|
|
|
|
Horizontal |
30.8° ~ 1.6° |
44.0° ~ 4.7° |
|
33.3° ~ 3.5° |
|
|
of View |
|
||||
|
|
|
|
|
|
|
|
Vertical |
23° ~ 1.2° |
33.3° ~ 3.5° |
|
25° ~ 2.6° |
|
|
|
|
||||
|
|
|
|
|
|
|
|
|
Iris |
F1.6 ~ F 720C |
F1.2 ~ F 560C |
||
