SLA-2812DN
- F1.3 DC type auto iris
- Varifocal 2.8 ~ 12mm / 0.11" ~ 0.47"
Part number:
SLA-2812DN
Price:

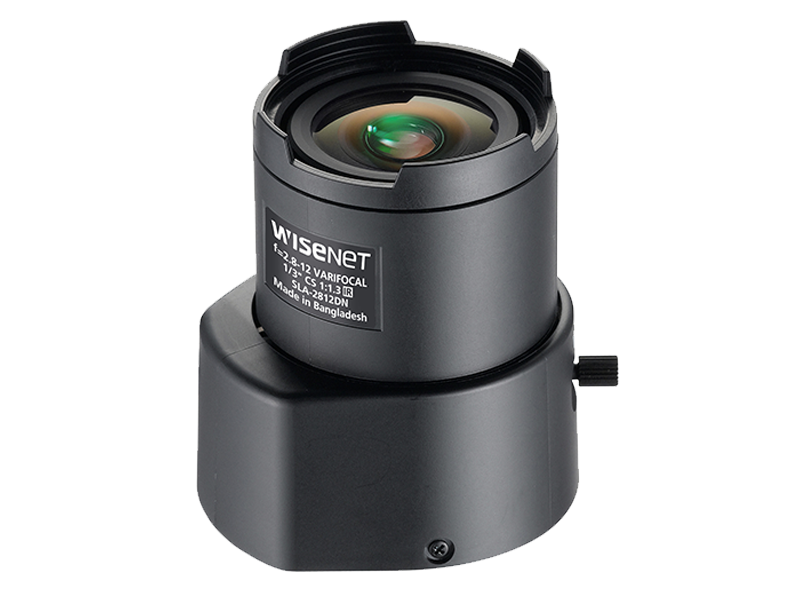

The SLA-2812DN CS-mount Varifocal Lens has a focal length of 2.8 ~ 12mm. The F1.3 DC type auto iris feature is produces consistent video signals and adjusts the camera to changing light levels. Focus and zoom are manually controlled.
| Model | SLA-2812DN |
| Sensor Size | 1/3” |
| Focal Length | 2.8~12mm |
| Max. Aperture Ratio | 0.000709490740740741 |
| Operation | Iris: F1.3~360 Focus: 0.3m ~ ∞ Zoom: 4.2X |
| Angle of View | Diagonal: 133°~29.7° Horizontal: 102.2°~23.8° Vertical: 74.2°~17.8° |
| Iris Type | DC |
| Effective Lens Aperture | Front: Ø23.0mm(Ø0.91”) Rear: Ø7.2mm(Ø0.28”) |
| Back Focal Length | 20.2mm~ 8.1mm(0.8” ~ 0.32” |
| Flange Back Length | 12.5mm(0.49”) |
| Mount | CS-Mount |
| Dimension (W x H x D) | 37.5mm x 48mm x 56mm (1.48” x 1.89” x 2.2”) |
| Weight | 71g(0.16lb) |
