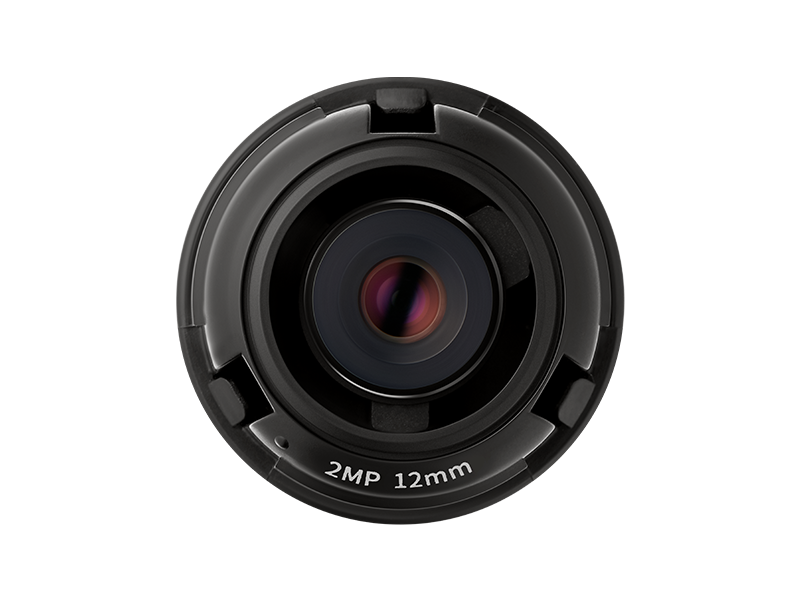

Hanwha - SLA-2M1200P - PNM-9320VQP / PNM-9321VQP Lens module
Part number:
SLA-2M1200P
Price:
1/2.8" 2MP CMOS with a 12.0mm fixed focal lens, FoV: H: 26.3˚, V: 14.9˚, for the PNM-9320VQP / PNM-9321VQP
Key Features:
• 0.055Lux@F2.0 Color, B/W (2MP lenses)
• 0.16Lux@F1.6 Color, B/W (5MP lenses)
• Selectable lens options:
- 2.4 /2.8 / 3.6 / 6.0 / 12.0mm fixed lens (2MP)
- 3.7 / 4.6 / 7.0mm fixed lens (5MP)
Videos
| Imaging Device | 1/2.8" 2M CMOS |
| Total Pixels | 1945(H) x 1109(V) 2.16M |
| Effective Pixels | 1945(H) x 1097(V) 2.13M |
| Scanning System | Progressive Scan |
| Min. Illumination | Color : 0.055Lux (F2.0, 1/30sec, 30IRE) B/W : 0.055Lux (F2.0, 1/30sec, 30IRE) |
| S / N Ratio | 50dB |
| Wide Dynamic Range | 150dB |
| Day & Night | Electrical |
LENS
| Focal Length (Zoom Ratio) | 12mm |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H : 26.3˚ V : 14.9˚ D : 30.0˚ |
| Lens Type | Fixed focal |
| Mount Type | M12 Lens module with main unit |
PAN / TILT / ROTATE
| Pan / Tilt / Rotate Range | -90˚~+90˚ / +10~+97˚ / -180˚~+180˚ |
MECHANICAL
| Color / Material | Black / Plastic |
| Dimension (W x H x D) | Ø35.5 x 35.9 mm (Ø 1.39" x 1.41") |
| Weight | 30g (0.07 lb) |
