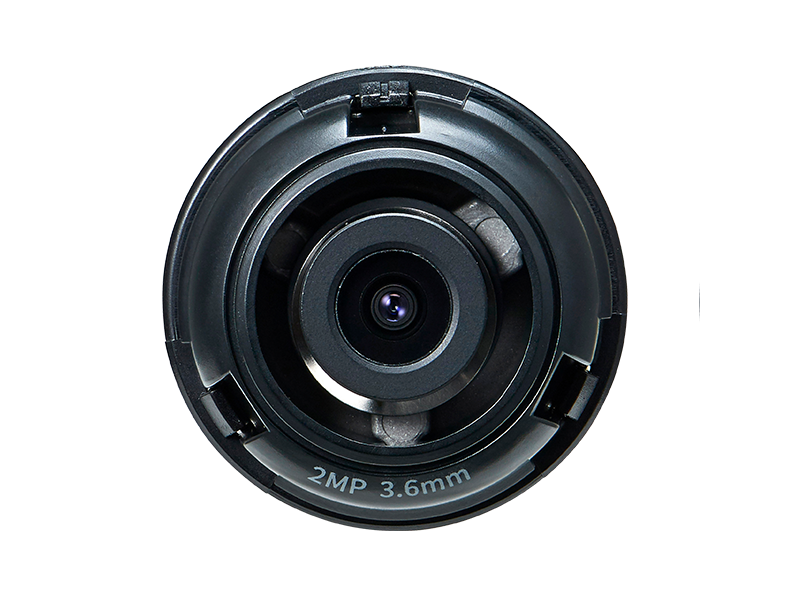

SLA-2M3600D
1/2.8" 2M CMOS with a 3.6mm fixed focal lens, FoV: H: 94.8˚, V: 49.3˚
- Compatible with PNM-7000VD
Part number:
SLA-2M3600D
Price:
VIDEO
| Imaging Device | 1/2.8" 2M CMOS |
| Total Pixels | 1,945(H) x 1,109(V) 2.16M |
| Effective Pixels | 1,945(H) x 1,097(V) 2.13M |
| Scanning System | Progressive Scan |
| Min. Illumination | Color : 0.055Lux (F2.0) B/W : 0.055Lux (F2.0) |
| S / N Ratio | 50dB |
| Wide Dynamic Range | 150dB |
| Day & Night | Electrical |
LENS
| Focal Length (Zoom Ratio) | 3.6mm |
| Max. Aperture Ratio | F2.0 |
| Angular Field of View | H : 94.8˚, V : 49.3˚, D : 114.3˚ |
| Lens Type | Fixed focal |
PAN / TILT / ROTATE
| Pan / Tilt / Rotate Range | -176˚~+176˚ / 0˚~54˚ / -90˚~+90˚ |
MECHANICAL
| Color / Material | Black / Plastic |
| Dimension (W x H x D) | Ø35.5 x 27.9mm (1.4" x 1.1") |
| Weight | 27g (0.06 lb) |
