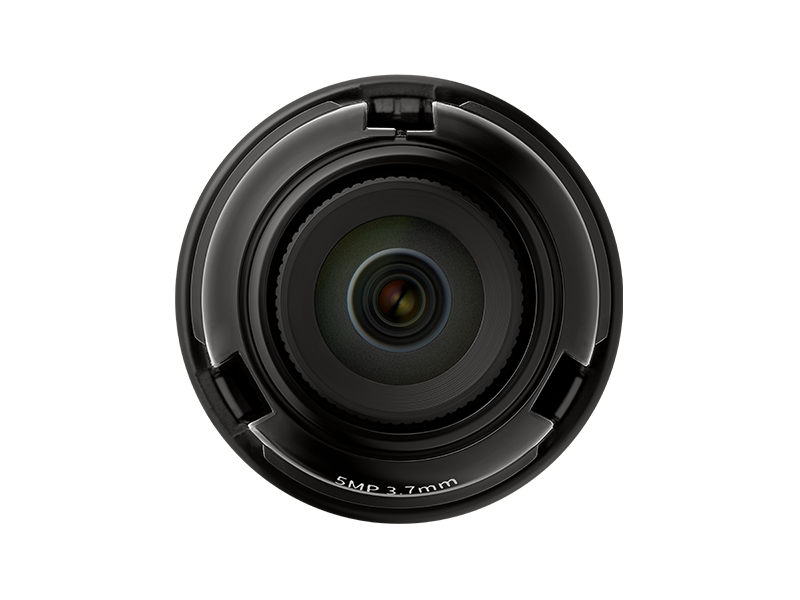

Hanwha - SLA-5M3700D - PNM-9000VD Lens module
Part number:
SLA-5M3700D
Price:
1/1.8" 5MP CMOS with a 3.7mm fixed focal lens, FoV: H: 97.5˚, V: 71.9˚ for the PNM-9000VD
Key Features:
- 0.16Lux@F1.6 Color, B/W (5MP lenses)
- Selectable lens options: 3.7 / 4.6 / 7.0mm fixed lens (5MP)
| Imaging Device | 1/1.8" 5MP CMOS |
| Effective Pixels | 2616(H)x1976(V) |
| Min. Illumination | Color : 0.16Lux(F1.6, 1/30sec, 30IRE) B/W : 0.16Lux(F1.6, 1/30sec, 30IRE) |
| Focal Length (Zoom Ratio) | 3.7mm fixed focal |
| Max. Aperture Ratio | F1.6 |
| Angular Field of View | H:97.5°, V:71.9°, D:126.2° |
| Lens Type | Fixed focal |
| Pan / Tilt / Rotate Range | -90°~+90° / +36~+73° / -180°~+180° |
| Wide Dynamic Range | 120dB |
| Day & Night | Auto(Elctrical) |
| Color / Material | Black / Plastic |
| Product dimensions / weight | Ø35.5x35.9mm(1.40x1.41") / 35g(0.08 lb) |
